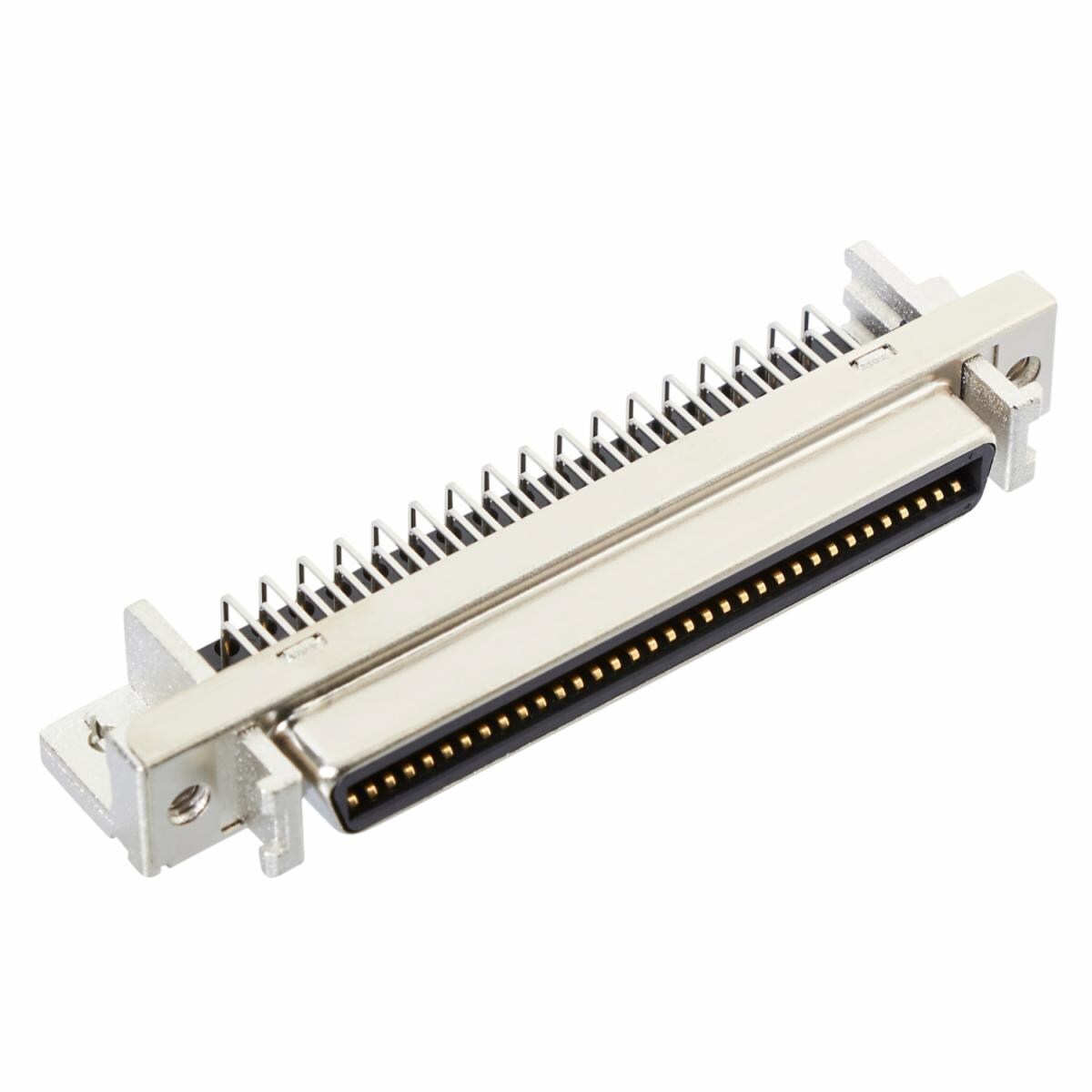

3M™ Mini Delta Ribbon (MDR) 102XX-52XX 102 Series
- 3M ID 7100007368
Details
Highlights
- Wiper-on-wiper contact for reliable repetitive plugging
- Rugged die cast metal case construction
- Screw lock down for reliable PCB retention
- Interface latch design for connection stability
- IEEE 1284C Interface as a 36 contact connector
- Contacts: 14, 20, 26, 36, 40, 50, 68, 80 and 100
- See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
- For more information refer to Data Sheet TS0531 (TS-0531)
3M™ Mini Delta Ribbon (MDR) 102XX-52XX 102 Series, MDR Boardmount Receptacle, Right angle type is the industry standard for half-pitch I / O connectors widely used in various electronic devices such as internal and external computers, OA, FA, ME as a system for connecting devices with 1.27 mm pitch.
Specifications
| Application | Connection Stability, EMI Shielding, High-density Mounting, Repetitive Mating & Unmating |
| Brands | 3M™ |
| Connector Style | Receptacle |
| Contact Base Material | Copper Alloy |
| Contact Underplating Material | Nickel |
| Contact Underplating Thickness (Metric) | 1.27 μm |
| Current Rating | 1.0 |
| Insulation Material | Glass Filled Polyester (PBT) |
| Markings | 3M Logo and Part Number |
| Mating Contact Finish Material | Gold |
| Mating Contact Finish Thickness (Metric) | 0.2 µm |
| Maximum Operating Temperature (Celsius) | 85 ℃ |
| Minimum Operating Temperature (Celsius) | -55 ℃ |
| Mounting Type | Boardmount |
| Number of Contact Rows | 2 |
| Number of Contacts | 68 |
| PCB Mounting Angle | Right Angle |
| PCB Mounting Style | Through Hole |
| Pitch (Metric) | 1.27 Millimeter |
| Product Usage | Electronic Devices, Boardmount |
| Shell Material | Steel |
| Shell Plating | Nickel |
| Termination Method | Solder |
Resources
3M™ Mini D Ribbon(MDR),.050" BM Thru-Hole,RA,Shielded,TS0531Data Sheets
(PDF, 394KB)
