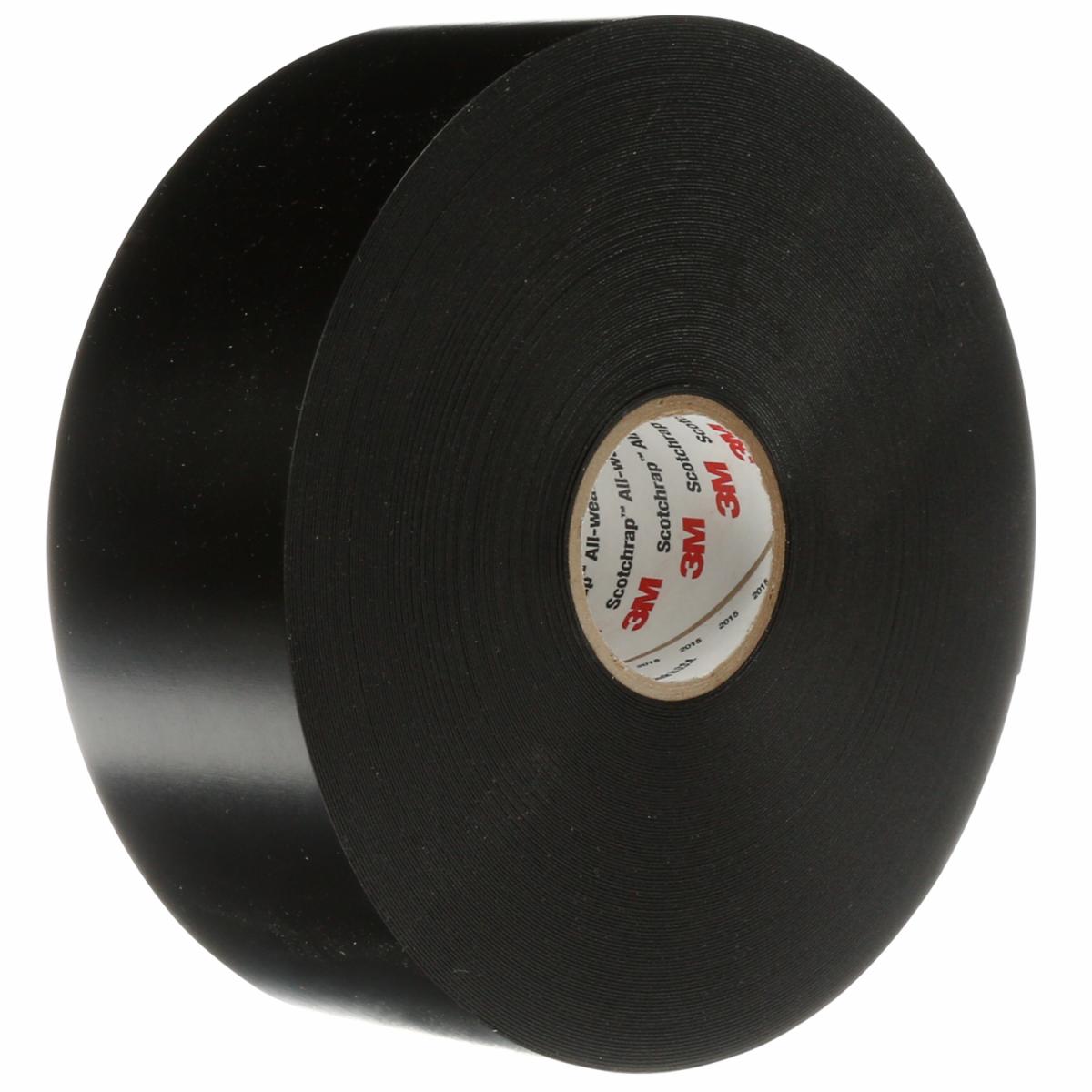

3M™ Scotchrap™ Vinyl Corrosion Protection Tape 51, Unprinted, 50.8 mm x 30.48 m, Black, 1 Roll/Carton, 12 Rolls/Case
- 3M ID 7000006135
Details
Highlights
- Excellent UV Resistant
- Tough PVC tape resists corrosion in all weather conditions
- Suitable for fittings and joints on all millcoated pipes and electrical conduit systems above and below ground
- RoHS 2011/65/EU Compliant
- NOTE: 3M™ Scotchrap™ Pipe Primer should be used with all corrosion protection tapes
- Printed for easy identifcation
- Temperature range of -55 to 176 degrees F (-48 to 80 degrees C) ensures high performance in a wide range of conditions
3M™ Scotchrap™ Vinyl Corrosion Protection Tape 51 has high-tack adhesive to provide a corrosion- and impact-resistant seal for all-weather protection of metal piping systems above and below ground.
3M™ Scotchrap™ Vinyl Corrosion Protection Tape 51 ensures excellent tacking and high conformability with a pressure sensitive rubber adhesive. The flexible PVC backing offers good mechanical strength and electrical insulation properties. It is highly resistant to UV rays, corrosive salt water, soil acids, alkalis, salts, chemicals and varying weather conditions. It works on straight pipes, conduits and on the field joints present on mml coated pipes. Its is printed for easy recognition
Typical Properties
| Adhesion Strength (Metric) | 21.9 N/100mm |
| Adhesive Type | Rubber |
| Application | Corrosion Protection |
| Backing Material | PVC |
| Brands | Scotchrap™ |
| Chemical Resistant | Yes |
| Electrolytic Corrosion Factor | 0.9 |
| Elongation at Break | 150 % |
| Features | Flame Retardant, UV-resistant |
| Maximum Installation Temperature (Celsius) | 65 ℃ |
| Maximum Operating Temperature (Celsius) | 80 ℃ |
| Minimum Installation Temperature (Celsius) | -12.0 Degree Celsius |
| Minimum Operating Temperature (Celsius) | -48 ℃ |
| Performance Level | Professional Grade |
| Shelf Life | 5 Year |
| Specifications Met | RoHS 2011/65/EU |
| Tape Type | Corrosion Protection |
| Total Tape Thickness without Liner (Metric) | 0.5 Millimetre |
| Overall Length (Metric) | 30.5 Meter |
| Overall Thickness (Metric) | 0.51 Millimeter |
| Overall Width (Metric) | 50.8 Millimeter |
