3M™ Cold Shrink QT-III Termination Kit 7640-S, 7650-S & 7660-S Series 7654-S-4-40145, 1 Kit/Case, Indoor/Outdoor
- Part Number 7654-S-4-40145
- 3M Product Number 7654-S-4-40145
- 3M ID 7100244114
- UPC 00051144062416
Details
Highlights
- Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Silicone rubber insulation offers durability and reduces leakage currents in damp conditions

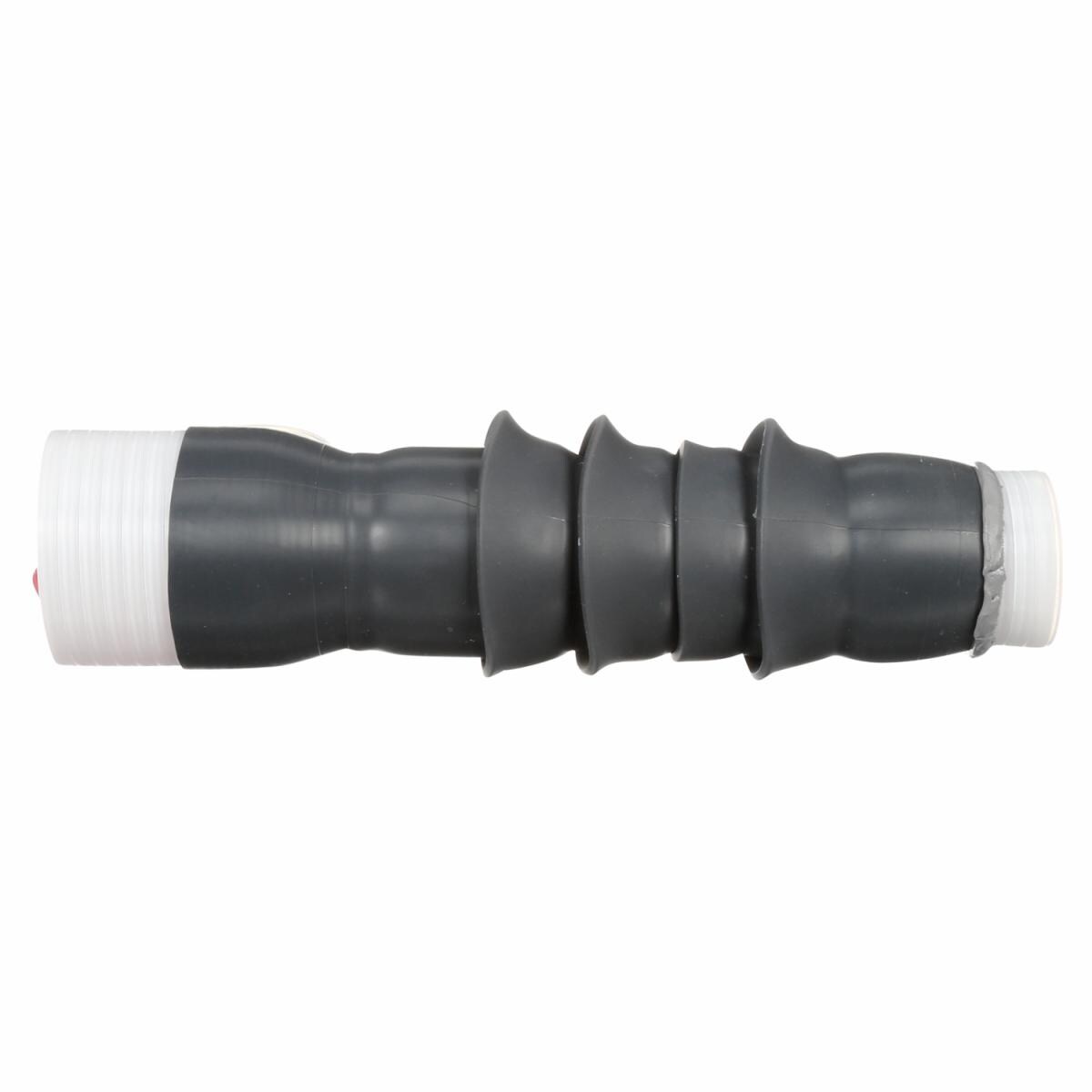

3M™ Cold Shrink QT III 7640 S, 7650 S & 7660 S Series Termination Kit includes a 1 piece, skirted termination. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
Each kit contains sufficient quantities of material to make a one-phase termination. The termination assemblies consist of a skirted insulator, high dielectric constant (Hi-K) stress control tube, conformable Hi-K stress controlling compound, and built-in environmental top seal. The insulator is made of a dark gray silicone rubber with advanced tracking resistant and hydrophobic properties. Note: Lugs need to be ordered separately.
Typical properties
| Brands | 3M™ |
| Breakout Boot | No |
| Lug/Stem Connector Included in Kit | No |
| Termination Type | Single Termination |
| Voltage Application | Medium Voltage |
Resources
3M™Termination Kits QT-III 7650-S-HSG and 7660-S-HSG Series 5Data Sheets
(PDF, 265KB)
