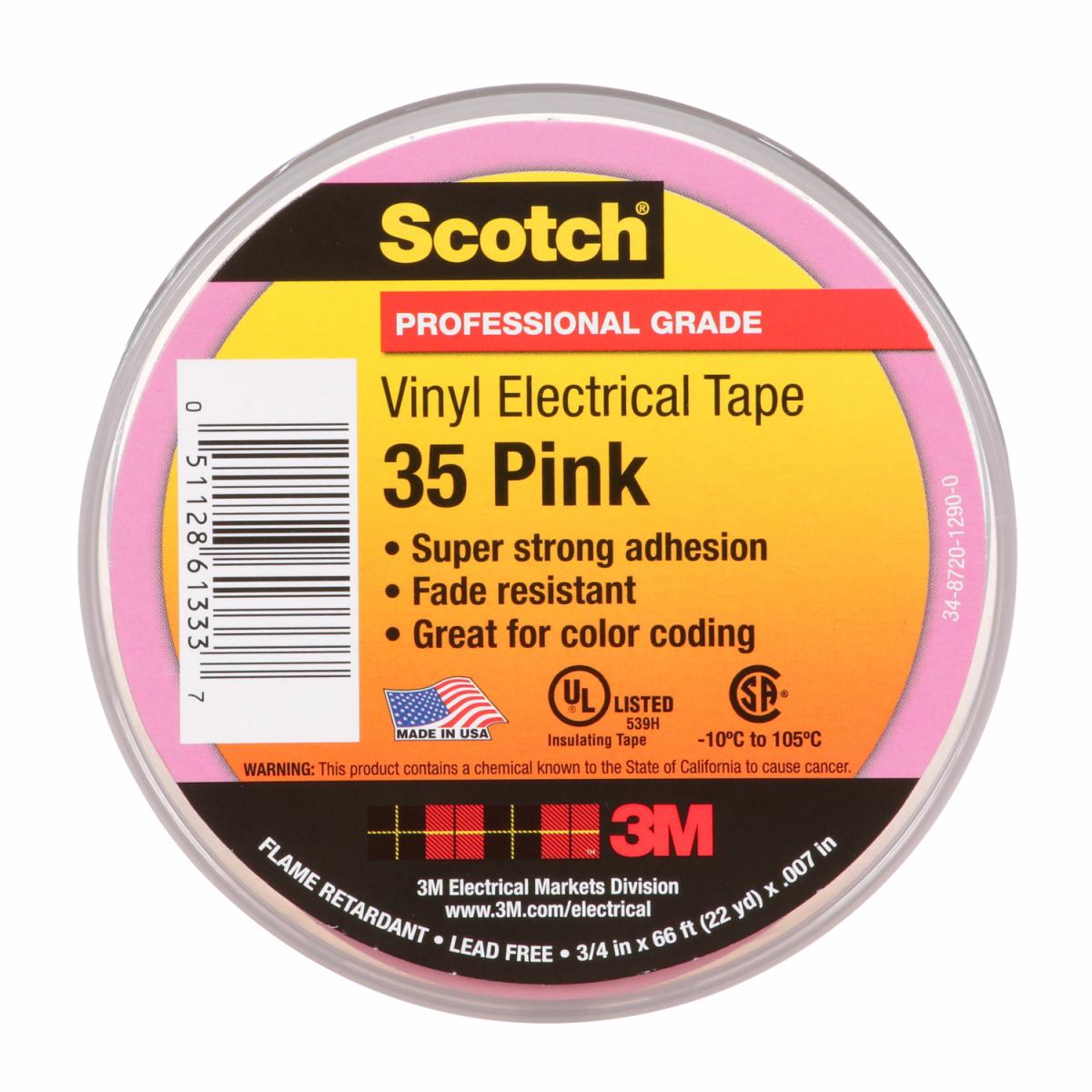

Scotch® Vinyl Color Coding Electrical Tape 35, 3/4 in x 66 ft, Pink, 10 rolls/carton, 100 rolls/Case

Scotch® Vinyl Color Coding Electrical Tape 35, 3/4 in x 66 ft, Pink, 10 rolls/carton, 100 rolls/Case

Part Number 35-3/4X66FT-PK
3M ID 7010411602
UPC 00051128613337

Overall Width (Metric)	19 mm
Total Tape Thickness without Liner (Metric)	0.178 mm
Overall Width (Imperial)	0.75 in
Product Color	Pink
Overall Length (Imperial)	66 ft

The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection

Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids

Suitable for use in phase identification, color-coding of motor leads and piping systems and for marking safety areas

View more details

Frequently viewed resources

Tech Data Sheet (PDF, 365KB)

Details

Highlights

The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection
Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids
Suitable for use in phase identification, color-coding of motor leads and piping systems and for marking safety areas
Made of durable PVC
Withstands a temperature range of 14 to 221 °F (-10 to 105 °C)
UL Listed, VDE, CSA Certified and RoHS 2015/863/EU Compliant

Scotch® Vinyl Multi-Colored Electrical Tape 35 is a 7 mil thick, premium grade, electrical tape that comes in various colors. This flame retardant tape is suitable for wire and phase identification, color coding of motor leads and piping systems, and for marking safety areas. This tape is 600V rated and withstands a temperature range of 14 to 221 °F (-10 to 105 °C).

Scotch® Vinyl Multi-Colored Electrical Tape 35 provides electrical and mechanical protection with the combination of an aggressive, pressure sensitive, rubber resin adhesive and an elastic PVC backing. This tape is flame retardant and is highly resistant to UV rays, abrasion, moisture, alkalis, acids, solvents and varying weather conditions. It stretches easily and adheres virtually in any shape. Ideal for insulating electrical wires and is compatible with synthetic cable insulations, jackets and splicing compounds. UL Listed, VDE, CSA Certified and RoHS 2011/65/EU Compliant.

Typical properties

Details

Adhesive Type	Rubber
Application	Electrical Maintenance
Backing (Carrier) Material	PVC
Brands	Scotch®
Dielectric Strength	1250 V/mil
Electrolytic Corrosion Factor	0.9
Elongation at Break	225.0 %
Flame Retardant	Yes
Insulation Resistance	> 10^6 megohms
Maximum Operating Temperature (Celsius)	105 ℃
Maximum Operating Temperature (Fahrenheit)	221 ℉
Product Color	Pink
Shelf Life	5 Year
Tape Grade	Professional
Total Tape Thickness without Liner (Imperial)	7 mil
Total Tape Thickness without Liner (Metric)	0.178 mm
Voltage Rating	600 V

Dimensions and Classifications

Overall Length (Imperial)	66 ft
Overall Width (Imperial)	0.75 in
Overall Width (Metric)	19 mm
