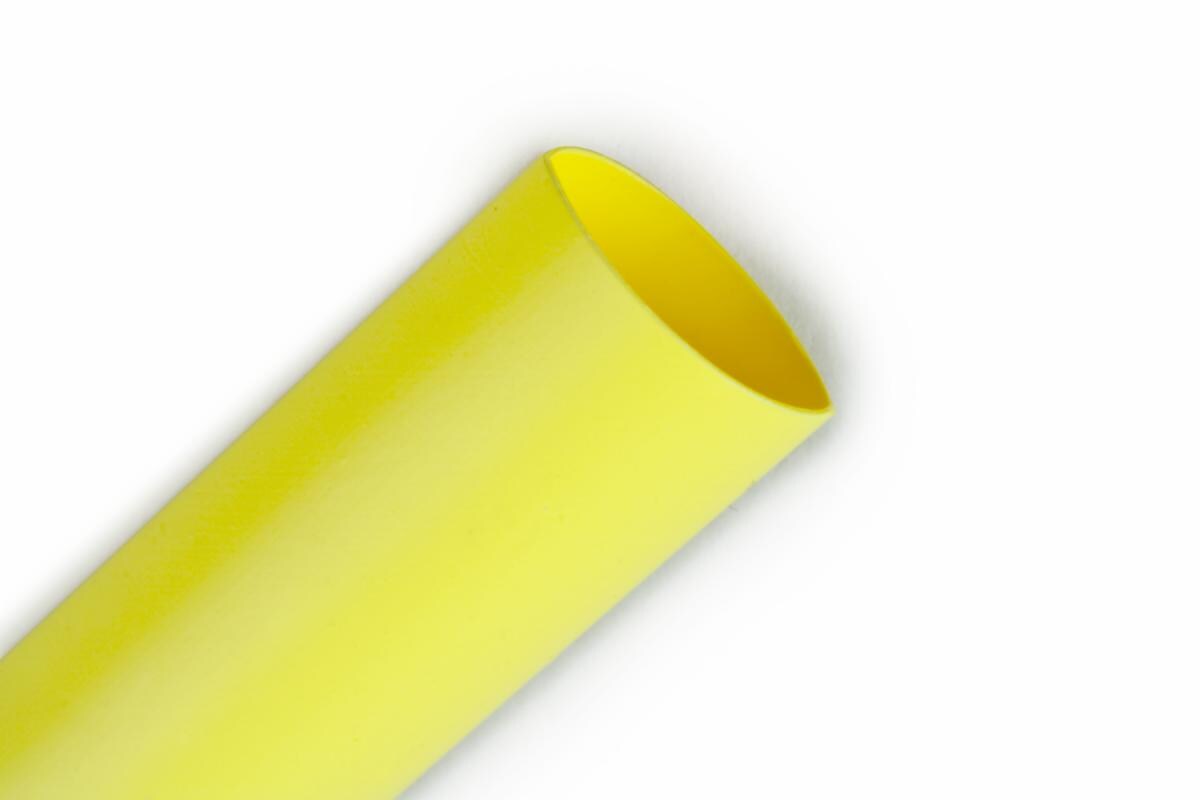

3M™ Heat Shrink Thin-Wall Tubing FP-301-1-48"-Yellow-24 Pcs, 48 in Length sticks, 24 pieces/case
- Part Number FP1.000YL48"L
- 3M ID 7010350194
- UPC 00051128598443
Details
Highlights
- A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
- FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
- HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
- FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
- KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.
3M™ Heat Shrink Tubing FP-301 is color coded for quick and easy identification of the wire. This split resistant, flame retardant tubing is used as shrink fit, electrical insulation over cable splices or terminations. The high expansion ratio tubing is mechanically tough, easily markable and resists cold flow. It is ideal for lightweight wire harness covering, fire resistant covering, wire marking, wire bundling and component packaging. It withstands temperatures of 67 to 275 degrees F ( 55 to 135 degrees C). UL Listed, SAE AS23053/5, Class 1, CSA Certified and RoHS 2011/65/EU Compliant.
Typical properties
| Brands | 3M™ |
| Elongation | 400 % |
| Expanded Inner Diameter | 1 in |
| Expanded Inner Diameter (Metric) | 25.40 mm |
| Flame Retardant | Yes |
| Heat Shrink Type | Single-Wall Polyolefin Heat Shrink Tubing |
| Inner Diameter After Shrink (Imperial) | 0.5 in |
| Inner Diameter After Shrink (Metric) | 12.7 mm |
| Inner Diameter Before Shrink (Imperial) | 1 in |
| Inner Diameter Before Shrink (Metric) | 25.4 mm |
| Material | Polyolefin |
| Maximum Operating Temperature (Celsius) | 135 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 275 ℉ |
| Mil Spec | AMS-DTL-23053/5, Class 1 |
| Minimum Expanded Tubing I. D. | 1 in |
| Non-Corrosive | Yes |
| Operating Temperature (Celsius) | -55 to 135 Degrees Celsius |
| Operating Temperature (Fahrenheit) | -67 °F to 275 °F |
| Product Color | Yellow |
| Product Form | 48 in (1.22 m) sticks |
| Recovered Inner Diameter | 0.5 in |
| Recovered Inner Diameter (Metric) | 12.7 mm |
| Shrink Ratio | 2:1 |
| Size (Metric) | 25.4 mm |
| Solution for | Access Network: FTTH/FTTB/CATV, Wireless Network: Backhaul, Long-haul/Metro Loop Network: Outdoor, Wireless Network: Infrastructure Accessories, Access Network: xDSL |
| Tubing Type | Single (Thin) Wall |
| UL Bug Temperature (Celsius) | 125 Degrees Celsius |
| UL Bug Temperature (Fahrenheit) | 257 Degrees Fahrenheit |
| UL Bug Voltage | 600 Volt |
| Overall Length (Imperial) | 48 in |
Resources
Regulatory Data Sheet
Document Number: MSDS_0706986_US_EN_RDS
(PDF)
