3M™ Cold Shrink QS-III Splice Kit 5535A-2/0-CU, 2/0 AWG, 1 per case
- Part Number 5535A-2/0-CU
- 3M ID 7100167495
- UPC 00054007430780
Details
Highlights
- Inline splice for joining tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables
- Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
- Designed for inline splicing, feeder and distribution circuits, size transition splicing, direct burial installations and submerged locations
- Cable has 1.07 to 1.7-in insulation O.D
- Accommodates 2/0 AWG size copper conductors
- Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
- Rated for 35 kV cables
- High-voltage, production-tested for partial discharge and AC ensure reliability
- Meets or exceeds the class rating requirements of IEEE 404 standards
3M™ 5535A Series Cold Shrink QS-III Splice Kit is an inline splice designed to join 35kV tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables. The cold shrink design fits type MV-90/MV-105 cables with copper conductors while ensuring a quick installation and excellent cable size transitions. The kit is 15,000 amps-rated for faults current protection.

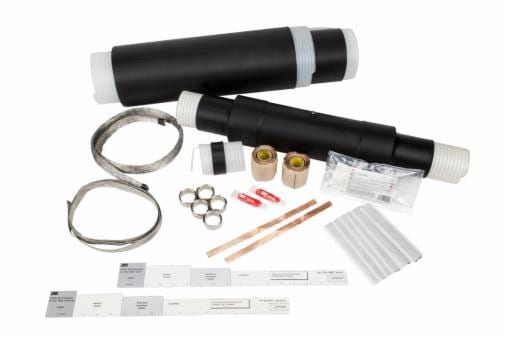

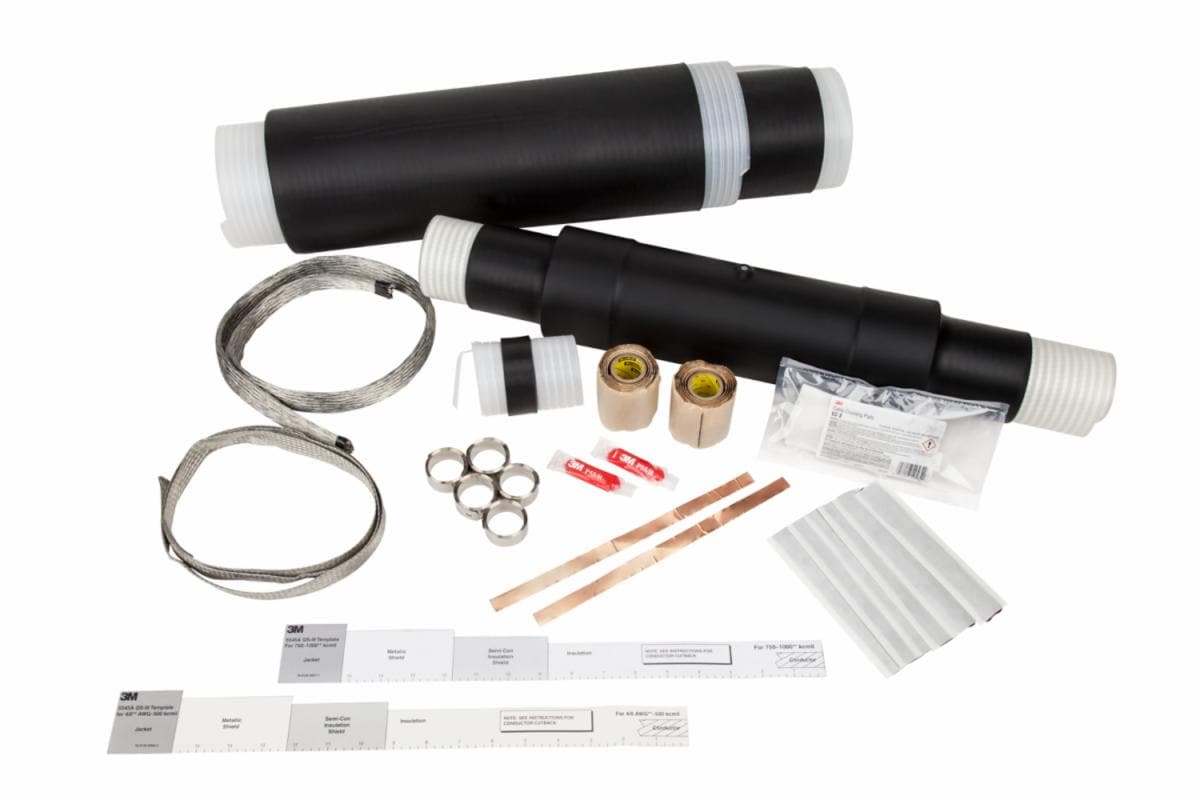

3M™ 5535A Series Cold Shrink QS-III Splice Kit includes 2 adapter tubes, 2 compound tubes, six 2230 sealing strips, two 2228 tape rolls, 2 tape strips, 5 connectors, a CC-3 cleaning pad, shielding sleeve, ground strap, cable preparation template and an instruction booklet. It has a computer-aided design that provides a compact size and optimal distribution of the electrical field. The cold shrink splice body has a specially formulated silicone rubber construction to ensure good high and low temperature performance. Its jacketing with EPDM rubber construction provides physical protection. The kit meets the class-rating requirements of IEEE 404 standards.
Suggested applications
- For inline splicing
- For feeder and distribution circuits
- For Tape, Wire, UniShield® & Longitudinally corrugated (LC) shielded cables
- For transitions from shielded to neutral power cables
- For copper or aluminum conductors
- For size transition splicing
- For direct burial installations
- For submerged locations
Typical properties
| Application | Cable Connection |
| Brands | 3M™ |
| Cable Shielding | Tape Shield, UniShield®, Longitudinally Corrugated (LC), Wire Shield |
| Case Quantity | 1 |
| Conductor Material | Copper |
| Conductor Sizes (Imperial) | 2/0 AWG |
| Conductor Sizes (Metric) | 70 mm² |
| Connector Included | 10006 |
| Insulation O.D. Range | 1.07 - 1.70 Inch |
| Insulation Outside Diameter Range | 1.07 - 1.70 Inch |
| Insulation Outside Diameter Range (Metric) | 27.2 - 43.2 mm |
| Number of Conductors | 1 |
| Product Series | 5535A & 5536A Series |
| Voltage | 35 kV |
