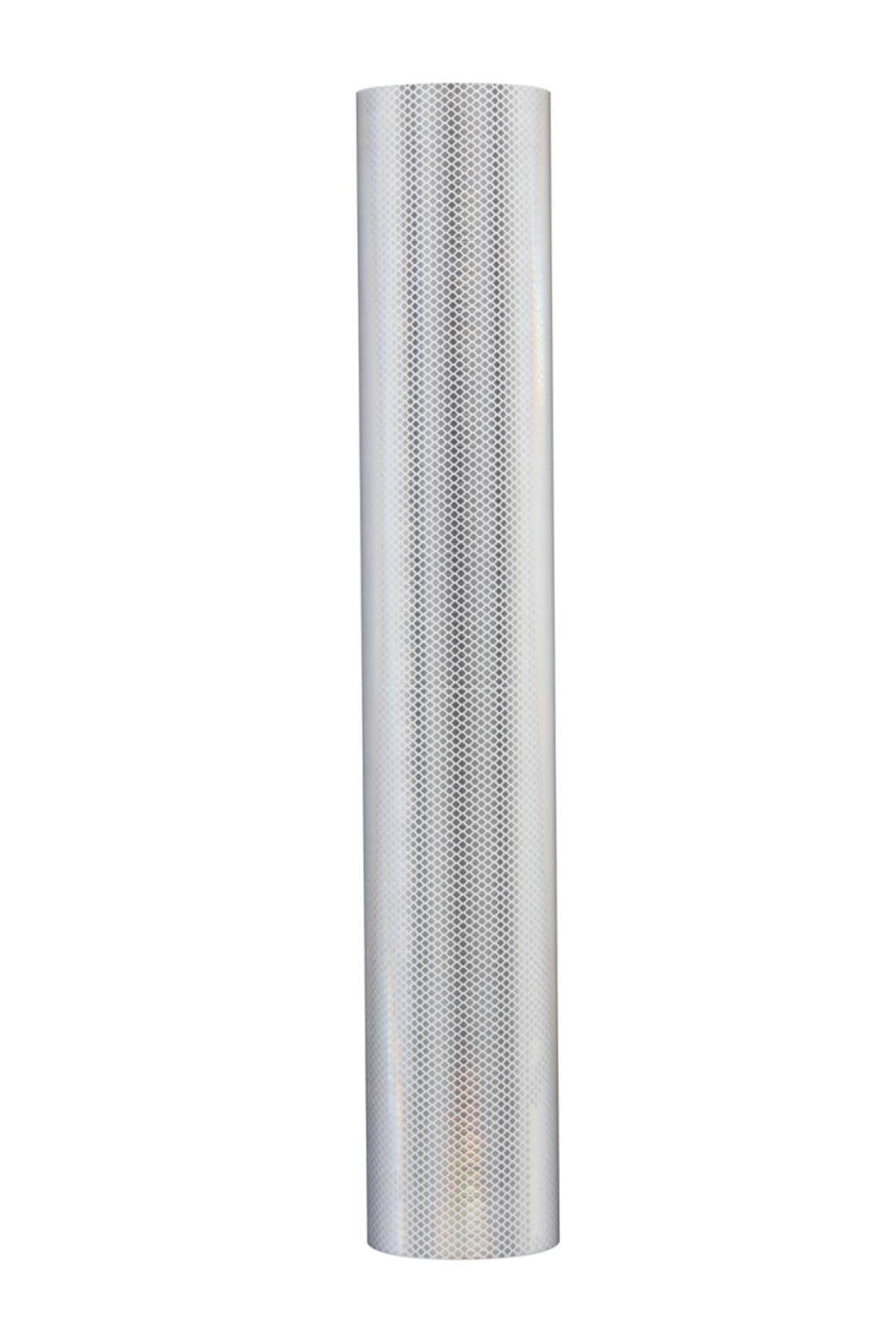

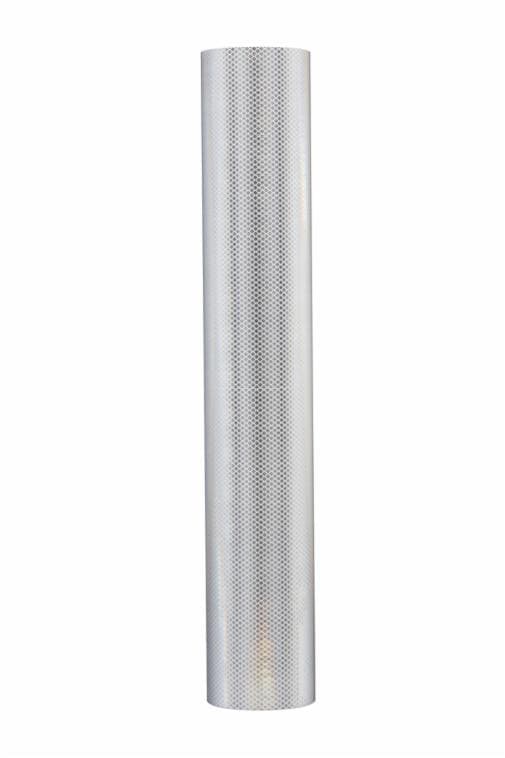

3M™ Diamond Grade™ DG³ Reflective Sheeting 4090, White, Configurable Roll

3M™ Diamond Grade™ DG³ Reflective Sheeting 4090, White, Configurable Roll

3M ID 7100007979

Current Time 0:00

Duration 0:00

Loaded: 0%

Stream Type LIVE

Remaining Time 0:00

Product Color	White
Specifications Met	ASTM D4956 Type XI, ASTM D4956 Type IX, ASTM D4956 Type XI CWZ

3M™ Diamond Grade™ DG³ Reflective Sheeting Series 4000 offers superior reflectivity at short and long distances

Meets today’s highest published performance specifications

Disadvantaged sign placement locations such as overhead or left shoulder

View more details

Frequently viewed resources

Tech Data Sheet (PDF, 386KB)

Details

Highlights

3M™ Diamond Grade™ DG³ Reflective Sheeting Series 4000 offers superior reflectivity at short and long distances
Meets today’s highest published performance specifications
Disadvantaged sign placement locations such as overhead or left shoulder
One of the brightest durable sheeting for cost-efficient guidance
Provides level of luminance needed by older drivers
Accommodates drivers of large vehicles
Fluorescent for added visibility during dawn, daytime, dusk and inclement weather
Pressure-sensitive adhesive
Warranted performance for up to 10 years

3M™ Diamond Grade™ Reflective Sheeting offers industry-leading retroreflectivity, conspicuity and legibility because of its highly efficient retroreflective optics. It helps improve safety by providing higher luminance values at distances most critical to drivers.

3M™ Diamond Grade™ DG³ Reflective Sheeting is a highly reflective, durable, microprismatic lens sheeting with pressure sensitive adhesive.

Suggested applications

Short, medium and long sight distances
Disadvantaged sign placement locations such as overhead or left shoulder
Short, medium and long sight distances

Typical properties

Details

Brands	Diamond Grade™
Construction	Microprismatic
Imaging Method	Digital Print, Screenprint, Overlay/Electronic Cut
Performance Level	Diamond Grade
Product Code	4090
Product Color	White
Product Series	4000
Reflective Technology	Full-cube Prismatic
Specifications Met	ASTM D4956 Type XI, ASTM D4956 Type IX, ASTM D4956 Type XI CWZ
Substrate	Aluminum, Plywood
