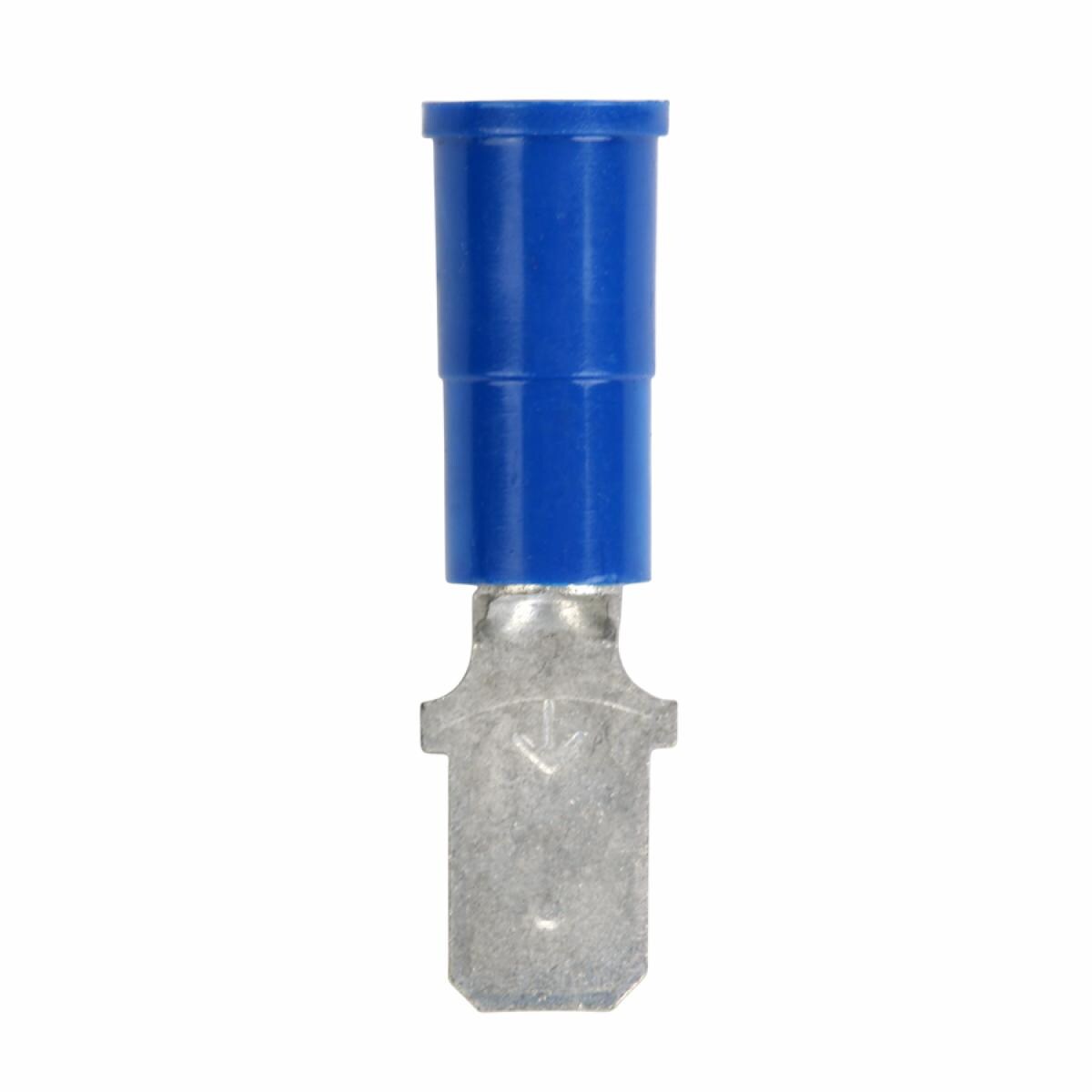

3M™ Scotchlok™ Male Disconnect Vinyl Insulated, 100/bottle, MVU14-250DMX, 500/Case
- Part Number MVU14-250DMX
- 3M ID 7000133289
- UPC 00051128586761
Details
Highlights
- Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- This male disconnect terminal offers excellent holding force
- Allows for quick and easy disconnect of wires
- Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.
The disconnects are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.
Typical properties
Similar products
| Connection Width (Metric) | 6.35 mm | |||
| Connection Width (Imperial) | 0.25 in | |||
| Maximum Conductor Size (Imperial) | 14 AWG | |||
| Maximum Conductor Size (Metric) | 2.5 mm² | |||
| Minimum Conductor Size (Metric) | 1.5 mm² | |||
| Minimum Conductor Size (Imperial) | 16 AWG |
