3M™ Diamond Lapping Film 661X, 9.0 Micron Roll, 3 in x 50 ft x 3 in ASO, 1/Case
- Part Number 661X
- 3M ID 7000118211
- UPC 00051111698488
Details
Highlights
- Most widely used diamond lapping film
- Fast cut, increased throughput
- Flatter surface and sharp edges
- Uniform finish
- Available in discs, sheets and rolls

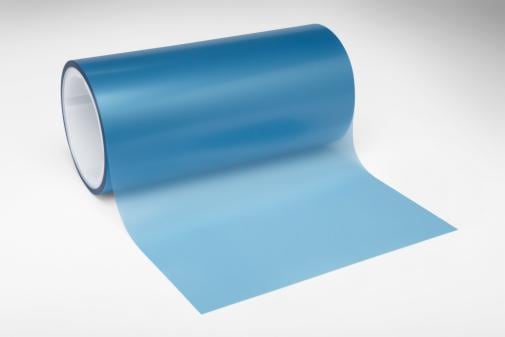

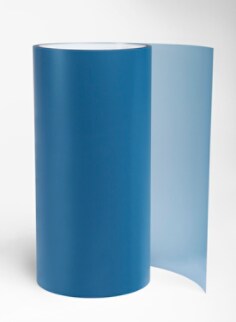

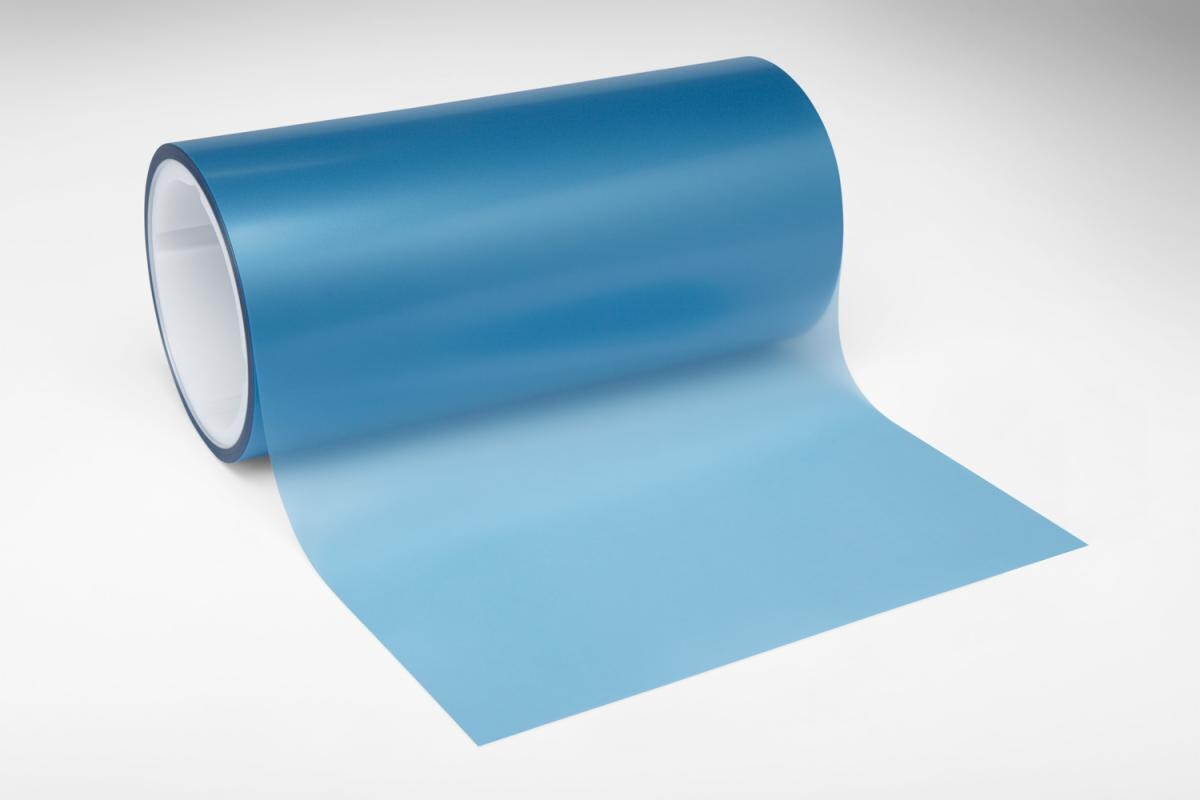

3M™ Diamond Lapping Film Roll 661X is made from precisely graded diamond particles coated on a polyester film. 3M film 661X provides a consistent, repeatable finish on extremely hard materials while delivering fast cut and increased throughput.
Typical properties
| Abrasive Material | Diamond |
| Attachment Type | Plain Back |
| Backing Thickness (Imperial) | 3 mil |
| Backing Thickness (Metric) | 0.076 mm |
| Brands | 3M™ |
| Micron Grade | 9 μm |
| Product Form | Roll |
| Product Series | 661X |
| Overall Length (Imperial) | 50 ft |
| Overall Length (Metric) | 15.24 m |
| Overall Width (Imperial) | 3 in |
| Overall Width (Metric) | 76.2 mm |
Resources
Regulatory Data Sheet
Document Number: MSDS_1169044_US_EN_RDS
(PDF)
Legal disclaimer
Product Disclaimer
The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes.
3M products shown on this website may not be available in all geographic regions or may not be available at this time. Please contact your local sales representative to determine product availability.
