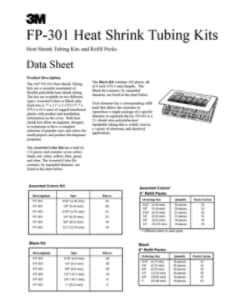

3M™ Heat Shrink Tubing FP-301 - Data Sheet - 78-8131-7399-0-E
3M™ Heat Shrink Tubing Kits FP-301Contact a Sales Rep
Thank You!
Your form was submitted successfully.
Our Apologies...
An error has occurred while submitting. Please try again later...
3M™ Heat Shrink Tubing FP-301-Color-Assortment: 5 Kits/Case
- Part Number FPASSTAS6"K
- 3M ID 7000031588
- UPC 00051135376775
Details
Highlights
- A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
- FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
- HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
- FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
- KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.
3M™ Heat Shrink Tubing FP-301 is color coded for quick and easy identification of the wire. This split resistant, flame retardant tubing is used as shrink fit, electrical insulation over cable splices or terminations. The high expansion ratio tubing is mechanically tough, easily markable and resists cold flow. It is ideal for lightweight wire harness covering, fire resistant covering, wire marking, wire bundling and component packaging. It withstands temperatures of 67 to 275 degrees F ( 55 to 135 degrees C). UL Listed, SAE AS23053/5, Class 1, CSA Certified and RoHS 2011/65/EU Compliant.
Typical properties
| Additional Flammability Rating | 23053/5 class1 |
| Applicable SAE-AMS-DTL-23053 Specifications | 23053/5 class 1 |
| Assortment Kits | Yes |
| Brands | 3M™ |
| Dielectric Strength | 900 V/mil |
| Elongation | 400 % |
| Expanded Inner Diameter | 2 in |
| Expanded Inner Diameter (Metric) | 50.80 mm |
| Flame Retardant | Yes (except clear) |
| Flammability Rating | UL 224 All Tubing Flame Test |
| Heat Shrink Type | Heat Shrink Tubing Kits, Single-Wall Polyolefin Heat Shrink Tubing |
| Material | Flexible Polyolefin |
| Maximum Operating Temperature (Celsius) | 135 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 275 ℉ |
| Mil Spec | AMS-DTL-23053/5, Class 1 |
| Minimum Shrink Temperature (Celsius) | 100 ℃ |
| Non-Corrosive | Yes |
| Operating Temperature (Celsius) | -55 to 135 Degrees Celsius |
| Operating Temperature (Fahrenheit) | -67 °F to 275 °F |
| Operating Temperature Range (Celsius) | -55 °C to +135 °C |
| Operating Temperature Range (Fahrenheit) | -67 °F to 275 °F |
| Product Form | 48 in (1.22 m) sticks |
| Recovered Inner Diameter | 1 in |
| Recovered Inner Diameter (Metric) | 25.4 mm |
| Shrink Ratio | 2:1 |
| Tensile Strength (Imperial) | 2400 Pound-Force Per Square Inch |
| Tubing Type | Single Wall (Thin) |
| UL Approval | Yes |
| Units per Case | 133.0 |
| Overall Length (Imperial) | 48 in |
