3M™ Double Coated Tape 9490LE+, Clear, 6.7 mil, Roll, Config, US
- 3M Product Number 9490LE+
- 3M ID 7100319794
Details
Highlights
- Differential adhesive tape is excellent for a broad range of challenging substrates
- 0.5 mil PET carrier adds dimensional stability for handling during lamination and die-cutting
- Face side features 3M™ Adhesive 300MP+, excellent for foams and fabrics
- Back side 3M™ High Strength Acrylic Adhesive 300LSE delivers high bond strength to difficult to bond substrates
- 58# PCK liner adds stability for storage and die-cutting
The face side features 2.8 mil of 3M™ Adhesive 300MP+, excellent for bonding foams and fabrics. The back side is coated with 3.4 mil of 3M™ Adhesive 300LSE, which delivers high bond strength to a range of similar and dissimilar surfaces including plastics, metals, glass and paint.
Typical properties
| Adhesive Type | Acrylic |
| Application | Attaching |
| Back Side Adhesive Thickness (Imperial) | 3.4 mil |
| Back Side Adhesive Thickness (Metric) | 0.086 mm |
| Back Side Adhesive Type | Low Surface Energy Acrylic Adhesive 300LSE |
| Backing (Carrier) Material | Polyester |
| Backing (Carrier) Thickness (Imperial) | 0.5 mil |
| Backing (Carrier) Thickness (Metric) | 0.013 mm |
| Brands | 3M™ |
| Face Side Adhesive Thickness (Imperial) | 2.8 mil |
| Face Side Adhesive Thickness (Metric) | 0.071 mm |
| Face Side Adhesive Type | Acrylic Adhesive 300MP+ |
| Indoor/Outdoor | Indoor/Outdoor |
| Industries | General Industrial |
| Primary Liner | 58# Polycoated Kraft Paper (PCK) |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Imperial) | 4.2 mil |
| Primary Liner Thickness (Metric) | 0.11 mm |
| Product Color | Transparent |
| Product Form | Roll |
| Product Usage | Foam |
| Shelf Life | 18 Month |
| Smallest Saleable Unit | Roll |
| Total Tape Thickness without Liner (Imperial) | 6.7 mil |
| Total Tape Thickness without Liner (Metric) | 0.17 mm |
Resources

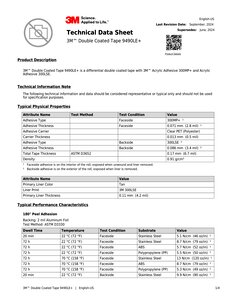

3M™ Double Coated Tape 9490LE+Data Sheets
(PDF, 86KB)
