3M™ DBI-SALA® Leading Edge Tripod Anchor For Concrete 2190074

3M™ DBI-SALA® Leading Edge Tripod Anchor For Concrete 2190074

Part Number 2190074
3M Product Number 2190074
3M ID 7012818380
UPC 00840779162130

Installs to rebar ring during pre-cast concrete work. Installs in seconds utilizing built-in ratcheting securement system.

Built-in ratcheting securement system. Allows user to secure anchor in place quickly without special tools.

Dual-use design can also be used as end anchors for a 2-person temporary 3M™ DBI-SALA® Horizontal Lifeline System.

View more details

Details

Highlights

Installs to rebar ring during pre-cast concrete work. Installs in seconds utilizing built-in ratcheting securement system
Built-in ratcheting securement system. Allows user to secure anchor in place quickly without special tools
Dual-use design can also be used as end anchors for a 2-person temporary 3M™ DBI-SALA® Horizontal Lifeline System
For use with 3M™ DBI-SALA® Smart Lock Leading Edge Self-Retracting Lifeline (Sold Separately), designed to know the difference between regular movement and a fall—reducing unintentional lockups.*Compared to our previous generation SRLs
Portable and reusable. Anchor can be removed and simply reinstalled in a new location for added jobsite flexibility

Installs to rebar ring during pre-cast concrete work. Installs in seconds utilizing built-in ratcheting securement system. Built-in ratcheting securement system allows a user to secure anchor in place quickly. Dual-use design can also be used as end anchors for a 2-person temporary 3M™ DBI-SALA® HLL System. For use with 3M™ DBI-SALA® Smart Lock LE Self-Retracting Lifelines (Sold Separately).

Stay on top of projects with 3M^™ DBI SALA^® Roof Anchors. The versatility you need when working at height. Stay on top of projects with 3M^™ DBI SALA^® Roof Anchors. Whether your roof is flat or sloped, wood, metal or concrete, there’s a 3M^™ DBI SALA^® Roof Anchor to help you get the job done efficiently and securely. They’re easy to install and rugged enough to handle tough environments. Pair these roof anchors with the 3M^™ DBI SALA^® Smart Lock Self Retracting Lifeline for comfort and productivity with reduced unintentional lockups.*Compared to our previous generation SRLs. Swiveling Self Retracting Lifeline Bracket: Provides freedom of movement around the anchor. Compact and Lightweight Design Features: fast and easy attachment for added productivity. Durable Construction Stands up to tough work environments. Installs in seconds utilizing built in ratcheting securement system. Built in Ratcheting Securement System. Allows user to secure anchor in place quickly without special tools. Dual Use Design. Can also be used as end anchors for a 2 person temporary 3M^™ DBI SALA^® Horizontal Lifeline System. For Use with 3M^™ DBI SALA^® Smart Lock Leading Edge Self Retracting Lifelines (Sold Separately), designed to know the difference between regular movement and a fall—reducing unintentional lockups.*Compared to our previous generation SRLs.

Typical properties

Details

Anchor Hook Material	Metal
Anchor Install Type	Reusable
Brands	DBI-SALA®
Case Quantity	1 EA
Connected Safety ID Equipped	No
For Use With	3M™ DBI-SALA® Smart Lock Self-Retracting Lifeline (SRL)
Housing Material	Steel Only
Housing Type	Stainless Steel
Material	Zinc Plated Steel
Mounting Type	Portable & Reusable
Product Color	Black
Product Type	Construction Roof Anchor
Recommended Application	Construction
Recommended Industry	Construction
Specifications Met	OSHA 1910.140, OSHA 1926.502
Weight (Imperial)	35 lb
Weight (Metric)	15.9 kg
Weight Capacity	420 lbs. (190 kg)
Weight Capacity (Imperial)	420 lb
Weight Capacity (Metric)	190.5 kg

Dimensions and Classifications

Overall Length (Imperial)	24 in

Resources

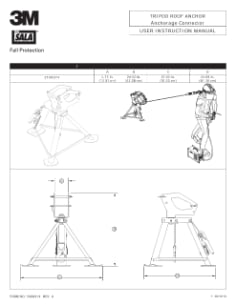

3M DBI-SALA Construction Roof Anchor 2190074

Other

(PDF, 1MB)

3M™ DBI-SALA™ Roof Anchor Sell Sheet

Other

(PDF, 1MB)
