  6. 3M™ Versaflo™ M-Series Helmet Welding Knob and Pivot Kit M-146SG, 1 EA/Case

3M™ Versaflo™ M-Series Helmet Welding Knob and Pivot Kit M-146SG, 1 EA/Case

  • 3M Product Number M-146SG
  • 3M ID 7100168648
  • UPC 00076308942779

Weld shield can be installed with common hand tools

Available as replacement parts

User is able to lift weld shield independently from respiratory visor

View more details

Details

Highlights
  • Weld shield can be installed with common hand tools
  • Available as replacement parts
  • User is able to lift weld shield independently from respiratory visor
  • Used for attaching Speedglas™ M-153SG attachment to Versaflo™ M-400 Series helmets

The M-146SG is a complete replacement of the welding knob, internal and external pivot joints for the 3M™ Versaflo™ M-Series Welding Shield M-153SG, allowing the faceshield to pivot when raised, lowered or repositioned, and is used with the M-400 Series helmets.

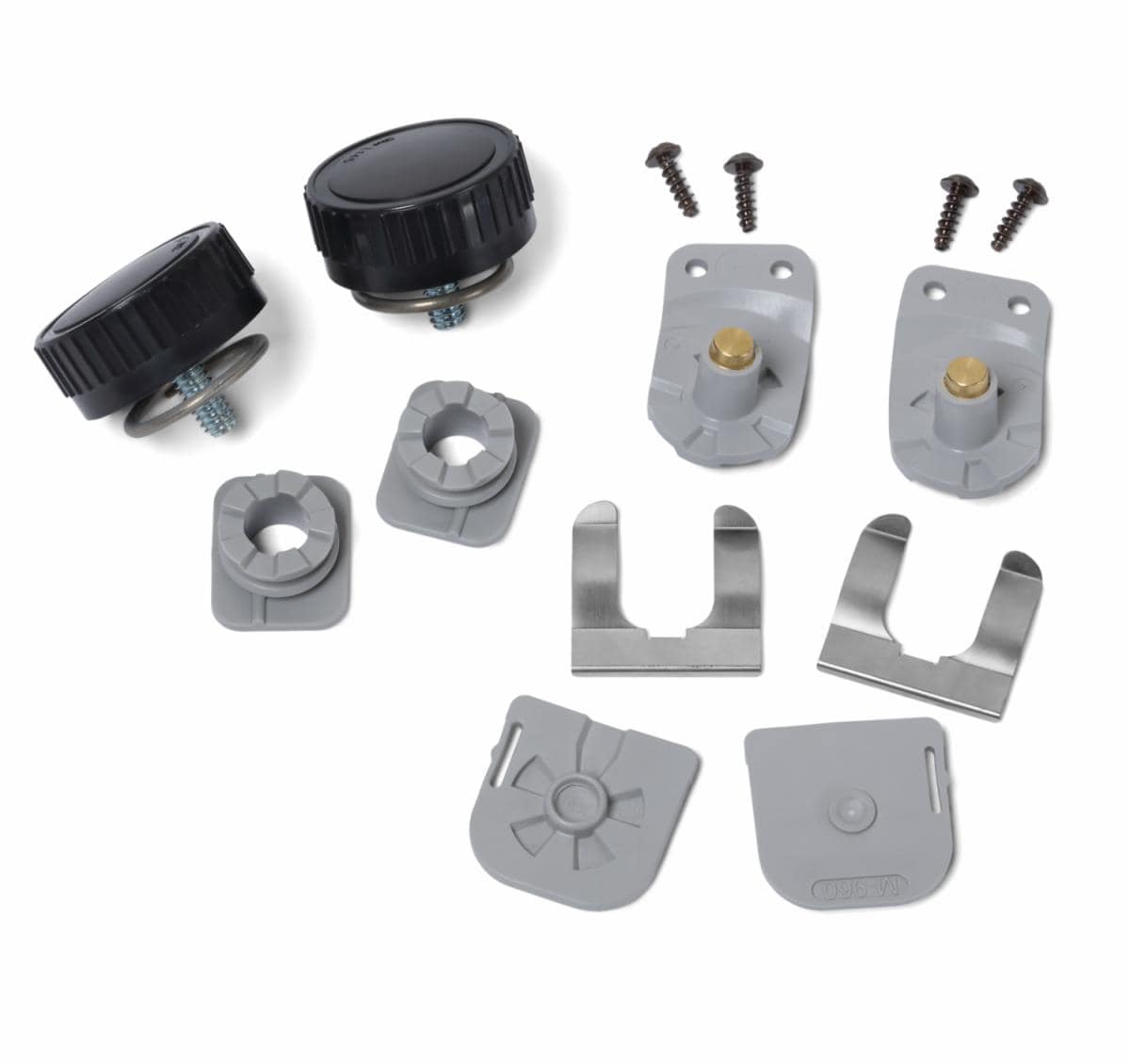

The 3M™ Versaflo™ M Series Welding Knob and Pivot Kit, M 146SG includes a Pivot Socket Cam, Pivot Spring Clip, Pivot Support Cam, Welding Knob, and Pivot Joint left and right assembly. When installed with the 3M™ Versaflo™ M Series Welding Shield M 153SG, it allows the faceshield to pivot when raised, lowered or repositioned, and is used with the M 400 Series helmets.

Typical properties

Brands

Versaflo™

Compatible Respirator

M-Series

Compatible Welding Helmet

M-Series

For Use With

3M™ Versaflo™ Respiratory M-Series Helmet Assemblies

Headgear Type

No Headgear Included

Intrinsically Safe

N/A

Net Weight (Imperial)

0.2 lb

Net Weight (Metric)

88.5 g

Product Series

M-Series

Product Type

Knob & Pivot Kit

Recommended Application

Welding

Recommended Industry

Metal Production & Fabrication, Metal Fabrication, Heavy Industrial

Smallest Saleable Unit

Each

Specifications Met

ANSI Z89.1 Type I, Class G
