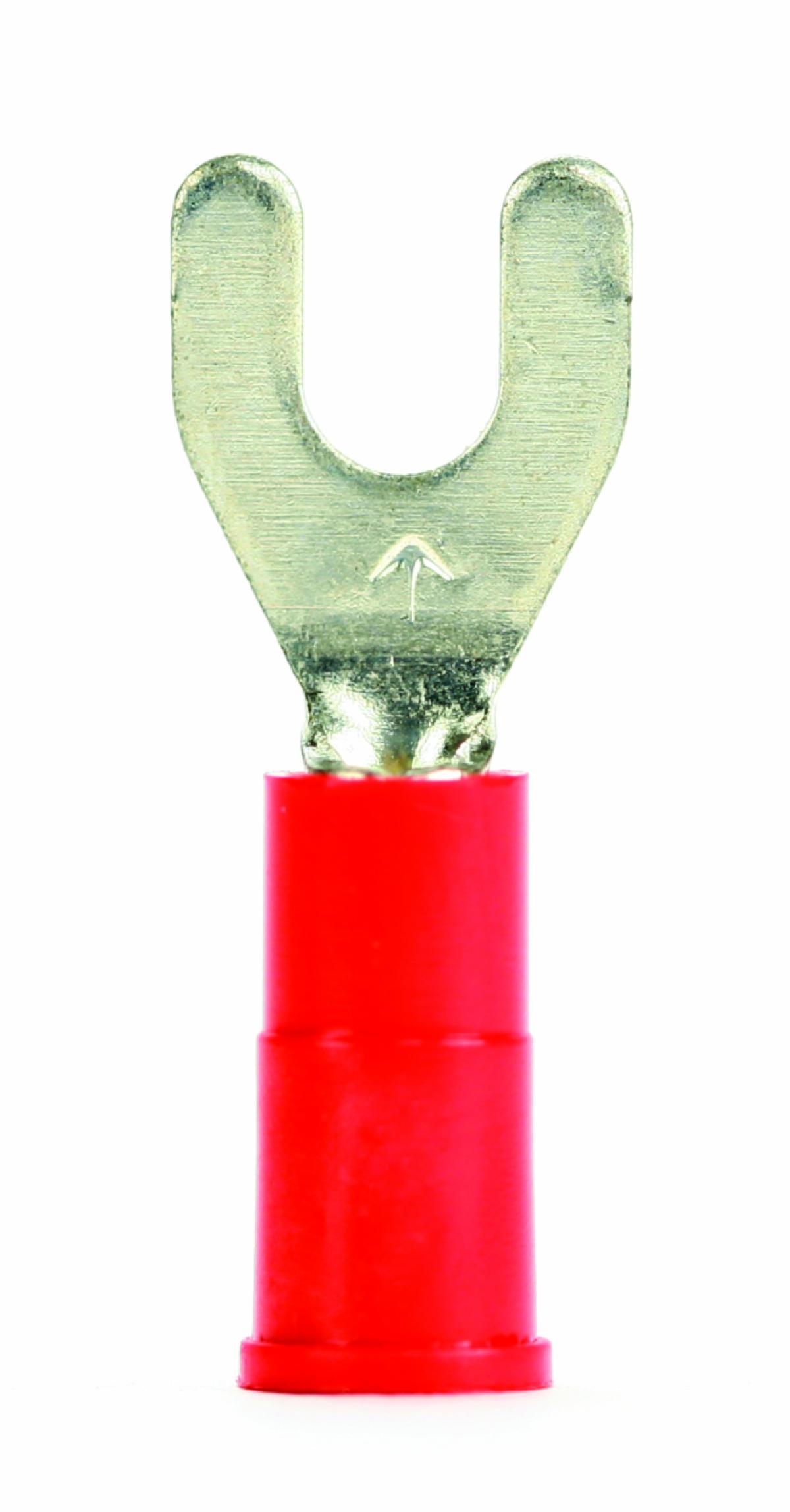

3M™ Fork Terminal, Vinyl Insulated Butted Seam 22-18 AWG, 94771, 31-8-P

3M™ Fork Terminal, Vinyl Insulated Butted Seam 22-18 AWG, 94771, 31-8-P

Part Number 94771
3M ID 7010349249
UPC 00054007947714

Insulation Material	Vinyl
Maximum Conductor Size (Imperial)	18 AWG
Minimum Conductor Size (Imperial)	22 AWG

Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Wider-tongue design for use on free-standing studs

View more details

Details

Highlights

Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Wider-tongue design for use on free-standing studs

3M™ Highland™ Vinyl Insulated Butted Seam Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Highland™ Vinyl Insulated Butted Seam Standard Forkl is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

Typical properties

Details

Brands	3M™
Fork Type	Standard
Insulation Material	Vinyl
Maximum Conductor Size (Imperial)	18 AWG
Maximum Conductor Size (Metric)	.0823 mm²
Minimum Conductor Size (Imperial)	22 AWG
Minimum Conductor Size (Metric)	0.326 mm²
Terminal Style	Standard

Resources

3M™ Vinyl Insulated Butted & Brazed Ring Tongues and Forks (red), 11, 31, 41, BS-21, BS-31, L-11 and SS-31 Series

Regulatory Data Sheet

Document Number: MSDS_3678653_US_EN_RDS

(PDF)
