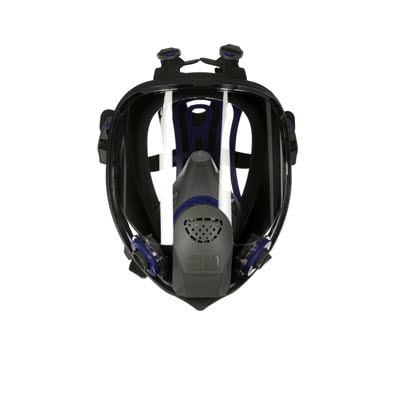

3M™ Ultimate FX Full Facepiece Reusable Respirator FF-403, Large, 4 EA/Case
- Part Number FF-403
- 3M Product Number 89424
- 3M ID 7100001847
- UPC 50051135894243
Details
Highlights
- Recommended applications include assembly, chemical cleanup/handling, furnace operations, grinding, laboratories, machining, masonry, painting, sanding, sawing, and more
- Meets the requirements of ANSI Z87.1-2003 standard for eye and face protection
- Large lens for excellent field of vision, and treated with Scotchgard™ Protector to help cause some liquids to bead up for easier removal
- Silicone face seal helps provide comfort and durability, and is easy to clean
- Six-strap harness helps provide a secure comfortable fit
- Use with 3M™ Particle Filters 2000, 2200, 7000, or 5000 Series to help filter certain particulates
- Use with 3M 6000 Series Gas/Vapor Cartridges to help filter a broad range of gases and vapors
- Use with 3M 6000 Series Combination Cartridges to help filter particulates in addition to gases and vapors
- Compatible with 3M™ TR-600 and TR-800 powered air and Dual Airline supplied air systems against a variety of gases, vapors, and particulate hazards
- Head cradle helps reduce pressure points and hair pulling
- For workplace/occupational use only
Designed to help protect your workforce from certain airborne contaminants when used with 3M cartridges and filters, the 3M™ Ultimate FX Full Facepiece Reusable Respirator FF-400 Series helps protect your employees from many respiratory hazards in a variety of environments.
The 3M™ Ultimate FX Full Facepiece Reusable Respirator FF-400 Series helps provide protection against certain airborne contaminants while keeping your vision clear with the Scotchgard™ protected lens. Scotchgard™ protection makes it possible to wipe paints, stains and other liquids off the large lens. Versatile—use with 3M particulate filters, gas/vapor cartridges and supplied air systems. The 3M™ Cool Flow ™ Valve helps make breathing easier. Passive speaking diaphragm enhances communications, making it possible to be understood when talking. These features combine to make extended wear of the facepiece more comfortable and practical to use while helping to provide protection against certain airborne contaminants.
A number of additional comfort and convenience features have been built into the facepiece, including a head cradle to reduce pressure points and hair pulling, a soft silicone nose cup and faceseal to cushion heavy contact areas, bonded silicone gaskets to prevent loose gaskets from getting lost, and attachments that easily twist on and off. The facepiece fits securely with six straps that snugly wrap around the head, eliminating shifting that can distract on the job and require frequent readjustment. The straps are extremely durable, having been tested with over one million pulls. Recommended applications include assembly , chemical clean-up, chemical handling, chemical splash, chipping, chiseling, cleaning, furnace operations, grinding, laboratories, machining, masonry, painting, pouring/casting, sanding, sawing, and welding. Industries in which this facepiece are commonly used include agriculture, construction, general manufacturing, pharmaceuticals, and primary metals.
NIOSH, a Federal government regulatory agency, has tested and approved the FF-400 with 3M cartridges, filters or supplied air systems to help reduce breathing certain airborne contaminants. The FF-400 Series facepiece also meets the impact requirements of the ANSI Z
Typical properties
| Accessories | Yes |
| Assigned Protection Factor | 10 Qualitative Fit Test, 50 Quantitative Fit Test |
| Brands | 3M™ |
| Cartridge or Filter Included | No |
| Case Quantity | 4/case |
| Clip-on Welding Shield | No |
| Compatible with 3M™ PAPR Systems | Yes |
| Compatible with 3M™ Supplied Air System | Yes |
| Compatible with Welding Shield | No |
| Connection Type | Bayonet |
| Cool Flow™ Exhalation Valve | Yes |
| Drop-down Feature | No |
| Enhanced Comfort | Yes |
| Enhanced Durability | Yes |
| Exhalation Valve | Yes |
| Eye Protection | Yes |
| Facepiece Type | Full Facepiece Reusable |
| Features | 3M™ Cool Flow™ Valve, Large Lens for Enhanced Field of View, Scotchgard™ Lens Coating |
| Harness type | 6 point |
| Hazard Type | Silica, Mold |
| Maintenance Free | No |
| Mask Size | Large |
| Material | Silicone, Nylon |
| Product Code | FF-403 |
| Product Color | Black |
| Product Series | FF-400 |
| Product Type | Full Face Respirator |
| Purpose | Full Facepiece Respirators |
| Recommended Application | Grinding, Welding, Machining, Chemical Clean-up, Composite Finishing, Final Finish, Paint Preparation, Chemical Handling, Chemical Splash, Assembly & Mechanical, Laboratories, Chipping, Pouring/Casting, Chiseling, Furnace Operation, Sawing, Sanding, Masonary, UV Protection, Cleaning, Painting |
| Recommended Industry | Facility Sanitation, Food Safety, Marine, Food Processing, Industrial Maintenance, Construction, General Manufacturing, Mining, Oil & Gas, Transportation, Design & Construction, Pharmaceutical, Food & Beverage Manufacturing, Heavy Industrial |
| Silicone Faceseal | Yes |
| Six-point Head Harness | Yes |
| Smallest Saleable Unit | Each |
| Spare Parts | Yes |
| Speaking Diaphragm | Yes |
| Specifications Met | NIOSH approved with various cartridges, filters and supplied air systems |
| Suspension Type | 6 Point Strap |
