3M™ Double Coated Tape 9628FL immediately bonds to high and low surface energy materials. The PET polyester film liner provides dimensional stability and improved handling with ease in die cutting and laminating applications.
The 360 Advantage
3M™ Double Coated Tape 9628FL (PDF, 34.60 Kb) features 3M™ Quick Bonding Adhesive 360 which provides high bond strength with low odor and little or no oozing. The noted advantages of 360 adhesive are its extremely high peel adhesion and equally high adhesion on both polypropylene and steel substrates. It offers more bond strength with less adhesive as well as quick stick to many low surface energy substrates.
Understanding Adhesive Transfer Tapes
Adhesive transfer tapes are rolls of pressure sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off. A variety of adhesive properties and liners are available to meet requirements for applications such as nameplate attachment to high and low surface energy plastics, appliance graphic overlays that perform in high temperatures, foam gasketing, web splicing, signs, posters, banners, point-of-purchase displays, and more.
Pressure Sensitive Adhesive properties are frequency and temperature sensitive. 3M has developed Material Data Cards (MDCs) for common 3M PSAs for use with many commercially available FEA software applications. Learn more.
| Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Back Side Adhesive Thickness (Imperial) | 0.75 mil |
| Back Side Adhesive Thickness (Metric) | 0.019 mm |
| Back Side Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Backing (Carrier) Material | Polyester |
| Backing (Carrier) Thickness (Imperial) | 0.5 mil |
| Backing (Carrier) Thickness (Metric) | 0.013 mm |
| Brands | 3M™ |
| Face Side Adhesive Thickness (Imperial) | 0.75 mil |
| Face Side Adhesive Thickness (Metric) | 0.019 mm |
| Face Side Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Industries | Aerospace, Converter Solutions, Medical, Transportation, Woodworking, Automotive, Specialty Vehicle, Electronics, General Industrial |
| Maximum Operating Temperature (Celsius) | 177 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 350 ℉ |
| Minimum Operating Temperature (Celsius) | -40 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -40 ℉ |
| Primary Liner | PET |
| Primary Liner Color | Transparent |
| Primary Liner Thickness (Imperial) | 2 mil |
| Primary Liner Thickness (Metric) | 0.05 mm |
| Product Color | Transparent |
| Smallest Saleable Unit | Roll |
| Total Tape Thickness without Liner (Imperial) | 2 mil |
| Total Tape Thickness without Liner (Metric) | 0.05 mm |
| Units per Case | 1.0 |
| Overall Length (Imperial) | 60 yd |
| Overall Length (Metric) | 54.86 m |
| Overall Width (Imperial) | 54 in |
| Overall Width (Metric) | 1371.6 mm |

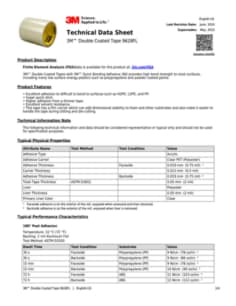

Data Sheets
(PDF, 99KB)
