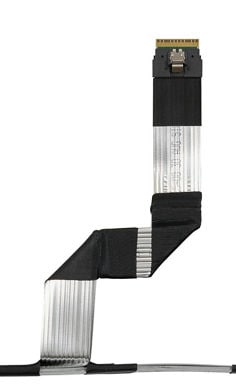

3M™ SlimLine Twin Axial Cable Assembly SFF-8654 8ESx Series
- 3M ID B5005568006
- UPC 50068060598405
Details
Highlights
- Flexible, foldable twin axial cable construction enables unique packaging configurations
- SI performance is minimally impacted by folding and bending
- Extremely tight bend radius
- x4 and x8 configuration
- SFF-8654 straight andf right angle
- PCIe (85 ohm) and SAS (100 ohm) applications
- Signal wire size 30 AWG or 31 AWG
- Standard lengths 0.5 m, 0.75 m, and 1 m
- Custom folded assemblies available
- See 3M.com/SDS for regulatory information
3M™ SlimLine Twin Axial Cable Assembly SFF-8654 8ESx Series is a high-performance cabling solution for SAS and PCIe applications, ideal for high-density data centers. This 3M cable features a low-profile ribbon construction that allows for bending and folding without compromising signal integrity, making it perfect for tight spaces. Available in x4 and x8 configurations with standard lengths of 0.5 m, 0.75 m, and 1 m, it supports both PCIe (85 ohm) and SAS (100 ohm) applications.
The 3M cable design helps optimize space utilization, enhances cooling by minimizing airflow obstruction, and streamlines system assembly. Each fold impacts impedance by no more than two to three ohms, ensuring excellent signal integrity even with multiple folds. Custom folded assemblies can be ordered upon request, and the cable is available with and without sidebands.
Typical properties
| Brands | 3M™ |
| Characteristic Impedance | 85 ohms |
| Connector Type (End A) | ST |
| Connector Type (End B) | ST |
| Form Factor | SlimLine |
| Number of Cable Assembly Lanes | x4, x8 |
| Product Series | 8ES4, 8ES8 |
| Product Usage | Backplane/Midplane, Board-to-board, Mid-board Cables |
| Protocol | PCIe©, SAS |
| Standard Size | 0.5 m, 0.75 m, 1.0 m |
| Tech Sheet Number | TS-2811 |
| Wire Gauge (Imperial) | 30 AWG, 31 AWG |
| Overall Length (Imperial) | 1.64 ft, 2.46 ft, 3.28 ft |
| Overall Length (Metric) | 0.5 m, 0.75 m, 1 m |
Resources
Legal disclaimer
The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes.
3M products shown on this website may not be available in all geographic regions or may not be available at this time. Please contact your local sales representative to determine product availability.
