3M™ Camera Link Industrial Camera Cable Assembly, MDR/SDR, 1Mx26-xFxx Series
- 3M Product Number 1Mx26-xFxx Series
- 3M ID B5005510004
- UPC 00051111657850
Details
Highlights
- MDR-to-SDR assembly for Camera Link cable extension
- Features straight MDR receptacle connector with EMI shield junction shell on one end and a straight SDR plug connector on the other
- Excellent for use with 1M x 26-x5xx or 14 x 26 cables
- Base-medium and full configurations are available
- Available for motion and non-motion applications
- MDR receptacle connector features EMI shielded junction shell
- Thumbscrews add connection reliability even for repetitive motion applications
- Camera Link® compatible
- RoHS2 compliant

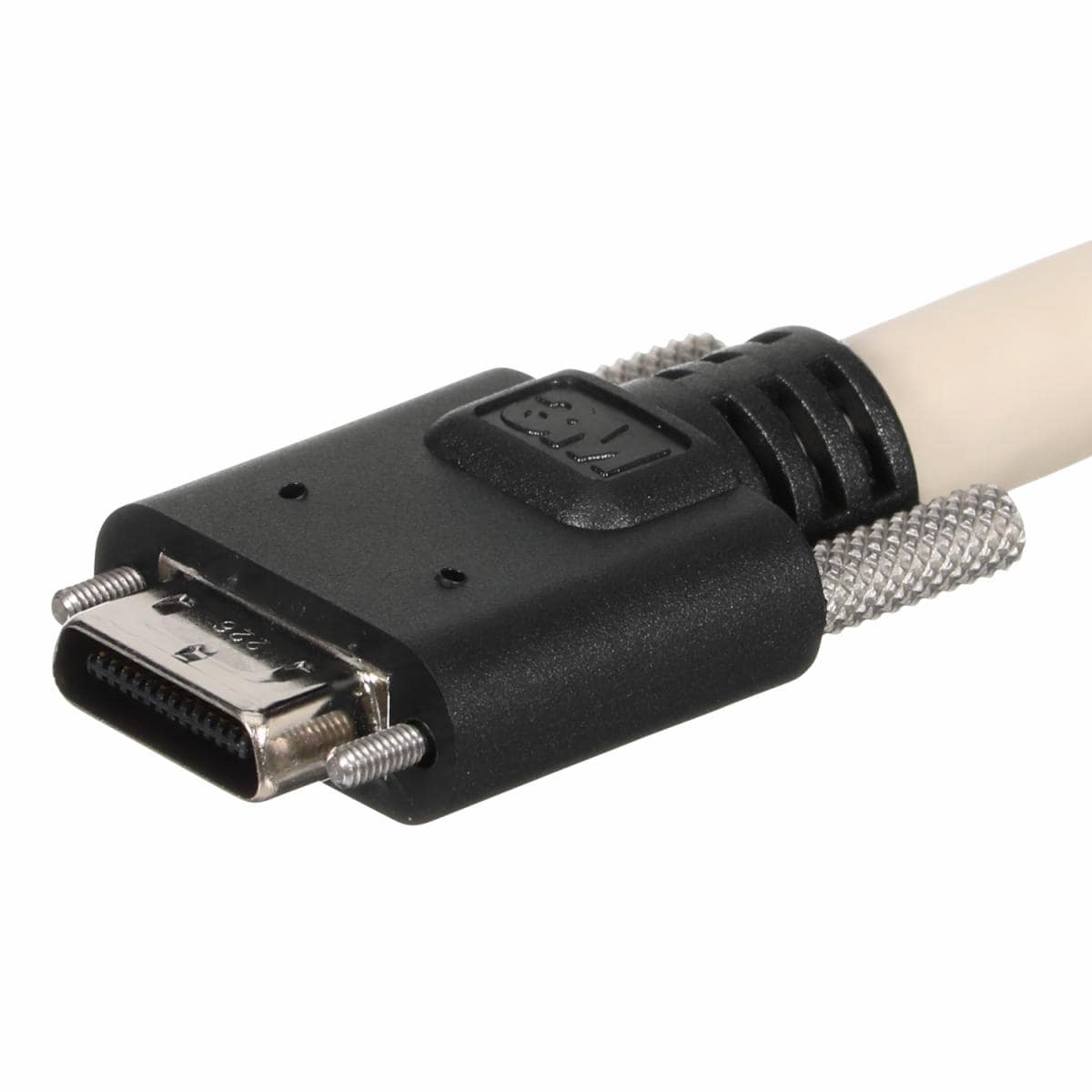

3M™ Camera Link Industrial Camera Cable Assembly, MDR/SDR, 1Mx26-xFxx Series is ideal for cable extensions in Camera Link applications. It features an MDR 26-position receptacle connector with EMI shielded junction shell on one end and an SDR 26-position plug connector on the other. It is excellent for use with 1M x 26-x5xx or 14 x 26 cables to extend Camera Link system applications. 3M™ Camera Link Industrial Camera Cable Assembly, MDR/SDR, 1Mx26-xFxx Series is part of a wide variety of total interconnect solutions from 3M – one of the originators of the Camera Link standard.
This industrial camera cable assembly is available in base-medium and full configurations as well as versions for non-motion and motion applications to meet a broad range of electrical and mechanical requirements. Thumbscrews provide rugged retention even for applications requiring repetitive motion.
Typical properties
| Application | High-speed Data Transmission, High-flexibility Connecting, High-speed Connecting |
| Brands | 3M™ |
| Cable Length (Imperial) | 3.281 ft, 6.562 ft, 16.404 ft, 32.808 ft |
| Cable Length (Metric) | 1 m, 2 m, 5 m, 10 m |
| Cable Outside Diameter (Imperial) | 0.354 in |
| Cable Outside Diameter (Metric) | 9 mm |
| Connector Style (End A) | Receptacle |
| Connector Style (End B) | Plug |
| Connector Type (End A) | MDR |
| Connector Type (End B) | SDR |
| Product Color | Beige |
| Product Series | 1Mx26-xFxx |
| Product Usage | Frame Grabbers, Control Units, Cameras |
| Protocol | CameraLink |
| Tech Sheet Number | TS-2799 |
