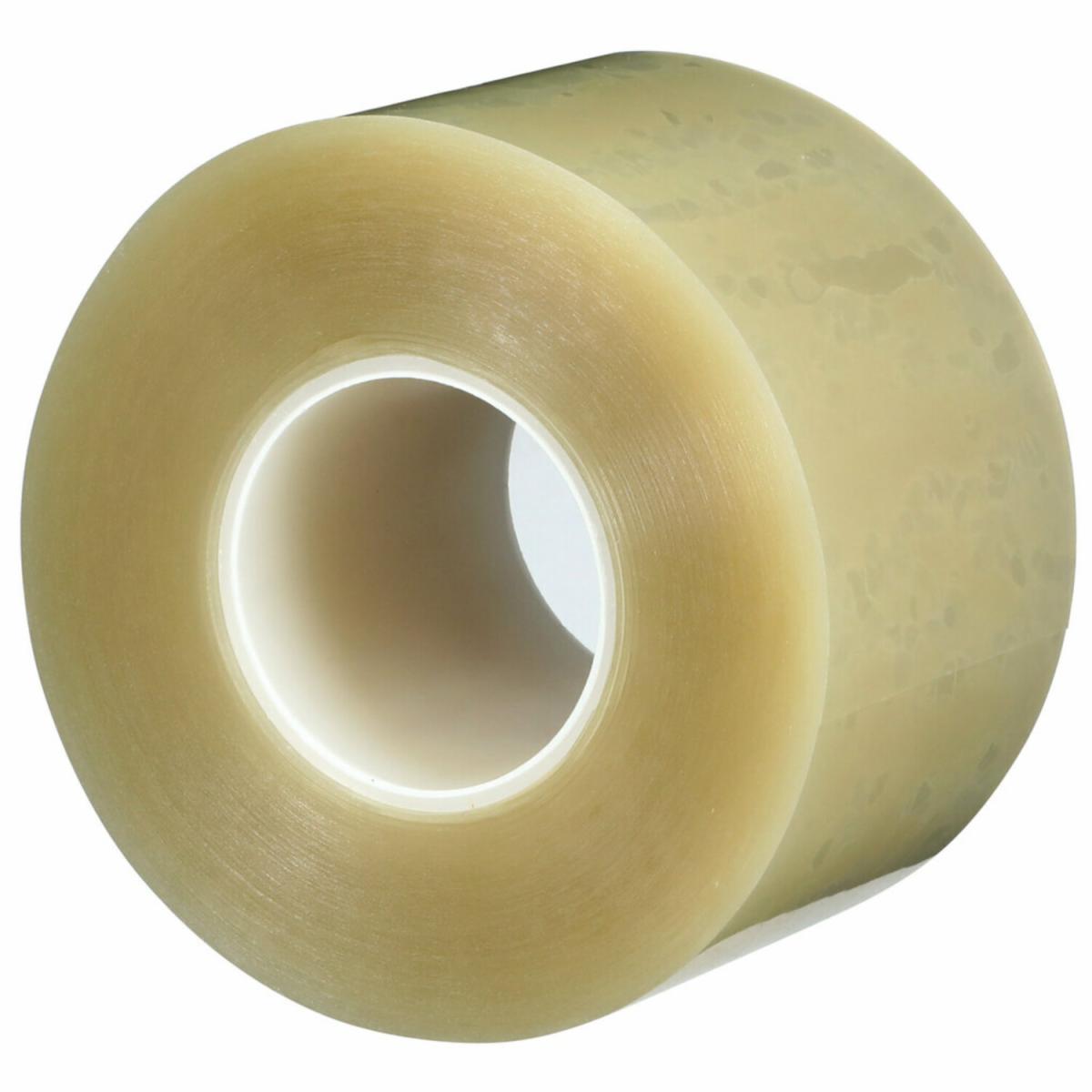

3M™ Double Coated Tape PBT539
- 3M Product Number PBT539
- 3M ID B5005501000
Details
Highlights
- Enables dimensional stability and excellent handling during die cutting and laminating
- Easy handling for rigid substrate-to-substrate bonding
- Clean removability from common surface types used in wafer manufacturing
- Film carrier enhances the die cutability of the finished product
- Polyester liner provides moisture stability
- Polyester film carrier provides good workability when laminating to multiple surface types
3M™ Double Coated Tape PBT539 is a semiconductor wafer manufacturing tape designed for bonding and debonding during the semiconductor wafer manufacturing process.
A chemical mechanical planarization (CMP) tape, 3M™ Double Coated Tape PBT539 features a thin polyester film carrier for dimensional stability and excellent handling with ease of die cutting and laminating. It comes with 3M™ Adhesive 360 on either side, an acrylic-based adhesive that bonds to most surfaces, including high-surface-energy and low-surface-energy materials.
Typical properties
| Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Application | Laminating, CMP, Attaching, Bonding |
| Back Side Adhesive Thickness (Imperial) | 3.5 mil |
| Back Side Adhesive Thickness (Metric) | 88.9 Micron |
| Back Side Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Backing (Carrier) Material | PET |
| Backing (Carrier) Thickness (Imperial) | 2 mil |
| Backing (Carrier) Thickness (Metric) | 50.8 Micron |
| Face Side Adhesive Thickness (Imperial) | 3.5 mil |
| Face Side Adhesive Thickness (Metric) | 88.9 Micron |
| Face Side Adhesive Type | Quick Bond Acrylic Adhesive 360 |
| Indoor/Outdoor | Indoor |
| Industries | Electronics |
| Maximum Operating Temperature (Celsius) | 70 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 158 ℉ |
| Minimum Operating Temperature (Celsius) | 10 ℃ |
| Minimum Operating Temperature (Fahrenheit) | 50 ℉ |
| Primary Liner | PET |
| Primary Liner Color | Transparent |
| Primary Liner Thickness (Imperial) | 3 mil |
| Primary Liner Thickness (Metric) | 76.2 Micron |
| Product Color | Tan |
| Product Form | Roll |
| Product Usage | CMP Pads, Polishing Pads |
| Shelf Life | 36 Month |
| Total Tape Thickness without Liner (Imperial) | 9 mil |
| Total Tape Thickness without Liner (Metric) | 0.229 mm |
Resources

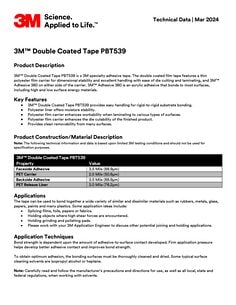

Data Sheets
