Details
Highlights
- Robust, compact design
- Ergonomic, adjustable head suspension
- GRIND and CUT mode functionality, when using G5 auto darkening filters
- Available in two different Auto-Darkening Lens options (VC/TW)
The 3M™ Speedglas™ Welding Helmet, G5-03 Pro Air is designed for the versatile welder. Customizable airflow, an assortment of head covers, neck protectors, and shrouds, as well as an optional task light to allow better visibility of the work piece. G5-03 Pro Air auto-darkening filters (ADFs) all feature our Natural Color Technology. With the G5VC ADF, the welder can leverage variable color technology to view the weld while in dark state through either warm, cool, or natural color tones as different applications, lighting, and materials, may warrant different colors and contrasts. With the G5TW ADF, there is a tack welding mode that uses an intermediate shade 5 light state to help minimize eye strain during tack welding applications. If an arc is not struck within 2 seconds, the welding filter will switch back to the normal light state of shade 2.5.

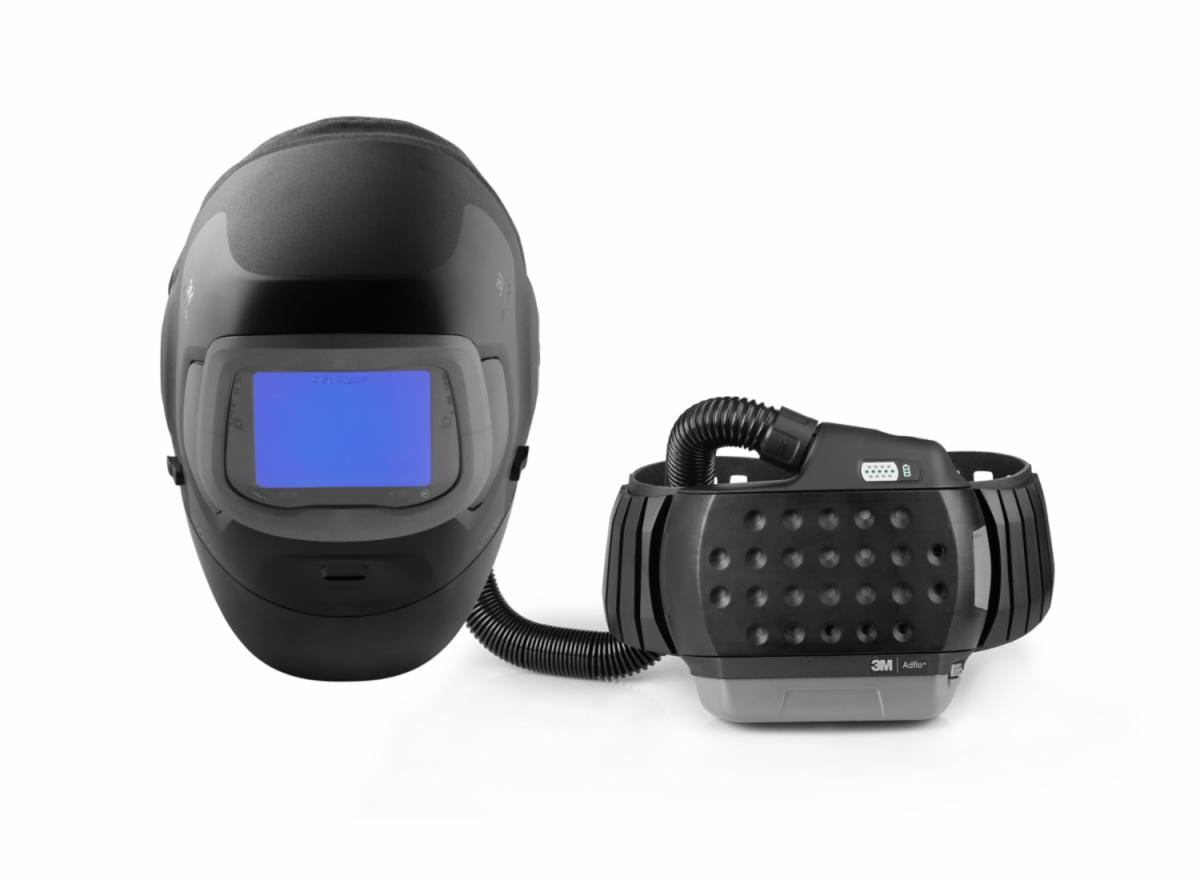

3M™ Adflo™ Powered Air Purifying Respirator System with 3M™ Speedglas™ G5-03 Pro Air Welding Helmet provides all of the benefits of our convenient Adflo™ Powered Air Purifying Respirator system. For workers in versatile welding environments, 3M™ Adflo™ Powered Air Purifying Respirator with Speedglas™ G5-03 Pro Air Welding Helmet system provides High-Efficiency particulate respiratory protection for welders in a robust yet compact design with ergonomic, adjustable head suspension. The 3M™ Adflo™ Powered Air Respirator has a High-Efficiency particulate filter that can be “stacked” onto an optional 3M™ Adflo™ Filter (not included) for additional protection against certain vapours or a Nuisance Odour Pad Assembly. Audible and visual alarms signal low airflow and low battery charge. Available in two different Auto-Darkenig Lens options (VC/TW). G5 Series storage/carry bag included.
Typical properties
| ADF Dark State Shades | Variable Dark Shade 8-13, Variable Dark Shade 8-14 |
| ADF Model | G5VC, G5TW, G5-01/03VC, G5-01/03TW, None |
| ADF Technology | Natural Color, Variable Color, TAP, Tack Weld Mode |
| Air Source | PAPR |
| Assigned Protection Factor | 25 |
| Battery Life | Turbo: approx. 7 - 9 Hours, ADF up to 1500 hours |
| Battery Type | Turbo: Lithium-ion. ADF: Lithium 3V, ADF: Lithium 3V (CR2450), PAPR: Lithium ion, Turbo: Lithium-ion |
| Brands | Speedglas™ |
| Breathing Tube Grade | Adjustable |
| Cartridge or Filter Included | HE Filter, Yes |
| Cartridge or Filter Type | Particulate, High Efficiency Particulate |
| Case Quantity | 1 |
| Charging Time | Turbo: approx. 4.5 hours |
| Comes with Auto-Darkening Filter (ADF) | Yes, No |
| Compatible Respirator | 3M Adflo Turbo Assembly with High Altitude Compensation |
| Compatible Welding Helmet | G5 Series Welding Helmets |
| Features | Eye & Face Protection |
| Grinding Option | ADF with Grind Mode |
| Headgear Type | Welding Helmet with Respiratory Assembly, Welding Helmet |
| Lens Shade | 2.5, 5, 8-13, 5, 8 - 13, 5, 8-14, 3, 5, 8-14 |
| Lens Type | Variable Color (VC), Natural Color (NC), Auto-darkening, No Lens |
| Light State | Shade 2.5, Shade 3, None |
| NIOSH Cartridge or Filter Assigned Color Coding | Magenta |
| Number of Sensors | 4 |
| Product Color | Black |
| Product Series | G5 |
| Product Type | Welding Respiratory Systems, Auto-darkening Welding Helmet with Powered Air Respirator |
| Protection Type | Particulate |
| Recommended Application | Welding |
| Recommended Industry | General Manufacturing |
| Safety Helmet Included | No |
| Sensitivity | 5 Level (TIG>1A & MIG/MAG, Stick) |
| Side Windows | Yes |
| Specifications Met | ANSI Z87.1, CSA Z94.3 |
| Suspension Model | G5 |
| Switching Time (Light-Dark) | 0.1 ms @ 73°F (23°C) |
| UV/IR Protection | Shade 13 (permanent), Shade 14 (permanent) |
| User Type | Professional |
| Viewing Area (Imperial) | 2.8 in x 4.3 in |
| Viewing Area (Metric) | 73 mm x 107 mm, 73 mm x 109 mm |
| Welding Process | Most types of arc welding, arc detection down to 1 amp TIG, grinding. |
