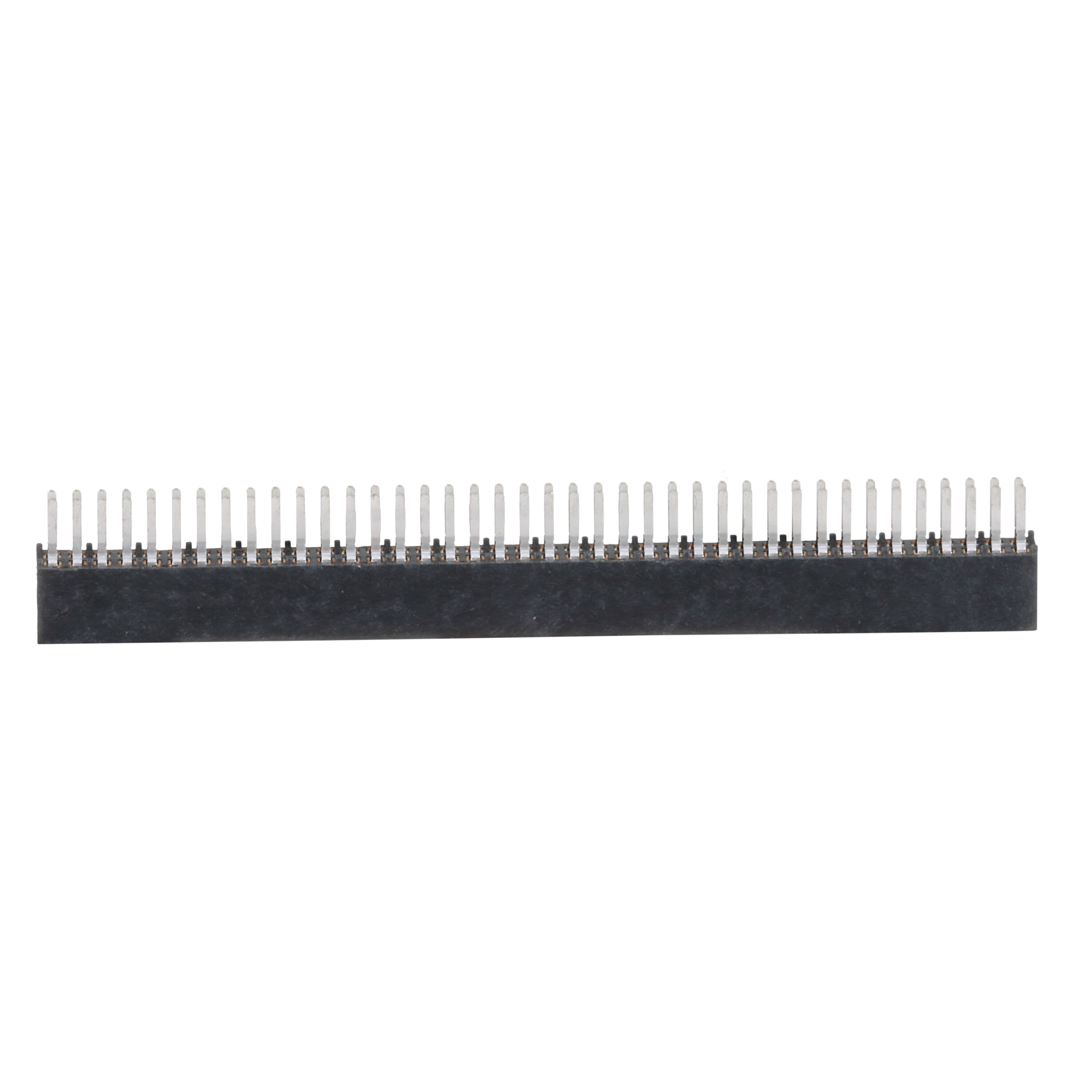

3M™ Boardmount Socket .050" (1.27mm) 9X9 Series

3M ID B5005489002
UPC 00051131129375

.050 spacing (1.27mm)

6-80 position

Available in surfacemount and through-hole contacts

View more details

Frequently viewed resources

Tech Data Sheet (PDF, 1MB)

Find a part

Details

Highlights

.050 spacing (1.27mm)
6-80 position
Available in surfacemount and through-hole contacts
Ideal for industrial applications

3M™ Boardmount Socket .050" (1.27mm) 9X9 Series offers space saving design at half the pitch of standard .100 boardmount sockets. The 3M socket .050" 9X9 series is avaiable in surfacemount and through-hole contacts. It helps enable design flexibility in board to board and wire to board for small devices.

Typical properties

Details

Contact Base Material	Copper Alloy
Current Rating	1.0 A
Insulation Color	Black
Insulation Material	Glass Filled Polyester (LCP)
Number of Contact Rows	2
Number of Contacts	6 , 8 , 10 , 16 , 20 , 26 , 30 , 40 , 50 , 80
PCB Mounting Angle	Straight
PCB Mounting Style	Surface Mount
Pitch (Imperial)	0.05 in
Pitch (Metric)	1.27 mm
Specifications Met	UL 94V-0
Tech Sheet Number	TS-2780
