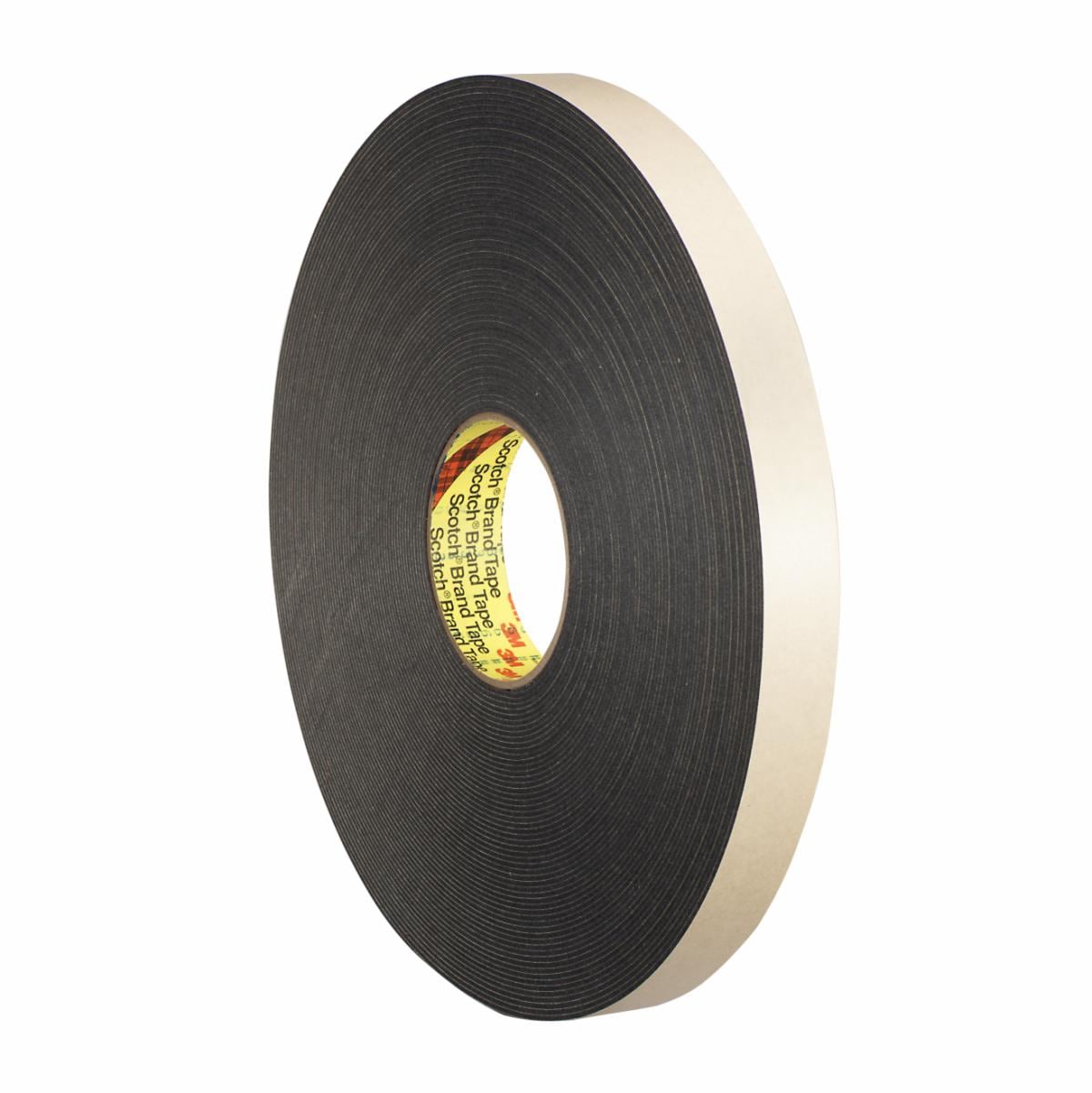

3M™ Double Coated Polyethylene Foam Tape 4496 Black is a closed-cell, polyethylene foam carrier. It is formulated for more demanding indoor and outdoor mounting and bonding applications. A noted feature of Foam Tape 4496 Black is its ability to conform and bond to irregular surfaces. It offers good temperature resistance and long term durability.
Flexible Foam Tape for Irregular Surfaces
Speed up the mounting process and achieve a more aesthetically pleasing installation with 3M™ Double Coated Polyethylene Foam Tape 4496 Black. This 1/16 in. thick polyethylene foam tape is known for its high ultimate adhesion and reliable performance across many surfaces. One of its noted features is its ability to conform to irregular substrates. It provides high ultimate adhesion to many plastics and is formulated for demanding indoor and outdoor general purpose mounting and bonding applications. Common uses include automotive mirror bonding, decorative trim, nameplates and other general purpose mounting applications.
Recommended Application
Benefits of Double Coated Tape
3M double coated tapes offer speed, strength and improved aesthetics to your mounting application. Instead of mechanical fasteners such as screws, bolts and studs, double coated tapes leave no puncture holes. Our tapes can be easily applied by hand or with a dispenser, with no special application equipment required for a firm bond.
What is Double Coated Tape?
In general, double coated tape is composed of a foam, paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. Applications for double coated tape are found in construction, fabrication, arts, and hobby. For bonding rough or irregular surfaces, 3M™ Double Coated Foam Tapes fill gaps and distribute stress uniformly over the bonded area.
| Adhesive Type | Acrylic |
| Application | Ideal for light-duty attaching and mounting tasks. |
| Backing (Carrier) Material | Polyethylene Foam |
| Brands | 3M™ |
| Density (Imperial) | 4 lb/ft³, 6 lb/ft³ |
| Density (Metric) | 65 kg/m³ |
| Indoor/Outdoor | Indoor/Outdoor |
| Industries | General Industrial |
| Maximum Operating Temperature (Celsius) | 70 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 158 ℉ |
| Minimum Operating Temperature (Celsius) | -30 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -20 ℉ |
| Number of Adhesive Sides | Double-sided |
| Primary Liner | Paper |
| Primary Liner Color | Brown, Tan |
| Primary Liner Thickness (Imperial) | 4 mil |
| Primary Liner Thickness (Metric) | 0.1 mm |
| Product Color | Black |
| Product Type | Tape |
| Shelf Life | 24 Month |
| Smallest Saleable Unit | Roll |
| Tensile Strength (Imperial) | 40.0 lb/in |
| Tensile Strength (Metric) | 275 kPa |
| Total Tape Thickness without Liner (Imperial) | 62 mil |
| Total Tape Thickness without Liner (Metric) | 1.57 mm |
| Units per Case | 1.0, 6.0, 9.0, 12.0, 18.0, 24.0, 36.0 |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.9 m, 32.91 m |
| Overall Width (Imperial) | 0.25 in, 0.37 in, 0.5 in, 0.75 in, 1 in, 2 in, 18 in, 24 in, 48 in, 54 in |
| Overall Width (Metric) | 1.3 cm, 1.9 mm, 2.5 mm, 5.1 cm, 6.35 mm, 9.5 mm, 457.2 cm, 609.6 cm, 1219.2 mm, 1371.6 mm |

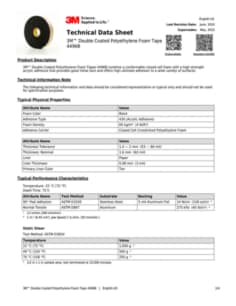

Data Sheets
(PDF, 107KB)
Ask a 3M Expert
Thank you for your interest in 3M Industrial Adhesive & Tape solutions. A 3M Representative will get back to you by phone or email.
Your form was submitted successfully.
An error has occurred while submitting. Please try again later...
| Overall Width (Metric) | 1.3 cm, 1.9 mm, 2.5 mm, 5.1 cm, 6.35 mm, 9.5 mm, 457.2 cm, 609.6 cm, 1,219.2 mm, 1,371.6 mm | |||
| Overall Width (Imperial) | 0.25 in, 0.37 in, 0.5 in, 0.75 in, 1 in, 2 in, 18 in, 24 in, 48 in, 54 in | |||
| Backing (Carrier) Material | Polyethylene Foam | |||
| Product Color | Black | |||
| Adhesive Type | Acrylic | |||
| Number of Adhesive Sides | Double-sided |
