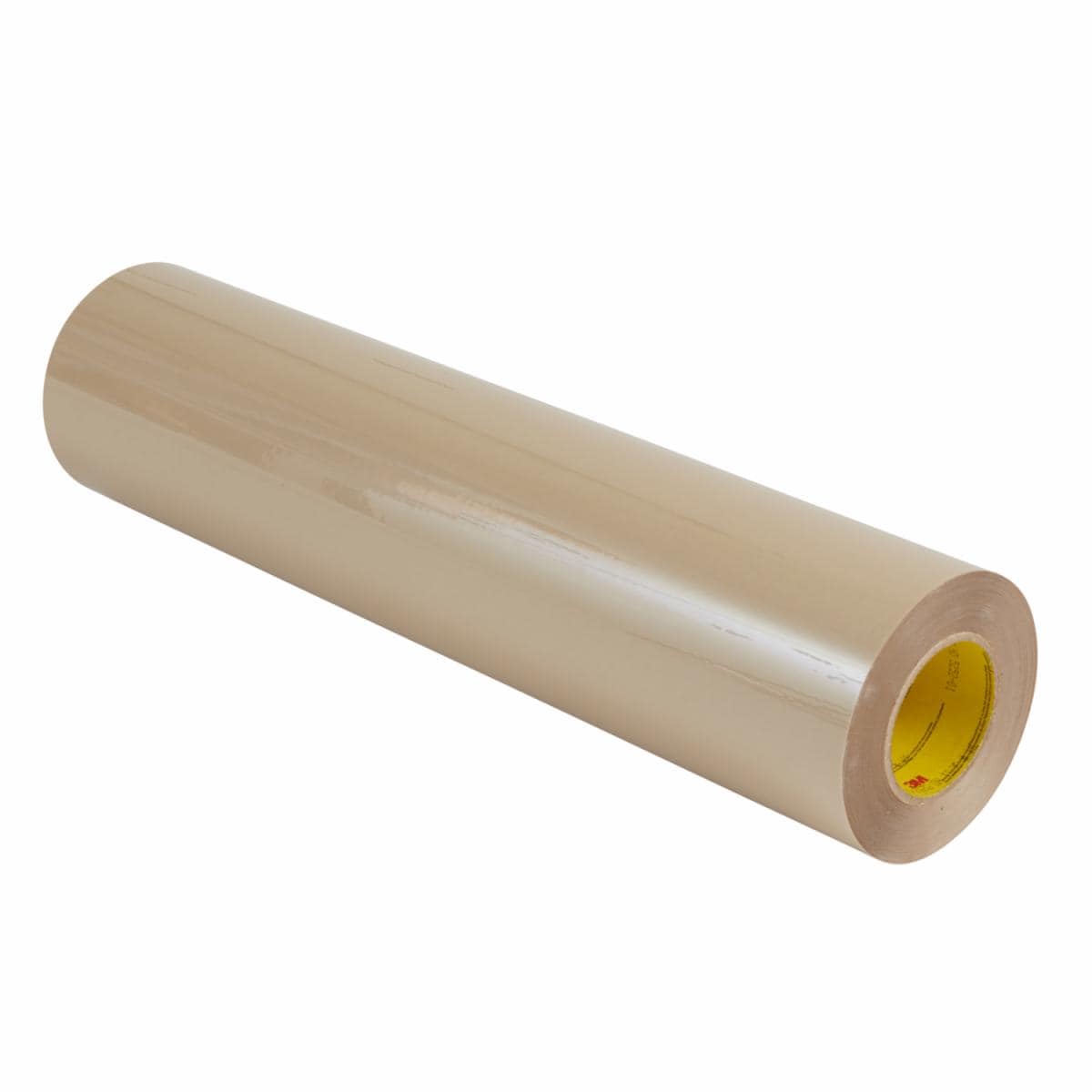

3M™ Double Coated Tape 9731-050 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.
| Adhesive Type | Acrylic/Silicone |
| Application | Gasket Assembly |
| Back Side Adhesive Thickness (Imperial) | 0.8 mil, 2.9 mil |
| Back Side Adhesive Thickness (Metric) | 0.02 mm |
| Back Side Adhesive Type | Silicone |
| Backing (Carrier) Material | Polyester Film |
| Backing (Carrier) Thickness (Imperial) | 0.056 mil, 0.095 mil, 0.5 mil |
| Backing (Carrier) Thickness (Metric) | 0.013 mm, 0.014 mm, 0.03 mm |
| Backing Material | Polyester |
| Brands | 3M™ |
| Carrier Material | Polyester Film |
| Carrier Thickness | 0.09514 mil, 0.5 none, 0.56 mil |
| Carrier Thickness (Metric) | 0.013 mm, 0.014 mm, 0.03 mm |
| Face Side Adhesive Thickness (Imperial) | 0.6 mil, 1.6 mil |
| Face Side Adhesive Thickness (Metric) | 0.015 mm, 0.04 mm |
| Face Side Adhesive Type | High Performance Acrylic Adhesive 350 |
| Industries | Signage, Aerospace, Electronics, Appliance, Medical, Transportation, Oil & Gas, Automotive, General Industrial, Metalworking, Specialty Vehicle, Military & Government |
| Master Size Length (Metric) | 98.8 m |
| Master Size Width (Metric) | 122 cm |
| Maximum Operating Temperature (Celsius) | 121 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 250 ℉ |
| Minimum Operating Temperature (Celsius) | -40 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -40 ℉ |
| Number of Adhesive Sides | Double-sided |
| Primary Liner | 58# Polycoated Kraft Paper (PCK) |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Imperial) | 4.2 mil |
| Primary Liner Thickness (Metric) | 0.11 mm |
| Product Color | Transparent |
| Product Form | Roll |
| Secondary Liner | Polyester Film |
| Secondary Liner Color | Transparent |
| Secondary Liner Thickness (Imperial) | 2.9 mil |
| Secondary Liner Thickness (Metric) | 0.07 mm |
| Shelf Life | 12 Month, 18 Month |
| Shelf Life in Months (From Date of Manufacture) | 12 , 18 |
| Smallest Saleable Unit | Roll |
| Total Tape Thickness without Liner (Imperial) | 2 mil |
| Total Tape Thickness without Liner (Metric) | 0.05 mm |
| Units per Case | 1.0 |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.91 m |
| Overall Thickness (Imperial) | 5.5 mil |
| Overall Width (Imperial) | 6 in, 48 in |
| Overall Width (Metric) | 122 mm, 152.4 cm |
