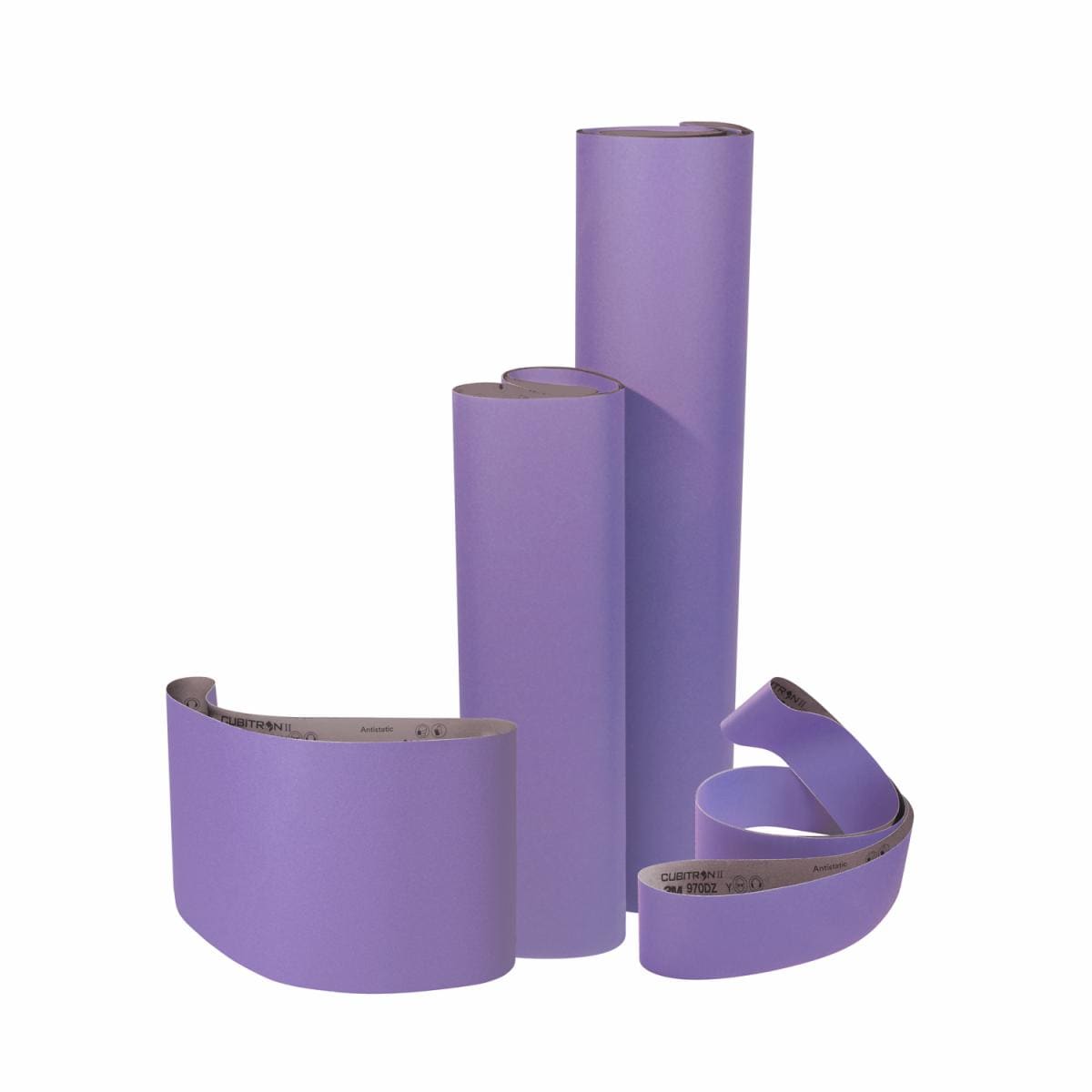

3M™ Cubitron™ II Cloth Belt 970DZ

Options available
| Select product options for IDs.

Open coat construction and anti-static treatment reduce loading for enhanced cut-rate and longer belt life

Heavyweight cloth backing offers durability for coarser grades and is especially suited to wide belt and edge sanding

Frequently viewed resources

Safety Data Sheet (PDF)

Overall Width (Imperial)

Overall Width (Metric)

Overall Length (Imperial)

Overall Length (Metric)

Grit

Select product options

Details

Highlights

Powered by 3M Precision-Shaped Grain that cuts faster and lasts longer than conventional abrasives
Open coat construction and anti-static treatment reduce loading for enhanced cut-rate and longer belt life
Heavyweight cloth backing offers durability for coarser grades and is especially suited to wide belt and edge sanding
Resin bond withstands high heat and pressure for longer service life
Performs well on all wood types
Available in grades 80+, 120+, 150+, 180+ and 220+

3M™ Cubitron™ II Cloth Belt 970DZ is a best-in-class heavy cloth sanding belt powered by our fast-cutting, long-lasting 3M Precision-Shaped Grain. The belt is designed for medium grade operations on wide belt or edge sanders.

A premium belt, built to perform.
3M™ Cubitron™ II Cloth Belt 970DZ resists heat in wood sanding applications, produces a uniform finish over the life of the product and helps eliminate burning during end-grain sanding. The heavyweight cloth backing provides durability, and the ceramic 3M Precision-Shaped Grain mineral is resin-bonded to the backing for reliable performance, even under high heat and pressure.

To reduce premature belt loading, 3M™ Cubitron™ II Cloth Belt 970DZ is engineered with an open-coat construction and an anti-static coating on the abrasive. The anti-static coating optimizes dust collection when used with an efficient dust collection system.

Powered by 3M Precision-Shaped Grain
Like all 3M™ Cubitron™ II Abrasives, this 970DZ Belt is powered by our fast-cutting, long-lasting 3M Precision-Shaped Grain. This triangular ceramic grain continuously fractures to create new, sharp cutting edges throughout the life of the belt. The result is a high-performance belt that helps boost productivity and can lower your shop’s overall abrasive spend.

Typical properties

Details

Abrasive Material	Precision Shaped Ceramic
Application	Sanding
Backing Material	Cloth
Backing Weight	Y Weight
Bond Type	Resin
Brands	Cubitron™
Equipment - Machines	Edge Sanders, Stroke Sanders, Wide Belt Sanders
Flex Type	Single-flex
Grit	80+, 120+, 150+, 180+, 220+
Industries	Woodworking
Product Color	Purple
Product Form	Belt
Splice Type	Film-lok, Sine-lok, Top Butt, Fabri-lok
Sub Applications	Edge Sanding, Stroke Sanding, Wide Belt Sanding
Sub Industries	Primary Wood

Dimensions and Classifications

Overall Length (Imperial)	48 in, 60 in, 74.5 in, 75 in, 80 in, 90 in, 90.5 in, 103 in, 148 in, 150 in, 166 in, 167 in, 305 in
Overall Length (Metric)	1219.2 mm, 1524 mm, 1892.3 mm, 1905 mm, 2032 mm, 2286 mm, 2298.7 mm, 2616.2 mm, 3759.2 mm, 3810 mm, 4216.4 mm, 4241.8 mm, 7747 mm
Overall Width (Imperial)	3 in, 4 in, 5 in, 6 in, 8 in, 10 in, 12 in, 25 in, 36 in, 37 in, 43 in, 52 in
Overall Width (Metric)	76.2 mm, 101.6 mm, 127 mm, 152.4 mm, 203.2 mm, 254 mm, 304.8 mm, 635 mm, 914.4 mm, 939.8 mm, 1092.2 mm, 1320.8 mm

Resources

3M™ Abrasive Products, Cubitron™ II 970DZ Belts, Rolls

Safety Data Sheets

Document Number: MSDS_4308177_US_EN

(PDF)
