3M™ Scotchlok™ Closed End Connectors

Options available
| Select product options for IDs.

Nylon-insulated barrel ensures a secure fit and offers reliable performance

A smooth, flared end provides quick wire insertion

Built-in wire stop for correct positioning

Frequently viewed resources

Tech Data Sheet (PDF, 31KB)

Maximum Conductor Size (Imperial)

Maximum Conductor Size (Metric)

Minimum Conductor Size (Metric)

Minimum Conductor Size (Imperial)

Select product options

Details

Highlights

Nylon-insulated barrel ensures a secure fit and offers reliable performance
A smooth, flared end provides quick wire insertion
Built-in wire stop for correct positioning

3M™ Scotchlok™ Closed End Connector is an electrical crimp sleeve connector with a copper insert that allows for fast splicing of copper conductors. The connector is nylon-insulated, and is 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C).

3M™ Scotchlok™ Closed-End Connector is color-coded for quick and easy identification of the wire size required. It has nylon insulation, making it perfect for use in light fixtures, appliances and other electrical OEM applications. It allows for quick wire insertion with a smooth, flared entry. A copper insert offers good conductivity. RoHS 2011/65/EU Compliant.

Typical properties

Details

Connection Width (Imperial)	0.25 in
Connection Width (Metric)	6.35 mm
Maximum Conductor Size (Imperial)	10 AWG, 16 AWG
Maximum Conductor Size (Metric)	1.5 mm², 6 mm²
Maximum Operating Temperature (Celsius)	105 ℃
Minimum Conductor Size (Imperial)	18 AWG, 22 AWG
Minimum Conductor Size (Metric)	.34 mm², 1 mm²
Terminal Type	Closed End Connector

Dimensions and Classifications

Overall Length (Imperial)	0.83 in, 1 in

Resources

3M™ Scotchlok™ Closed End Connector, Nylon Insulated, S11-A

Data Sheets

(PDF, 31KB)

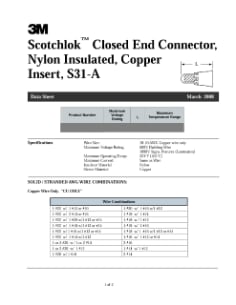

3M™ Scotchlok™ Clsd End Conn,Ny Insul,Copper Insert,S31-A

Data Sheets

(PDF, 31KB)
