  6. 3M™ Deadbreak T-Body w/Test point 635T, 35kV, 600A,1/Box

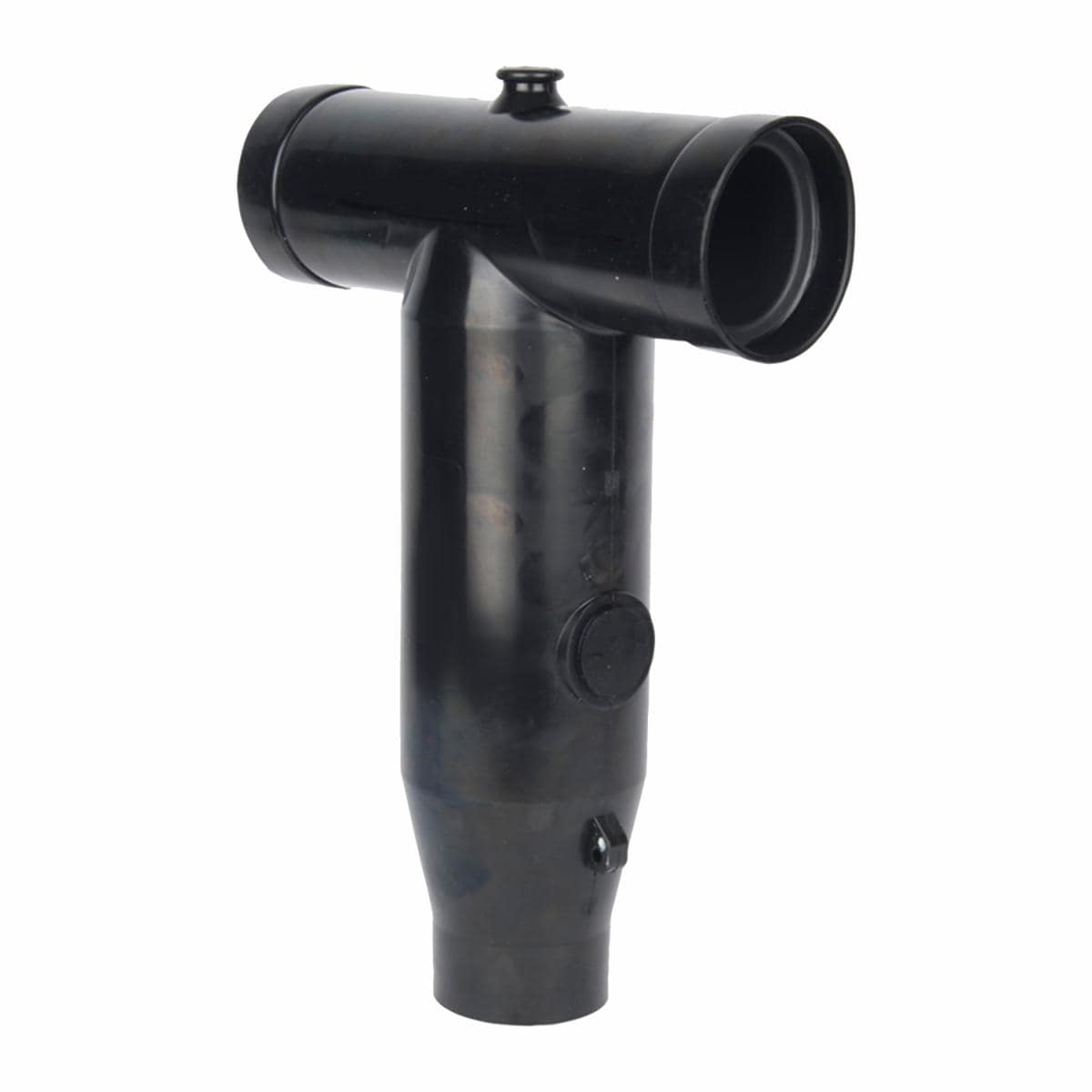

3M™ Deadbreak T-Body w/Test point 635T, 35kV, 600A,1/Box

  • 3M ID 7100248492
  • UPC 00051144062690

Meets IEEE Standard 386

Capacitive test-point

Fully shielded, deadfront connection

View more details
Frequently viewed resources
PDF (1) Copy 26Safety Data Sheet (PDF)

Details

Highlights
  • Meets IEEE Standard 386
  • Capacitive test-point
  • Fully shielded, deadfront connection
  • Interchangeability per IEEE standard 386

3M™ Deadbreak Equipment Connecton T-body is a safe and reliable method for terminating (equipment connection), splicing, add-on tap or dead-end of medium voltage power cable.

The Deadbreak T-body is a fully shielded, insulated, bolted connecting system.

Typical properties

Application

Cable Termination, Cable Splicing

Brands

3M™

Compatible With

Deadbreak Kit

Current Rating

600.0 A

Includes Compression Connector

No

Indoor/Outdoor

Outdoor

Material

EPDM Rubber

Maximum Operating Voltage

35 kV

Operating Temperature (Celsius)

90

Operating Temperature (Fahrenheit)

194

Product Type

Deadbreak T-body

Specifications Met

IEEE 386

Suitable for

One-conductor cable

Units per Case

1.0

Resources

Safety Data Sheets

Document Number: MSDS_4238218_US_EN

(PDF)
