3M™ Deadbreak AL Compression Lug

  • Options available
  • | Select product options for IDs.

Meets IEEE Standard 386 and ANSI C119.4

Connector can be used on aluminum or copper conductor

Crimp type connection

View more details
icn_down_arrow

Select product options

Details

Highlights
  • Meets IEEE Standard 386 and ANSI C119.4
  • Connector can be used on aluminum or copper conductor
  • Crimp type connection
  • Unthreaded

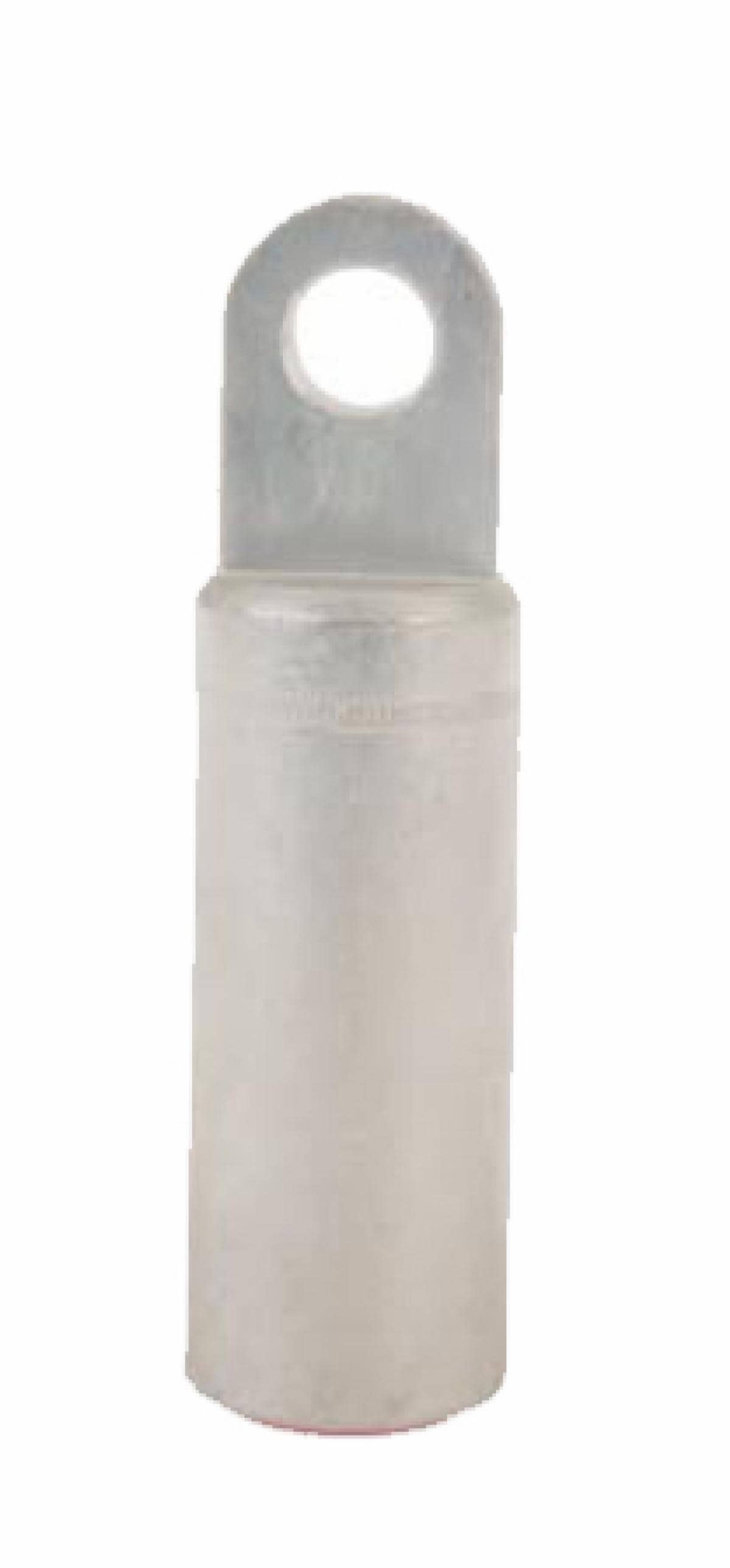

3M™ Deadbreak 1-hole, non-threaded aluminum compression lug for use on aluminum or copper conductor

3M™ Deadbreak 1-hole, non-threaded aluminum compression lug for use on aluminum or copper conductor to be used with 625 and 635 series deadbreak elbows.

Typical properties

Application

Cable Termination, Cable Splicing

Brands

3M™

Compatible With

Deadbreak Kit

Conductor Sizes (Imperial)

1 AWG, 2 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil, 300 kcmil, 350 kcmil, 450 kcmil, 500 kcmil, 600 kcmil, 650 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil, 1000 kcmil, 1250 kcmil

Includes Compression Connector

Yes

Indoor/Outdoor

Outdoor

Material

Aluminum

Maximum Operating Voltage

35 kV

Operating Temperature (Celsius)

90

Operating Temperature (Fahrenheit)

194

Product Type

Deadbreak Lug

Specifications Met

IEEE 386

Suitable for

One-conductor cable

Units per Case

1.0

Resources

Similar products

Conductor Sizes (Imperial) 1 AWG, 2 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil, 300 kcmil, 350 kcmil, 450 kcmil, 500 kcmil, 600 kcmil, 650 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil, 1000 kcmil, 1250 kcmil
Maximum Operating Voltage 35 kV
Product Type Deadbreak Lug
