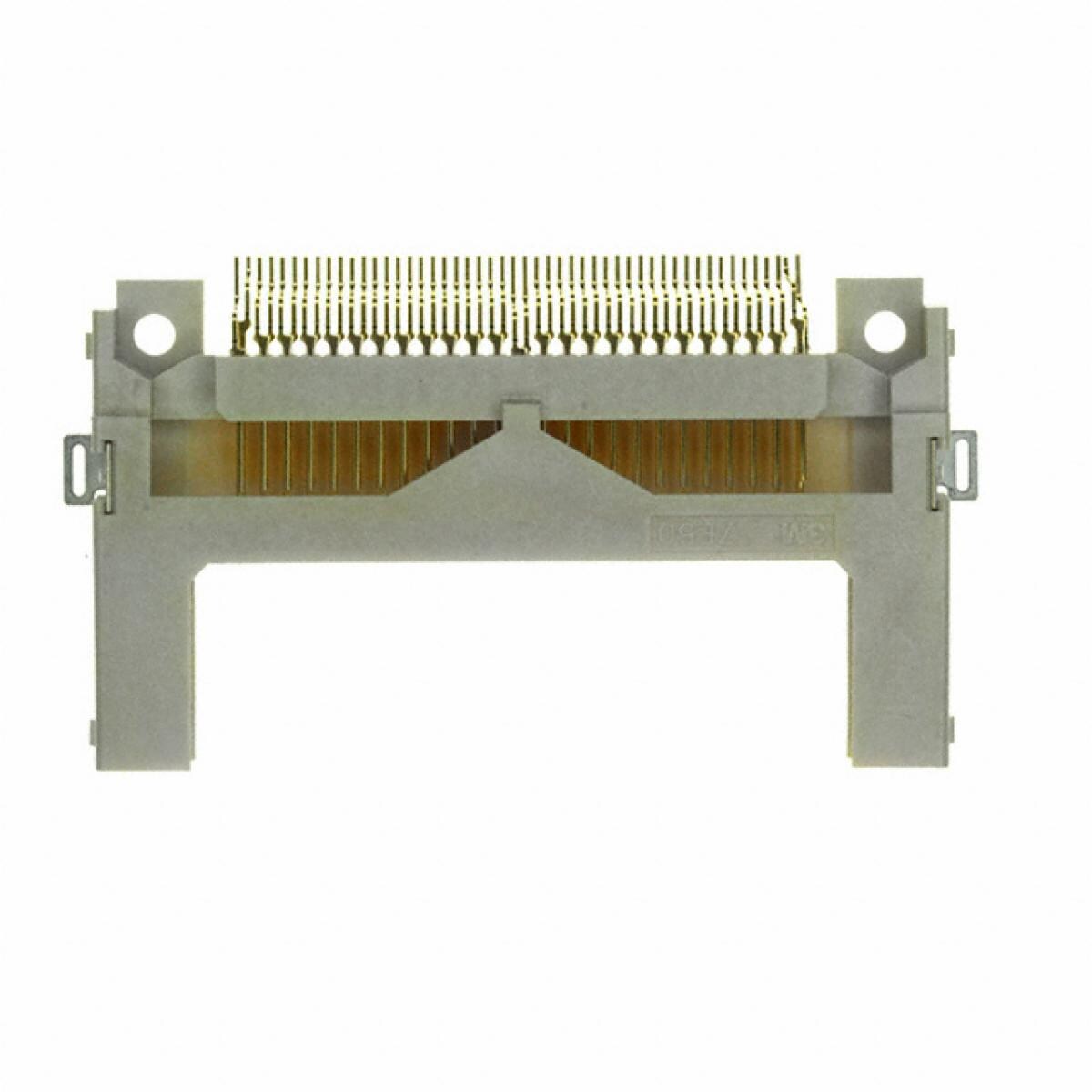

3M™ CF Card Header, 7E50 Series, N7E50-X516XX-20
- 3M Product Number 7E50 Series
- 3M ID B5005219006
- UPC 04547452459421
Details
Highlights
- Compact surface mount header for CompactFlash™ Type I cards
- Single-row solder tails allow for efficient installation and connection
- 1.64 mm standoff creates clearance for board components
- Optional ejector allows reliable card removal
- Optional retainer clip adds stability for mobile and high vibration applications
- Meets CFA standards
The 3M™ CF Card Header, 7E50 Series, N7E50-X516XX-20 is a compact surface mount header for CompactFlash™ Type I cards. Single-row solder tails with 0.635 mm spacing allow for efficient installation and connection. The header also provides a 1.64 mm standoff for board component clearance.
Options include an ejector for reliable CF card removal and a retainer clip option for stability in mobile and high vibration applications. 3M card header 7E50 series N7E50-X516XX-20 meets CFA standards.
Typical properties
| Card Standard | CompactFlash® |
| Card Type | Type I |
| Connector Style | Plug, Receptacle |
| Current Rating | 0.5 A |
| Factory ISO Certification | No ISO Certification information available |
| Features | Card Guide, Board Guide |
| Insertion/Removal Method | Push-in/Pull-out |
| Mating Contact Finish Material | Gold |
| Mating Contact Finish Thickness (Imperial) | <10 µin |
| Mating Contact Finish Thickness (Metric) | <0.25 µm |
| Maximum Operating Temperature (Celsius) | 85 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 185 ℉ |
| Minimum Operating Temperature (Celsius) | -55 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -67 ℉ |
| Mounting Type | Boardmount |
| Number of Contact Rows | 1 , 2 |
| Number of Contacts | 50 |
| Packaged Form | Tray, Tape & Reel |
| Product Color | Beige |
| Product Series | N7E50 |
| Stack Height (Imperial) | 0.261 in |
| Stack Height (Metric) | 6.629 mm |
| Tech Sheet Number | TS-0662 |
| Withstanding Voltage | 500 VAC for 1 min |
