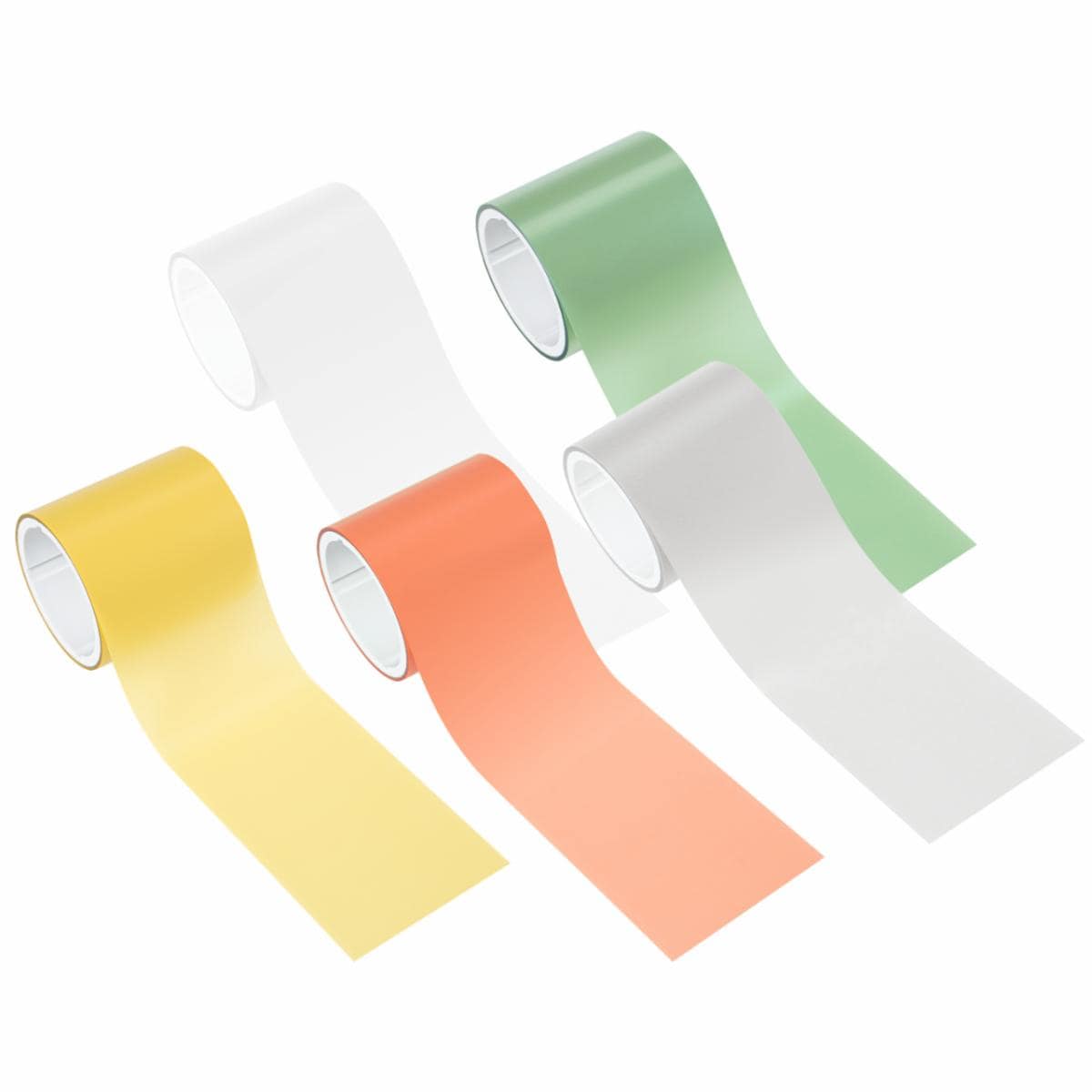

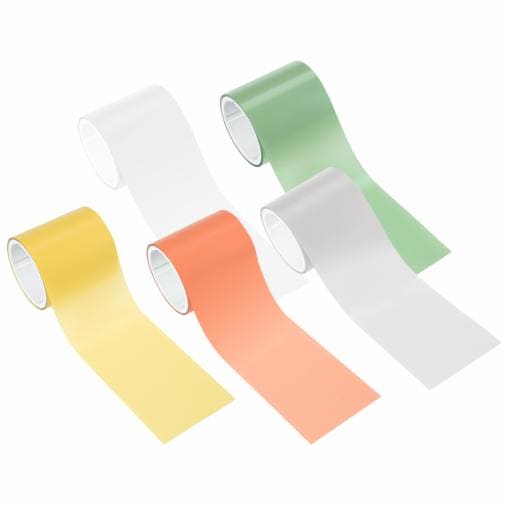

3M™ Lapping Film Roll 269X
- | Select product options for IDs.
Details
Highlights
- Aluminum oxide grain
- 3 mil Polyester film (PET) backing
- Resin bonded slurry coating
- Use for lapping and polishing
3M™ Lapping Film Roll 269X is used for lapping and polishing processes.
3M™ Lapping Film 269X products are ultra-fine grinding tools for achieving finer and finest surfaces up to Ra values of approx. 0.05 μm. The base is a homogeneous, tear-resistant and low-stretch film base made from 3mil polyester. The tolerance of the grain distribution is much narrower than with conventional ones Abrasives and allows in conjunction with a dispersion coating achieves the finest surfaces.
Typical properties
| Abrasive Material | Aluminum Oxide |
| Application | AOEM Finish Prep/Repair, Aerospace, Automotive, Surface Finishing, Electronics, Fiber Optic Connector Polishing, Flat Lapping, Hand Sanding, Metalworking, Polishing, Superfinishing |
| Backing Material | Polyester Film |
| Backing Thickness (Imperial) | 3 mil |
| Bond Type | Resin |
| Brands | 3M™ |
| Coat Type | Closed Coat |
| Equipment - Machines | Flat Finishers, Lapping Machines, Microfinishing Machines, Superfinishing Machines |
| Industries | AOEM, Metalworking, Aerospace, Paint Preparation, Precision Grinding & Finishing |
| Micron Grade | 0.1 μm, 0.5 μm, 1 μm, 2 μm, 3 μm, 5 μm, 9 μm, 12 μm, 15 μm, 20 μm, 30 μm, 40 μm |
| Product Color | Pink, Yellow, Light Blue, Gold, Purple, Apricot, Green, White, Light Gray, Light Green, Blue |
| Product Form | Roll |
| Sub Applications | Flat Lapping, Optics, AOEM Finish Prep/Repair, Coating Finish Prep/Repair, Defect Removal, Finishing, Flat Finishing, Superfinishing |
| Sub Industries | Metal Fabrication, Plating & Polishing, Automotive, Aerospace |
| Vacuum Support | No |
| Wet or Dry | Wet or Dry |
For industrial/occupational use only. Not for consumer sale or use.
