3M™ Lapping Film 466X, Discs

Options available
| Select product options for IDs.

PSA-backed

Tight particle distribution

Consistent cut rate, finish and life

Frequently viewed resources

Tech Data Sheet (PDF, 128KB)

Overall Diameter (Imperial)

Overall Diameter (Metric)

Select product options

Details

Highlights

PSA-backed
Tight particle distribution
Consistent cut rate, finish and life
Available in discs, sheets and rolls

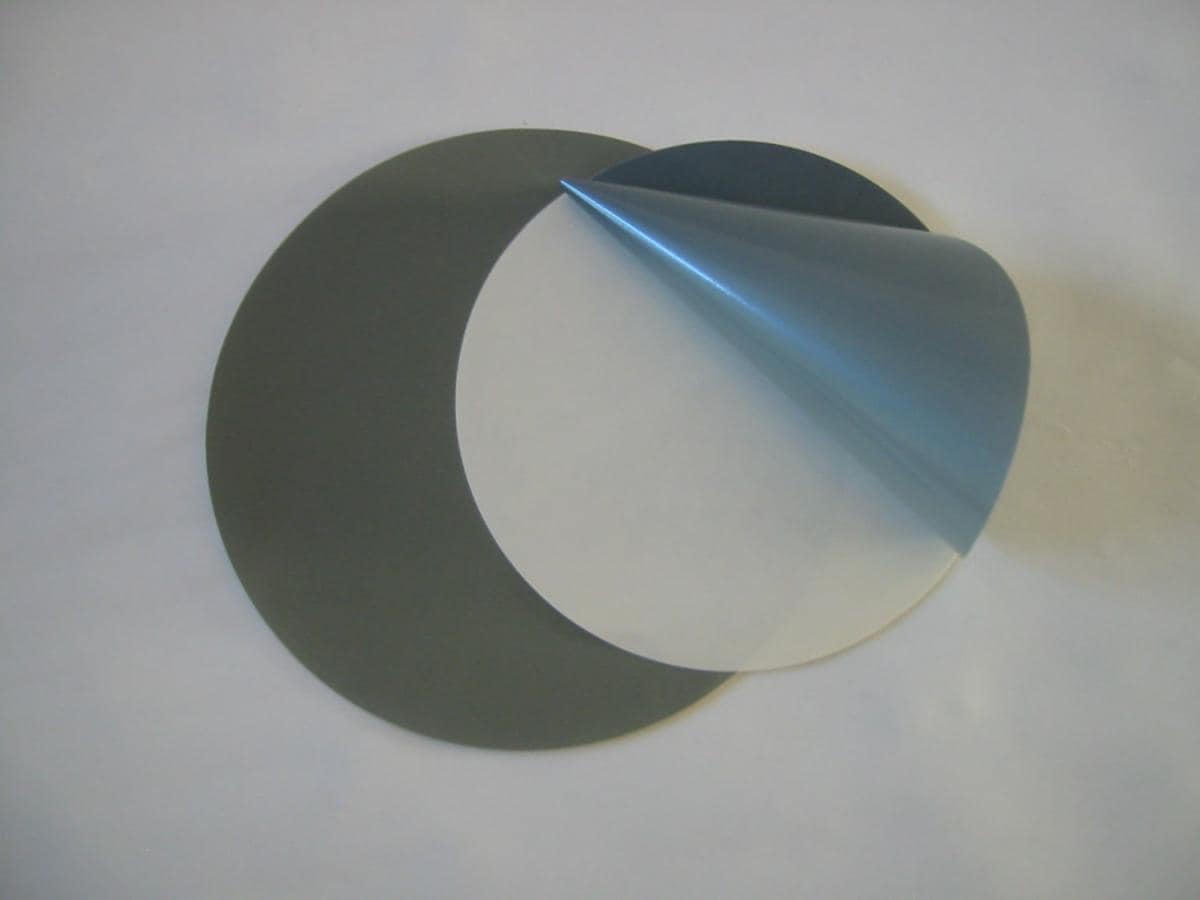

Achieve excellent fibre optic polishing results with 3M™ Lapping Film 466X. Our lapping film comprises of silicon carbide mineral coated on a 3 mil polyester film, for a consistent cut rate and finish.

Standard Lead Time: 12 Calendar Days

Typical properties

Details

Abrasive Material	Silicon Carbide
Application	Polishing
Attachment Type	PSA Back
Factory ISO Certification	No ISO Certification information available
Micron Grade	5 μm
Polishing Process	Step 2b: Refine/Level Connector (Ceramic Connector)
Product Form	Disc
Product Series	466X
Product Usage	Ceramic Fiber Optic Connectors, Fiber Optic Connectors, Optical
Substrate	Ceramic, Glass, High-hardness Metal, Metal, Plastic, Silicon Carbide

Dimensions and Classifications

Overall Diameter (Imperial)	4 in, 8 in
Overall Diameter (Metric)	101.6 mm, 203.2 mm

Resources

3M(TM) Lapping Film 461X,462X,463X,466X,468X,468XY,468XW

3M™ Lapping Film 461X,462X,463X,466X,468X,468XY,468XW

Data Sheets

(PDF, 128KB)

Legal disclaimer

Product Disclaimer

The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes.

3M products shown on this website may not be available in all geographic regions or may not be available at this time. Please contact your local sales representative to determine product availability.
