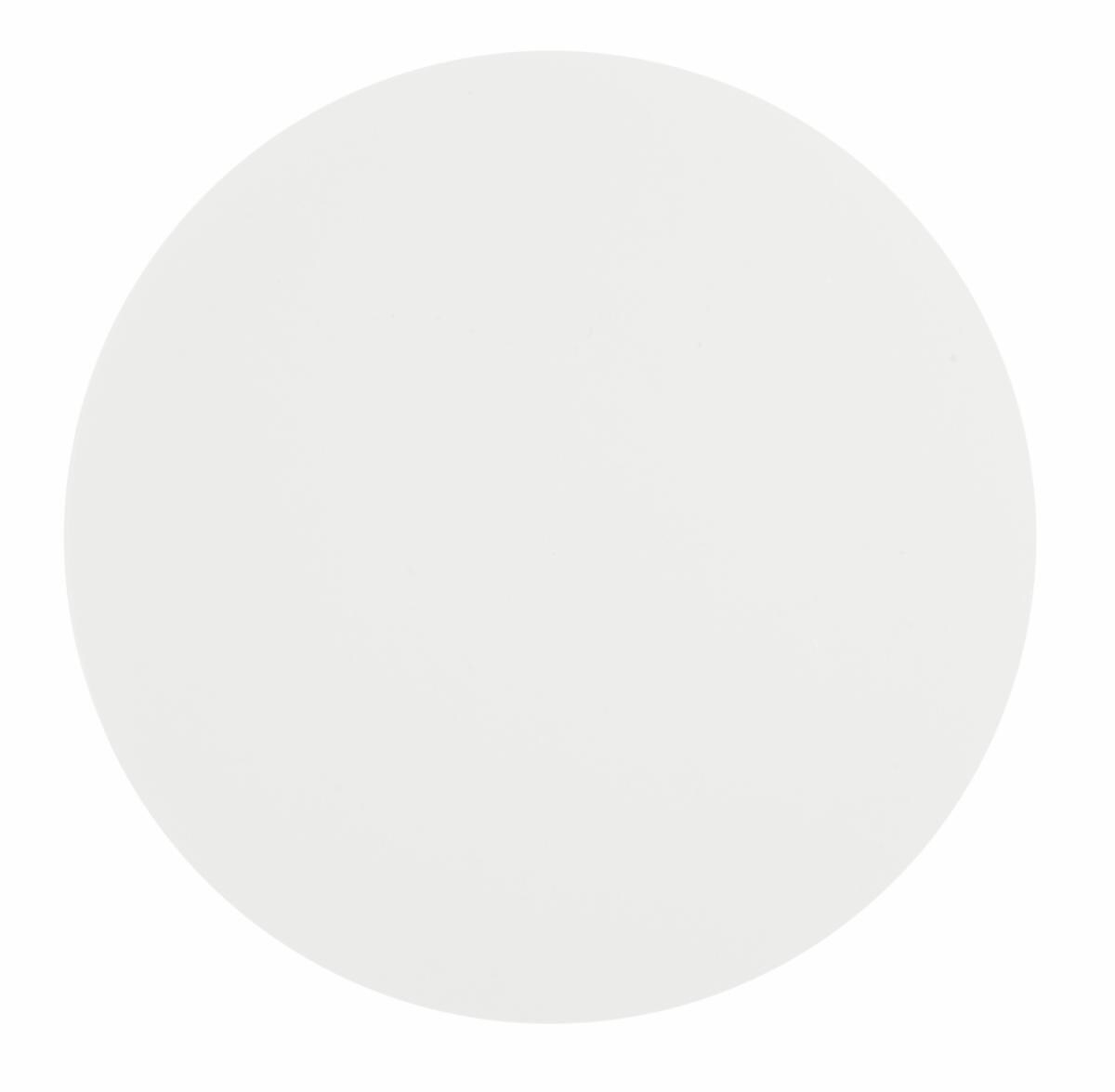

3M™ Lapping Film 865X, Discs
- | Select product options for IDs.
Details
Highlights
- High Yield, increased throughput
- Consistent protrusion values
- Low insertion loss and back reflection
- Low defects
- Multiple use product
- Available in discs, sheets or rolls
Precision coated silica coating on a polyester film used in the final step in fiber optic connector polishing.
Standard Lead Time: 12 Calendar Days
Typical properties
| Abrasive Material | Silicon Dioxide |
| Attachment Type | Plain Back |
| Micron Grade | 2 μm |
| Product Form | Disc |
| Product Series | 865X |
| Overall Diameter (Imperial) | 4.125 in, 5 in |
| Overall Diameter (Metric) | 104.775 mm, 127 mm |
Resources
3M™ Lapping Film 865XData Sheets
(PDF, 131KB)
Legal disclaimer
Product Disclaimer
The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes.
3M products shown on this website may not be available in all geographic regions or may not be available at this time. Please contact your local sales representative to determine product availability.
