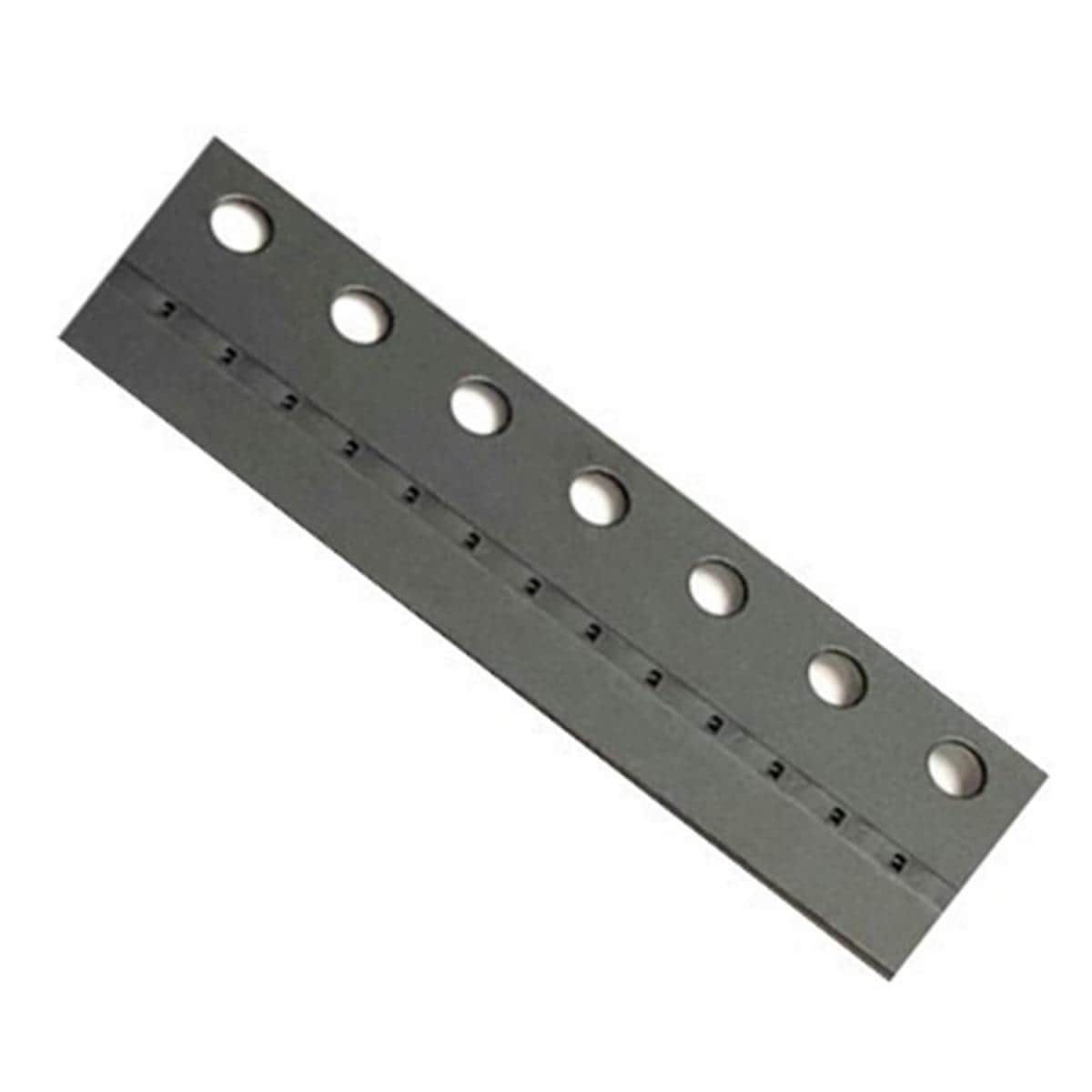

3M™ Polycarbonate Carrier Tape 3000R Series

  • 3M Product Number 3000R
  • 3M ID B5005127017

Reduces pocket opening radius in thin package semiconductor applications (component thickness ≤ 0.15mm)

Helps minimize component migration and cracks, maximize throughput

Raised platform helps prevent component tilting and misplacement

View more details
Frequently viewed resources
PDF (1) Copy 26Tech Data Sheet (PDF, 289KB)
Green to yellow gradient

Setting the standard in semiconductor transport carrier tape

3M™ Polycarbonate Carrier Tape 3000R Series opens up new possibilities in semiconductor Back End of Line (BEOL). Transport even ultra small, thin components – more safely, more reliably and with minimal shifting and chip loss.

Details

Highlights
  • Reduces pocket opening radius in thin package semiconductor applications (component thickness ≤ 0.15mm)
  • Helps minimize component migration and cracks, maximize throughput
  • Raised platform helps prevent component tilting and misplacement
  • Available in +/- 0.02 mm pocket tolerance
  • Pocket open radius control ≤ 0.1 mm/0.12mm (depending on width)
  • Compatible with 3M™ Pressure Sensitive Cover Tape or 3M™ Universal Cover Tape
  • Available with and without cleanroom compatibility

3M™ Polycarbonate Carrier Tape 3000R Series is used for advanced thin package semiconductor transport applications including heterogenous and integrated component packaging and wafer level chip scale packaging (WLCSP). This carrier tape allows for extremely small open radius control and precise pocket tolerances, helping decrease component rotation tilting and migration, as well as damage to semiconductor chips. It is ideal as components become smaller, thinner and more valuable.

  • graphic showing a transport reel tape pocket

    Big efficiency for small component sizes

    With pocket open radius control of < .1 mm/0.12 mm and pocket tolerance down to Ä… 0.02, 3M™ Polycarbonate Carrier Tape 3000R Series helps reduce component tilting, migration, cracking and other incidents associated with transporting thin, ultra thin and ultra small components. These tapes help reduce width and flatness of top pocket edges and enable extremely narrow pocket variations, and a raised-platform design minimizes the gap between carrier and cover tapes. 3M™ Polycarbonate Carrier Tape 3000R Series is available in 8 mm and 12 mm widths for a range of form factors, and can be specified to meet cleanroom requirements.

Better control for larger process windows

  • graphic showing the comparison of die in an uncontrolled pocket versus a tape controlled pocket

    Open radius control

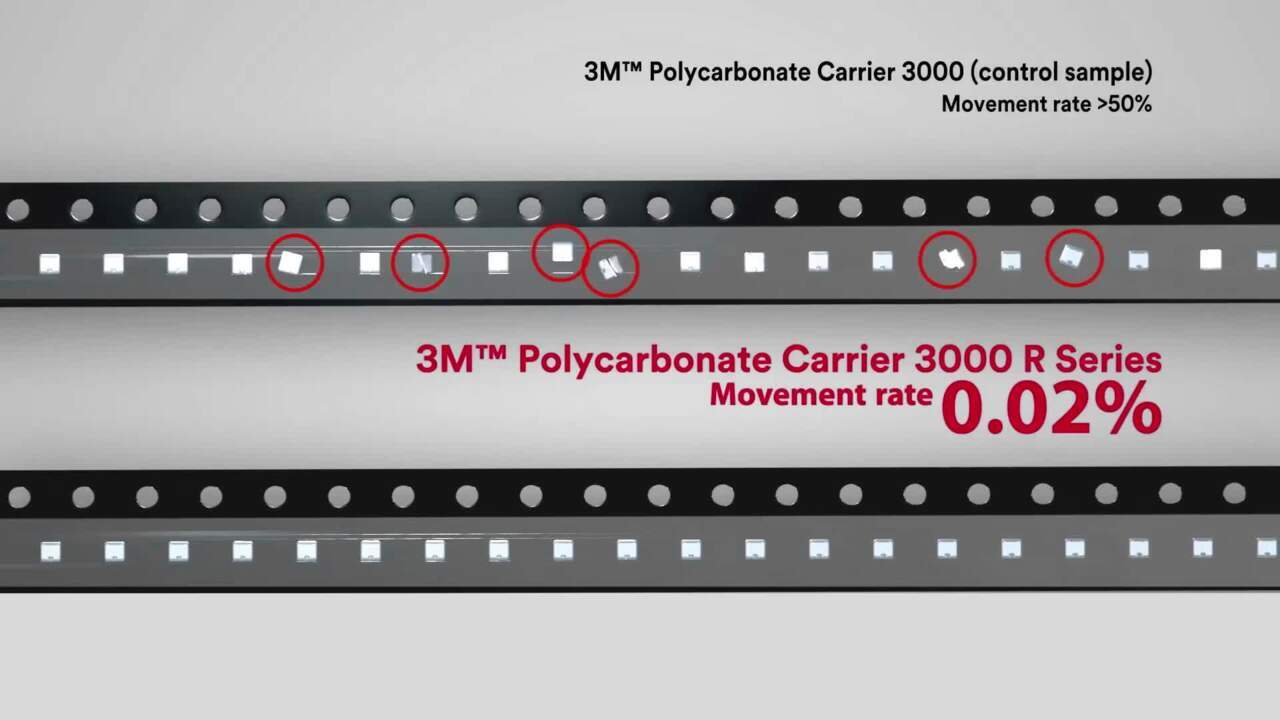

    Today’s standard carrier tapes can allow for an open radius of about .13 mm. By helping reduce the width and flatness of top pocket edges, 3M™ Polycarbonate Carrier Tape 3000R Series enables a typical open radius of < .1 mm/0.12 mm depending on tape width, and as low as .06 -.07 mm. Our testing process helps validate the measured and controlled open radius in each carrier tape.

  • a chip in a transport reel

    Pocket tolerance

    The raised platform design of 3M™ Polycarbonate Carrier Tape 3000R Series helps reduce the gap between the cover tape and the carrier tape, and create tension around the top pocket edges. Pocket tolerances of ± 0.03 mm and as low as ± 0.02 mm help minimize pocket variation, securely holds thin or ultra small components and helps prevent tilting or slippage.

Recommended applications: Electronic component packaging
Video Player is loading.
Current Time 0:00
Duration 0:00
Loaded: 0%
Stream Type LIVE
Remaining Time 0:00

  • Chapters
  • descriptions off, selected
  • captions off, selected

    Typical properties

    Application

    Electronic Component Packaging

    Brands

    3M™

    Material

    Polycarbonate

    Product Color

    Black

    Product Usage

    LEDs, Bare Die, Discrete Components, ICs, Passive Components, WLCSP

    Surface Resistance

    1.0x10⁴ Ω - 1.0x10⁸ Ω
