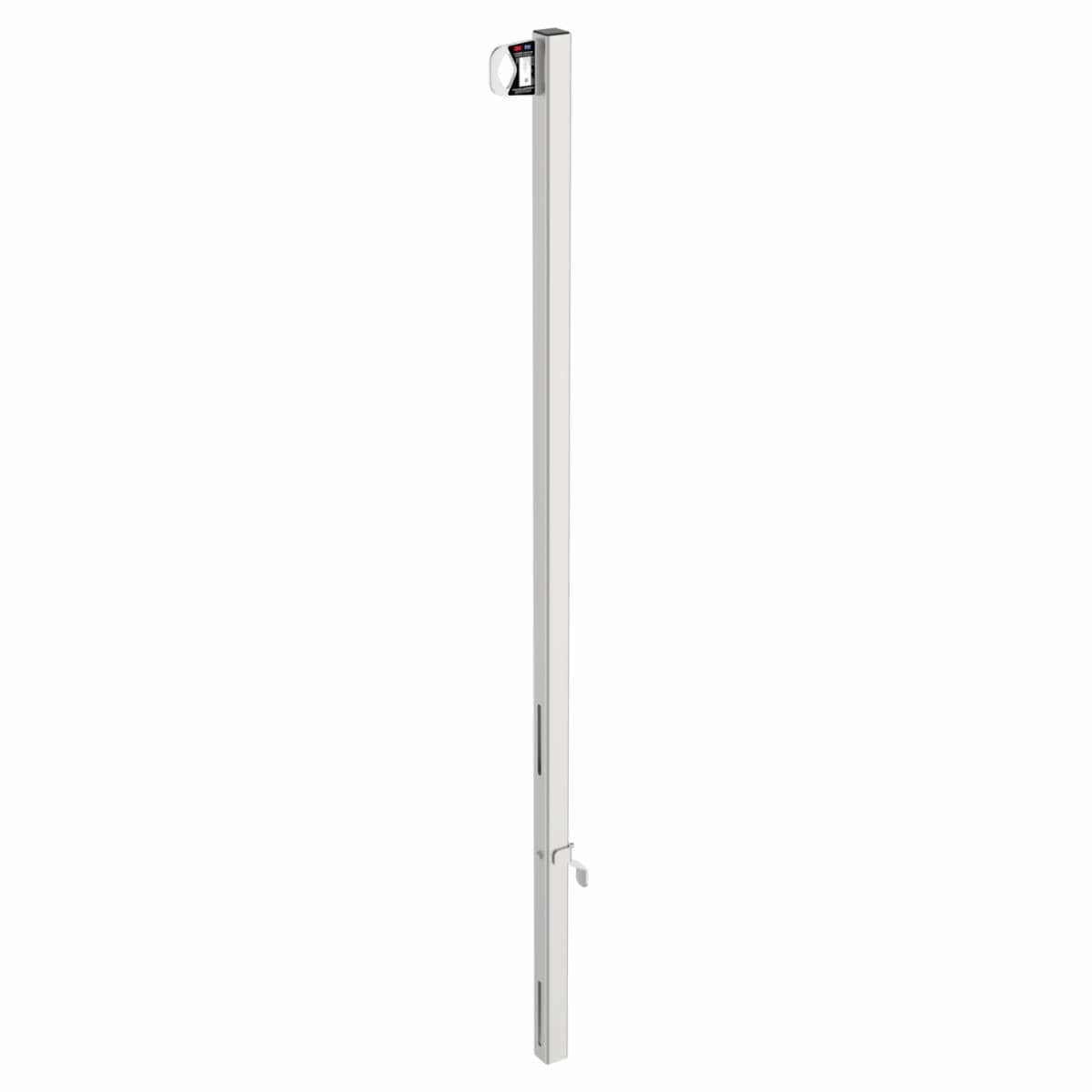

3M™ DBI-SALA® Fixed Ladder SRL Anchor

Options available
| Select product options for IDs.

Easy to transport. Under 30 lbs. for ease of transport and installation

Simple to setup up installs on the ladder in 5 minutes or less. Versatile installation allows the ladder anchor to be mounted to front or behind the ladder with left, right or center alignments.

Compatible with your existing fall protection harness. Unlike a fixed cable system, this solution doesn’t require a front D-ring, which can reduce overall implementation costs.

Material

Details

Highlights

Easy to transport. Under 30 lbs. for ease of transport and installation
Simple to setup up installs on the ladder in 5 minutes or less. Versatile installation allows the ladder anchor to be mounted to front or behind the ladder with left, right or center alignments
Compatible with your existing fall protection harness. Unlike a fixed cable system, this solution doesn’t require a front D-ring, which can reduce overall implementation costs
Designed for durability and built to withstand permanent or temporary applications
Meets requirements of 29 CFR OSHA 1910 Walking Working Surfaces Section 1910.27
Available in galvanized or stainless steel

The 3M™ DBI-SALA® Fixed Ladder SRL Anchor is a simple solution to brings your ladders into compliance. At under 30 lbs., this solution adds a convenient tie-oﬀ point to existing ladders, helping you meet OSHA’s walking working surfaces standard. Designed with versatile mounting capabilities, the ladder anchor can be positioned left or right, and in front or behind the ladder rungs to stay out of the way. Lightweight for ease of transport and installation. Simple to setup up installs on the ladder in 5 minutes or less.

Versatile mounting capabilities positioned left or right, and in front or behind the ladder rungs. Compatible with your existing fall protection harness. Unlike a fixed cable system, this solution doesn’t require a front D-ring, which can reduce overall implementation costs. Designed for durability. Built to withstand permanent or temporary applications. Meets the requirements of 29 CFR OSHA 1910 Walking Working Surfaces Section 1910.27.

Typical properties

Details

Anchor Hook Material	Metal
Anchor Install Type	Permanent & Reusable
Anchor Type	Stainless Steel
Carabiner/Hook Material	Metal
Case Quantity	1 each
Connected Safety ID Equipped	No
For Use With	3M™ DBI-SALA®Smart Lock 3503824, 50 ft. 1 Each, 3M™ DBI-SALA® Smart Lock 3503800, 30 ft.
Material	Stainless Steel, Galvanized Steel
Mounting Type	Permanent & Reusable
Net Weight (Imperial)	26.5 lb, 29.5 lb, 38 lb, 39 lb
Net Weight (Metric)	12.02 kg, 13.381 kg, 17.237 kg, 17.69 kg
Product Color	Silver
Product Type	Ladder Anchor
Recommended Application	Ladder Climbing
Recommended Industry	Oil & Gas, Utilities, General Industrial, Agriculture
Smallest Saleable Unit	Each
Specifications Met	OSHA 29 CFR 1910.27
Weight (Imperial)	480 Ounce
Weight Capacity (Imperial)	310 lb
Weight Capacity (Metric)	140 kg

Dimensions and Classifications

Overall Length (Imperial)	6 ft, 6.67 ft, 8.75 ft
Overall Length (Metric)	1.828 m, 2.03 m, 2.67 m
