3M™ Bumpon™ Quiet Clear Protective Products SJ6503, 5000/Case
- 3M ID 7000124312
- UPC 00051115256882
Details
Highlights
- All 3M™ Bumpon™ Protective Products feature a urethane composition
- Easy application with 3M pressure sensitive adhesives
- High skid-resistance
- Won't scratch or stain surfaces
- Reduces vibration and noise
- Will not crack or harden

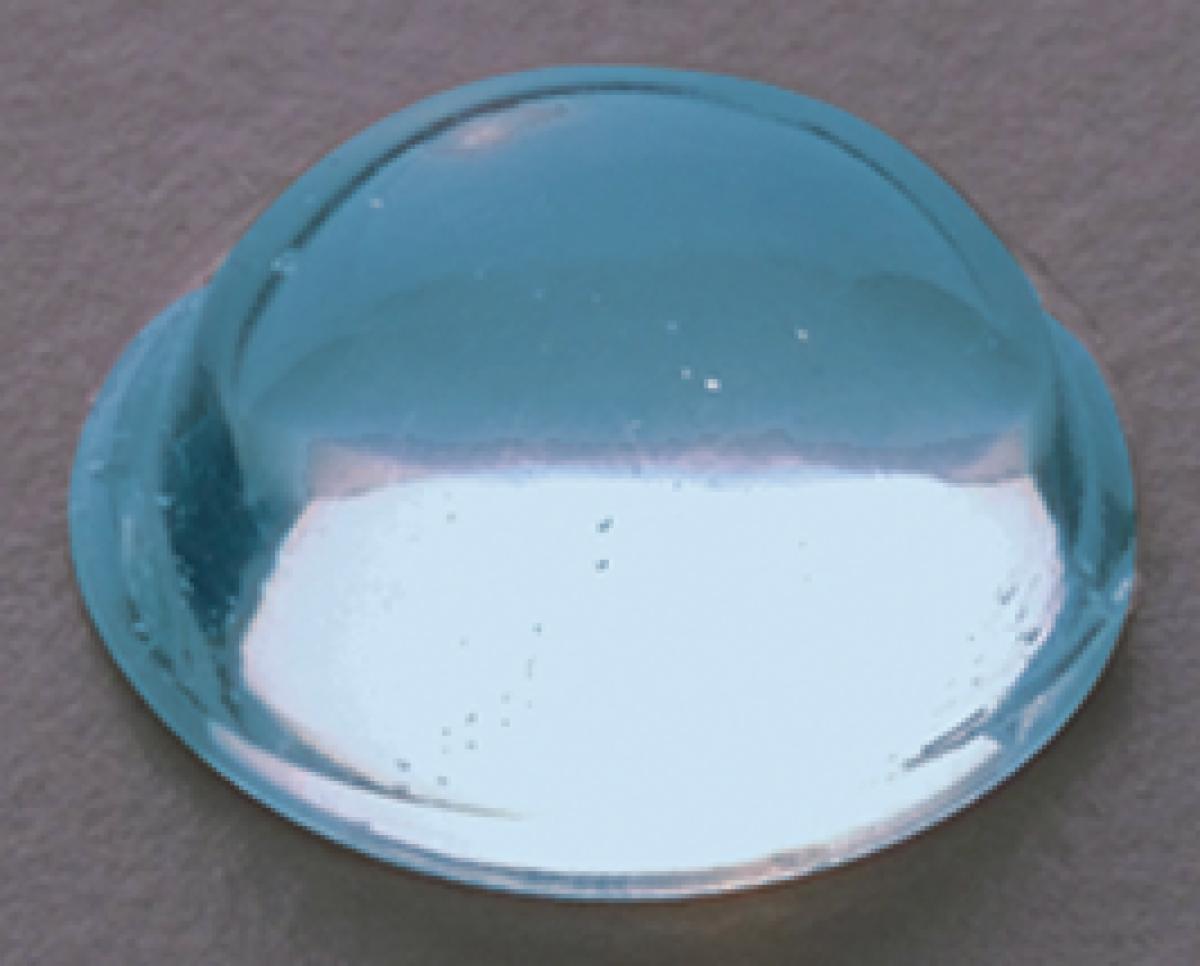

3M™ Bumpon™ Protective Product SJ6503 is a self-adhesive rubber bumper designed to be used as feet, stops and spacers. The hemispherical base design with cone shaped top used in woodworking as cushioning stop.
Typical properties
| Adhesive Type | Synthetic Rubber (R25) |
| Application | Cushioning Spacer, Inside Door Frame Stops |
| Availability | Stocked |
| Backing Material | Polyurethane |
| Brands | Bumpon™ |
| Hardness | 56 Shore M |
| Height-Thickness Range | 0.200 - 0.299 in |
| Height-Thickness Range (Metric) | 5.0 - 5.9 mm |
| Primary Liner | Translucent Polyester Film |
| Product Color | Transparent |
| Product Form | Molded |
| Product Series | SJ6503 |
| Product Type | Bumper |
| Shape | Circular-Hemisphere |
| Width-Diameter Range | 0.400-0.499 in |
| Width-Diameter Range (Metric) | 11.00 - 19.99 mm |
| Overall Diameter (Imperial) | 0.44 in |
| Overall Diameter (Metric) | 11.1 mm |
| Overall Height (Imperial) | 0.2 in |
| Overall Height (Metric) | 5 mm |
| Overall Length (Imperial) | 0.44 in |
| Overall Length (Metric) | 11.2 mm |
| Overall Width (Imperial) | 0.2 in |
| Overall Width (Metric) | 5.1 mm |
Resources
Data Sheets
(PDF, 166KB)
Legal disclaimer
Product Disclaimer
The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes.
3M products shown on this website may not be available in all geographic regions or may not be available at this time. Please contact your local sales representative to determine product availability.
