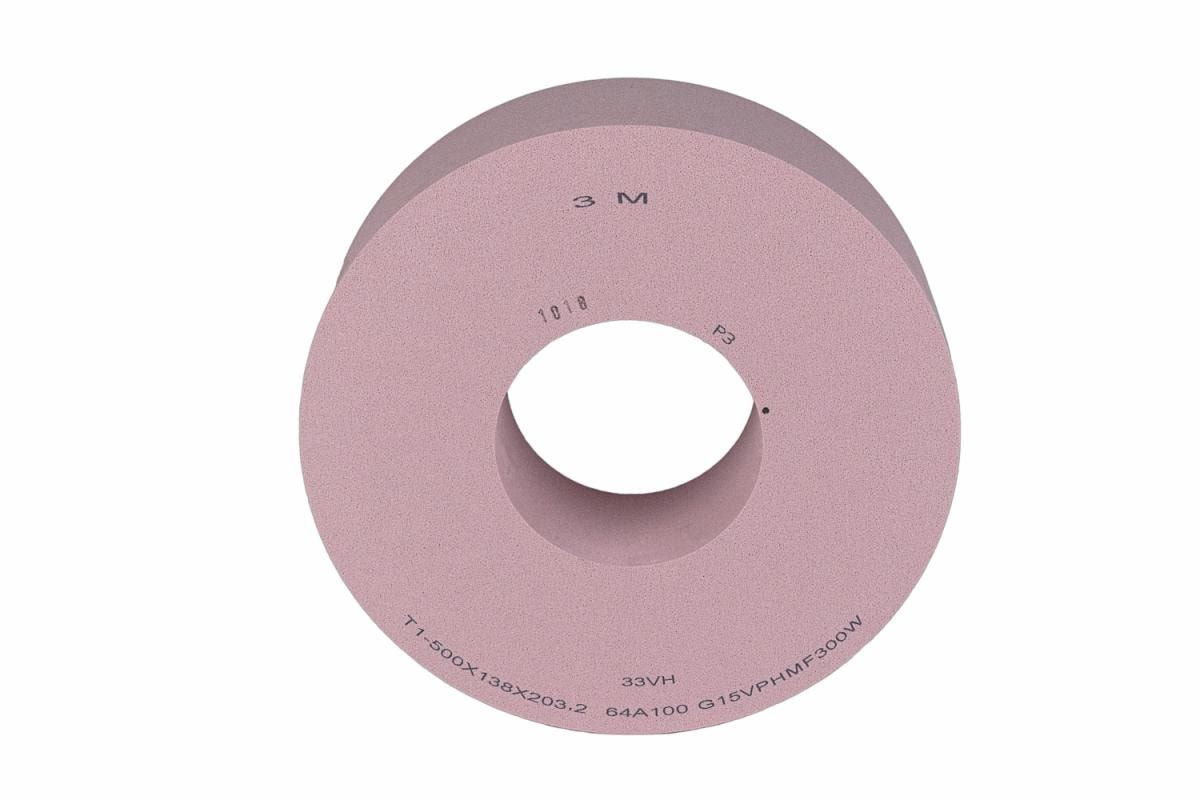

3M™ Vitrified Grinding Wheel 33VH

Options available
| Select product options for IDs.

Vitrified bonded grinding wheel

Features 64A minerals – a mix of pink coloured aluminium oxide and mono crystalline aluminium oxide grains

Provides a long lasting, consistent abrasiveness

Application

Sub Applications

Workpiece Type

Select product options

Details

Highlights

Vitrified bonded grinding wheel
Features 64A minerals – a mix of pink coloured aluminium oxide and mono crystalline aluminium oxide grains
Provides a long lasting, consistent abrasiveness
Cooling effect decreases thermal damage to workpieces
Ideal for grinding specific materials with high tensile strength

3M™ Vitrified Grinding Wheels 33VH are our vitrified bonded grinding wheels, featuring a mix of pink coloured aluminium oxide and mono crystalline aluminium oxide grains, for conventional grinding operations.

For outer diameter (OD) cylindrical grinding or reciprocating surface grinding, use 3M™ Vitrified Grinding wheels 33VH.

Our vitrified bonded grinding wheels contain a mix of pink coloured pure aluminium oxide and mono crystalline aluminium oxide grains, providing a much harder combination of abrasives than standard white aluminium oxide grits. These minerals are strong, but also offer a medium friability and cool cutting effect resulting in a long lasting and consistent abrasiveness.

They’re ideal for grinding specific materials such as hardened steel with hardness > 63 HRc and high tensile strength, hardened acid and heat resistant steel, stainless steel, high speed steel (HSS) or cast steel materials.

Typical properties

Details

Application	Cylindrical Grinding, Surface Grinding
Brands	3M™
Grit	46, 60
Material Code	64A
Performance Level	Standard
Product Form	Wheel
Sub Applications	ID Grinding, OD Grinding, Reciprocating Grinding, Creep-feed Grinding
Workpiece Type	Universal Use, Machining & Construction Steel, Roll, Machine Guideway
