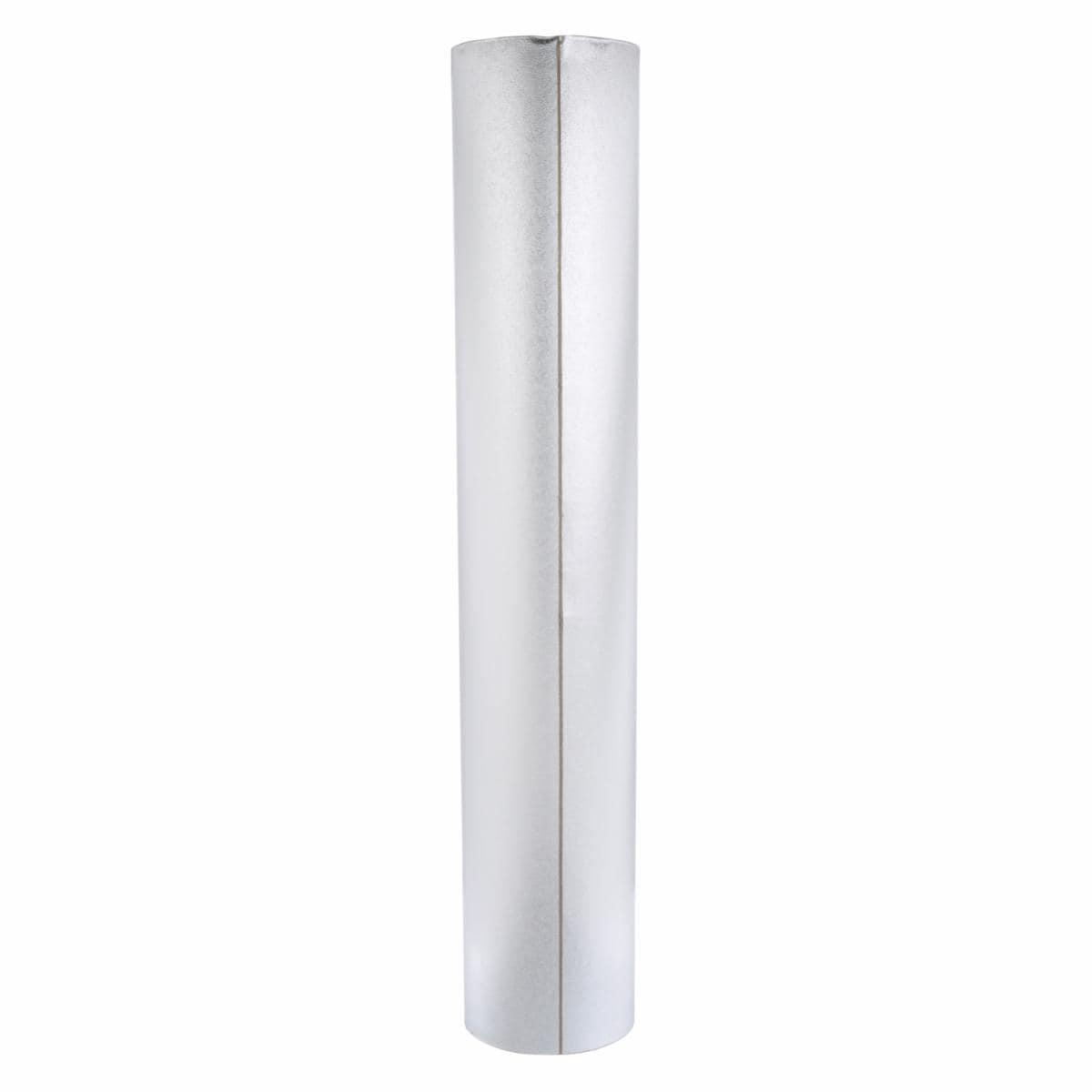

  6. 3M™ VentureClad™ Heavy Duty Insulation Jacketing Tape 1579GNA-WME, Embossed, White, 50 in x 250 yd, 1 Roll/Case

3M™ VentureClad™ Heavy Duty Insulation Jacketing Tape 1579GNA-WME, Embossed, White, 50 in x 250 yd, 1 Roll/Case

  • 3M Product Number 1579GNA-WME
  • 3M ID 7010335617
  • UPC 00051128952801

ASTM E84 (20/30) Zero permeability

Puncture and tear resistance

Installs easily on site

View more details
Frequently viewed resources

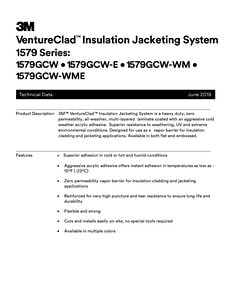

PDF (1) Copy 26Tech Data Sheet (PDF, 175KB)

Details

Highlights
  • ASTM E84 (20/30) Zero permeability
  • Puncture and tear resistance
  • Installs easily on site
  • Extra thick for harsh environment

3M™ VentureClad™ Heavy Duty Insulation Jacketing Tape 1579GNA-WME is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier. The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines.

Zero permeability vapor barrier for insulation cladding and jacketing applications

Typical properties

Adhesive Type

Non-adhesive

Backing (Carrier) Thickness (Imperial)

15 mil

Backing (Carrier) Thickness (Metric)

0.38 mm

Brands

VentureClad™

Elongation at Break

64.0 %

Industries

Construction

Product Color

White

Shelf Life

24 Month

Tensile Strength (Imperial)

130.0 lb/in

Tensile Strength (Metric)

322.233 N/100mm

Overall Length (Imperial)

250 yd

Overall Length (Metric)

228.6 m

Overall Width (Imperial)

50 in

Overall Width (Metric)

50 mm

Resources

Large Volume Order

Similar products

Adhesive Type Non-adhesive
Backing (Carrier) Thickness (Imperial) 15 mil
Backing (Carrier) Thickness (Metric) 0.38 mm
Brands VentureClad™
Elongation at Break 64.0 %
Industries Construction
Overall Length (Imperial) 250 yd
Overall Length (Metric) 228.6 m
Overall Width (Imperial) 50 in
Overall Width (Metric) 50 mm
Product Color White
Shelf Life 24 Month
Tensile Strength (Imperial) 130.0 lb/in
Tensile Strength (Metric) 322.233 N/100mm
