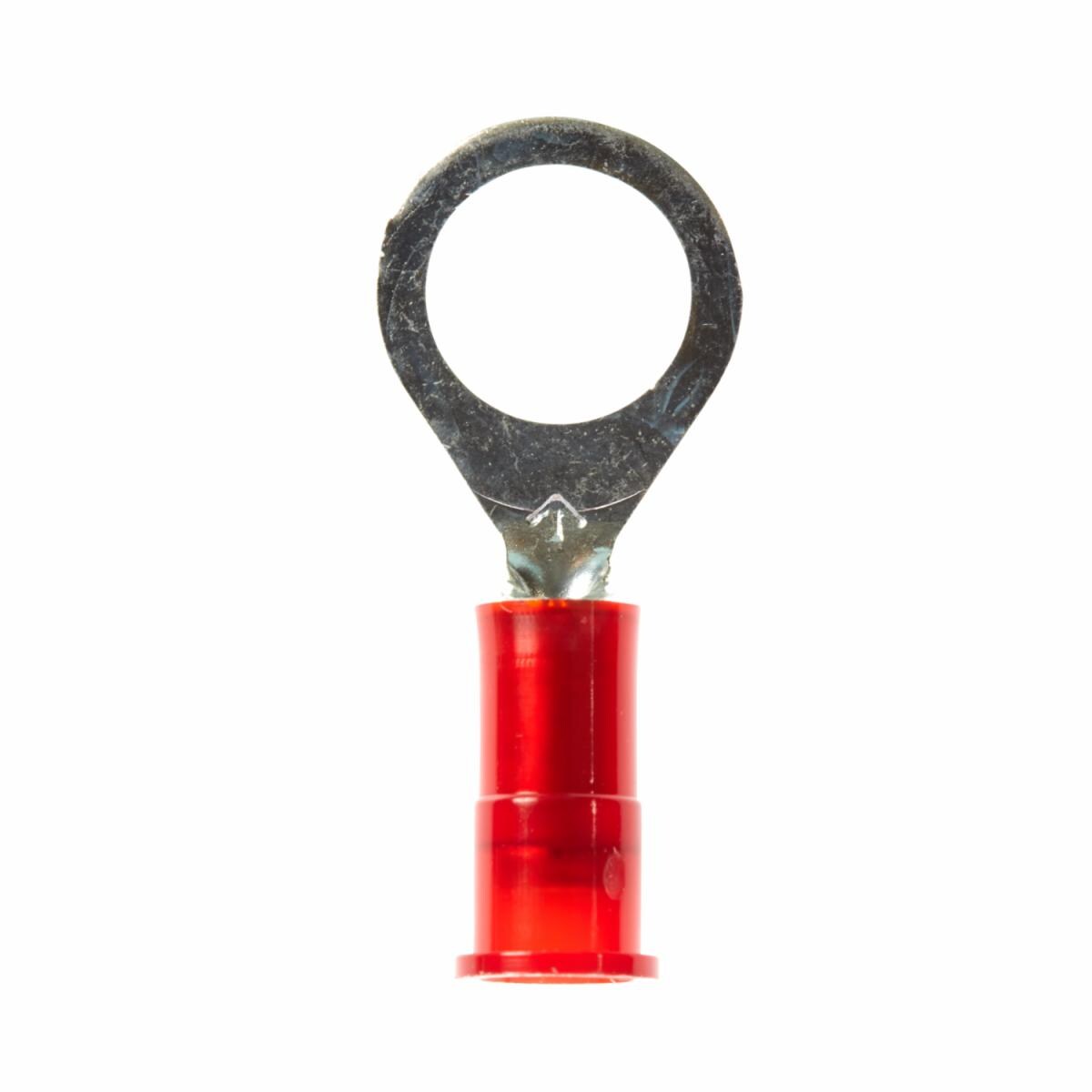

3M™ Scotchlok™ Nylon Insulated with Insulation Grip Multi-Stud Ring Tongues
- | Select product options for IDs.
Details
Highlights
- Funnel-designed, seamless brass sleeve offers easy insertion of wires
- Multi-stud style ring tongue fits around multiple stud sizes
- Stud size #6 to #10
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Color-Coded Multi-Stud Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Multi-Stud Ring Tongue Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
Typical properties
| Barrel Inside Diameter | 0.090 Inch |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Clearance (C) | 0.31 Inch |
| Dimension E | 0.77 Inch |
| Insulation Color | Blue |
| Insulation Material | Nylon |
| Material | Plastic |
| Maximum Conductor Size (Imperial) | 10 AWG, 14 AWG, 18 AWG |
| Maximum Conductor Size (Metric) | 0.823 mm², 2.08 mm², 5.26 mm² |
| Maximum Insulation Outer Diameter (Imperial) | 0.17 in |
| Maximum Insulation Outer Diameter (Metric) | 3.7 mm |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 221 ℉ |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Voltage Rating | 600 to 1000 V |
| Minimum Conductor Size (Imperial) | 12 AWG, 16 AWG, 22 AWG |
| Minimum Conductor Size (Metric) | 0.326 mm², 1.31 mm², 3.31 mm² |
| Minimum Stud Diameter (Imperial) | 0.138 in |
| Minimum Stud Diameter (Metric) | 3.5 mm |
| Operating Temperature Range (Celsius) | -40 °C to 105 °C |
| Operating Temperature Range (Fahrenheit) | -40 °F to 221 °F |
| Product Color | Yellow, Red, Blue |
| Ring Type | Standard |
| Stud Size | #6 to #10 |
| Terminal Style | Multi-Stud |
| Terminal Type | Ring |
| Type | Standard |
| UL File Number | E23438 |
| Units per Case | 500.0 |
| Overall Length (Imperial) | 1 in, 1.02 in, 1.19 in |
| Overall Length (Metric) | 25.4 mm, 25.9 mm, 30.22 mm |
| Overall Width (Imperial) | 0.34 in, 0.39 in |
| Overall Width (Metric) | 8.63 mm, 9.9 mm |
