3M™ Clear Polycarbonate Carrier 2705
- | Select product options for IDs.
Required products
Details
Highlights
- Used for components requiring static discharge protection
- Static dissipative, splice-free carrier tape is recommended for components requiring static discharge protection (ESD)
- Precisely formed pockets effectively fit passive component per ANSI/EIA guidelines
- Available in pocket designs and dimensions with a broad range of electrical and electronic parts
- Compatible with 3M™ Pressure Sensitive Adhesive Cover Tapes and 3M™ Heat Activated Adhesive Cover Tapes

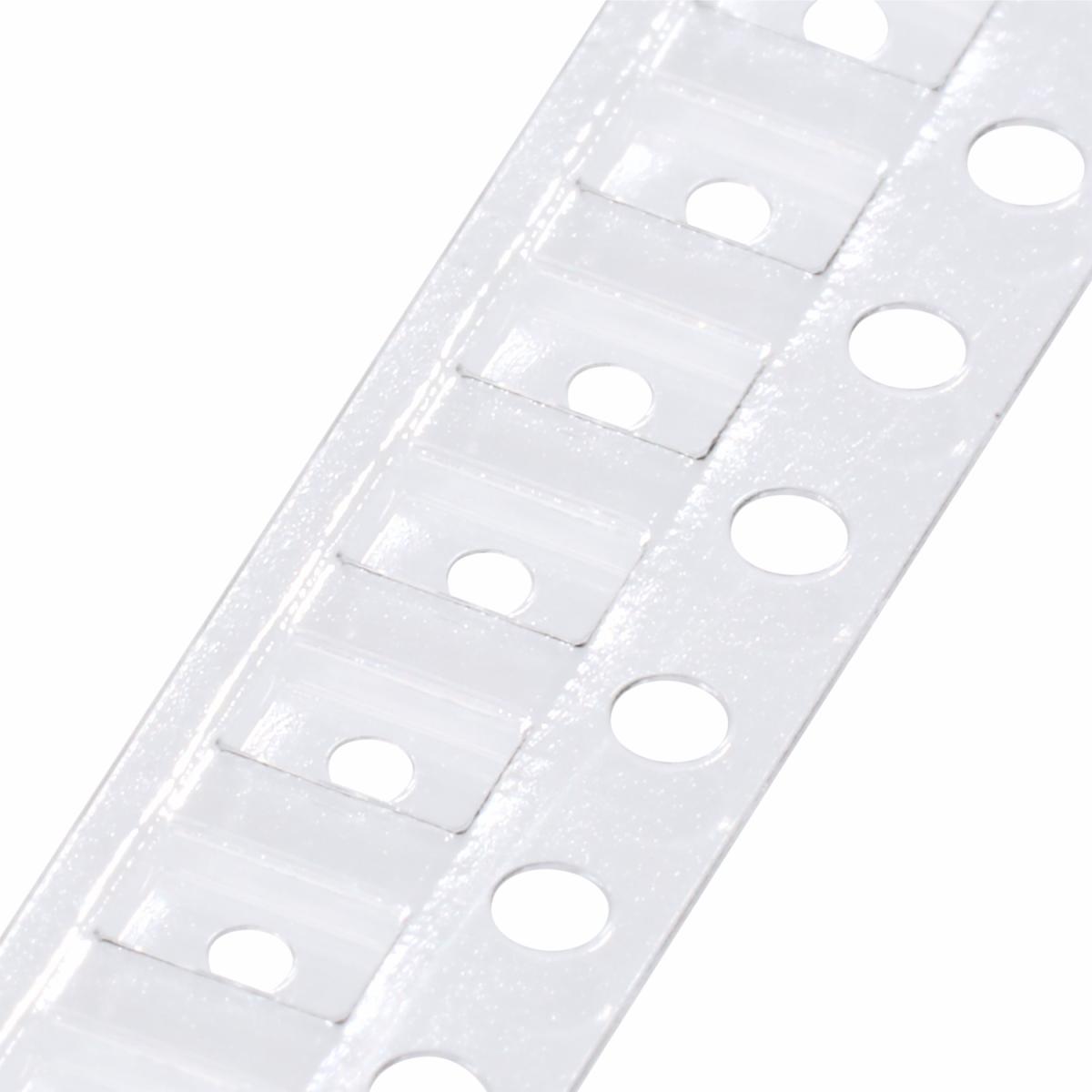

3M™ Clear Polycarbonate Carrier 2705 is ideal for packaging semiconductor components that require static discharge protection (ESD). Its embossed, heat-resistant polycarbonate sheet construction meets ANSI/EIA standards for shrinkage, camber and standard semiconductor pocket dimensions. The carrier tape is available in a broad selection of pocket designs with dimensions to accommodate a variety of common electrical and electronic parts.
-
A conductive carrier tape ideal for ESD-sensitive semiconductor components
This continuous, splice-free carrier tape has an anti-static coating and features precisely formed pockets that effectively fit passive components according to ANSI/EIA guidelines during transport. Transparent tape clearly shows die position, making visual verification fast and simple.
The embossed and heat resistant polycarbonate material is very strong and stands up to impact which can damage delicate chips and components. Its shrinkage percentage is much lower than that for materials like polyester, helping keep the pockets stable. This helps maintain accurate feeding and pocket position and helps reduce the possibility of component sticking.
3M™ Clear Polycarbonate Carrier 2705 is compatible with 3M™ Pressure Sensitive Adhesive Cover Tapes and 3M™ Heat Activated Adhesive Cover Tapes. It is available in planetary format in a wide range of reel capacities.
Typical properties
| Application | Electronic Component Packaging |
| Material | Polycarbonate |
| Pocket Hole Pitch (Imperial) | 0.157 in, 0.315 in, 0.472 in |
| Pocket Hole Pitch (Metric) | 4 mm, 8 mm, 12 mm |
| Product Color | Transparent |
| Product Usage | Discrete Components, Passive Components, LEDs |
| Surface Resistance | 1.0x10⁸ Ω - 1.0x10¹¹ Ω |
| Overall Length (Imperial) | 21.872 yd, 104.987 yd, 120.297 yd, 360.892 yd, 382.765 yd, 437.445 yd, 492.126 yd, 546.807 yd, 656.168 yd, 765.529 yd, 874.891 yd, 984.252 yd, 1082.68 yd, 1093.613 yd, 1312.336 yd, 1673.228 yd |
| Overall Length (Metric) | 20 m, 96 m, 110 m, 330 m, 350 m, 400 m, 450 m, 500 m, 600 m, 700 m, 800 m, 900 m, 990 m, 1000 m, 1200 m, 1530 m |
| Overall Width (Imperial) | 0.315 in, 0.472 in, 0.63 in |
| Overall Width (Metric) | 8 mm, 12 mm, 16 mm |
