3M™ Non-Conductive Heat Activated Cover Tape 2672, 9.5 mm x 480 m
- 3M ID 7000017331
Required products
Details
Highlights
- Recommended for electronic components require no ESD protection
- Works well on 3M™ Polycarbonate Carrier 2703 and 3M™ Polycarbonate Carrier 2705 with good sealing compatibility and peeling performance; can also be used on some other types of carriers
- 480 m rolls are available in standard widths of 5.4 mm, 9.3 mm, 13.3 mm, 21.3 mm, 25.5 mm, 37.4 mm and 49.4 mm
- Contact 3M for other widths and reel lengths per your requirements
3M™ Non-Conductive Heat Activated Cover Tape 2672 is a transparent, non-conductive polyester film tape with a heat activated adhesive.
3M cover tape 2672 is appropriate to use with electronic components that do not require electrostatic discharge (ESD) protection.
Typical properties
| ESD Material Type | Non-conductive |
| Elongation | 60 % |
| Features | Heat Activated Adhesive |
| Haze Percentage | 29 % |
| Maximum Sealing Temperature (Celsius) | 230 ℃ |
| Maximum Sealing Temperature (Fahrenheit) | 446 ℉ |
| Minimum Sealing Temperature (Celsius) | 170 ℃ |
| Minimum Sealing Temperature (Fahrenheit) | 338 ℉ |
| Product Usage | Passive Components |
| Overall Length (Imperial) | 524.934 yd |
| Overall Length (Metric) | 480 m |
| Overall Thickness (Imperial) | 0.002 in |
| Overall Thickness (Metric) | 0.062 mm |
| Overall Width (Imperial) | 0.374 in |
| Overall Width (Metric) | 9.5 mm |
Resources

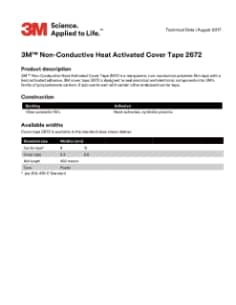

Data Sheets
(PDF, 2MB)
Legal disclaimer
Note: Other widths are available per customer's requirement. Please contact us for more information
