3M™ Molded Assembly, .100 Series, 87 S26P26-3365-0070(RC)S26P26-3365-0070(RC)

Part of a complete cable assembly

Mates with industry standard IC sockets / .100 × .300 inch up to 20 contacts and .100 × .600 inch between 24 and 40 contacts

One piece, molded-on construction with integral strain relief

Part of a complete cable assembly
Mates with industry standard IC sockets / .100 × .300 inch up to 20 contacts and .100 × .600 inch between 24 and 40 contacts
One piece, molded-on construction with integral strain relief
Low profile allows close stacking between components and boards
Molded-on solder stand-offs facilitate flux removal
Gold or matte tin plating options
Closed-end construction
See Regulatory Information Appendix (RIA) on TS-2149 for chemical compliance information

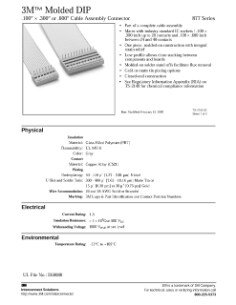

For more information refer to Data Sheet TS2152 (TS-2152)

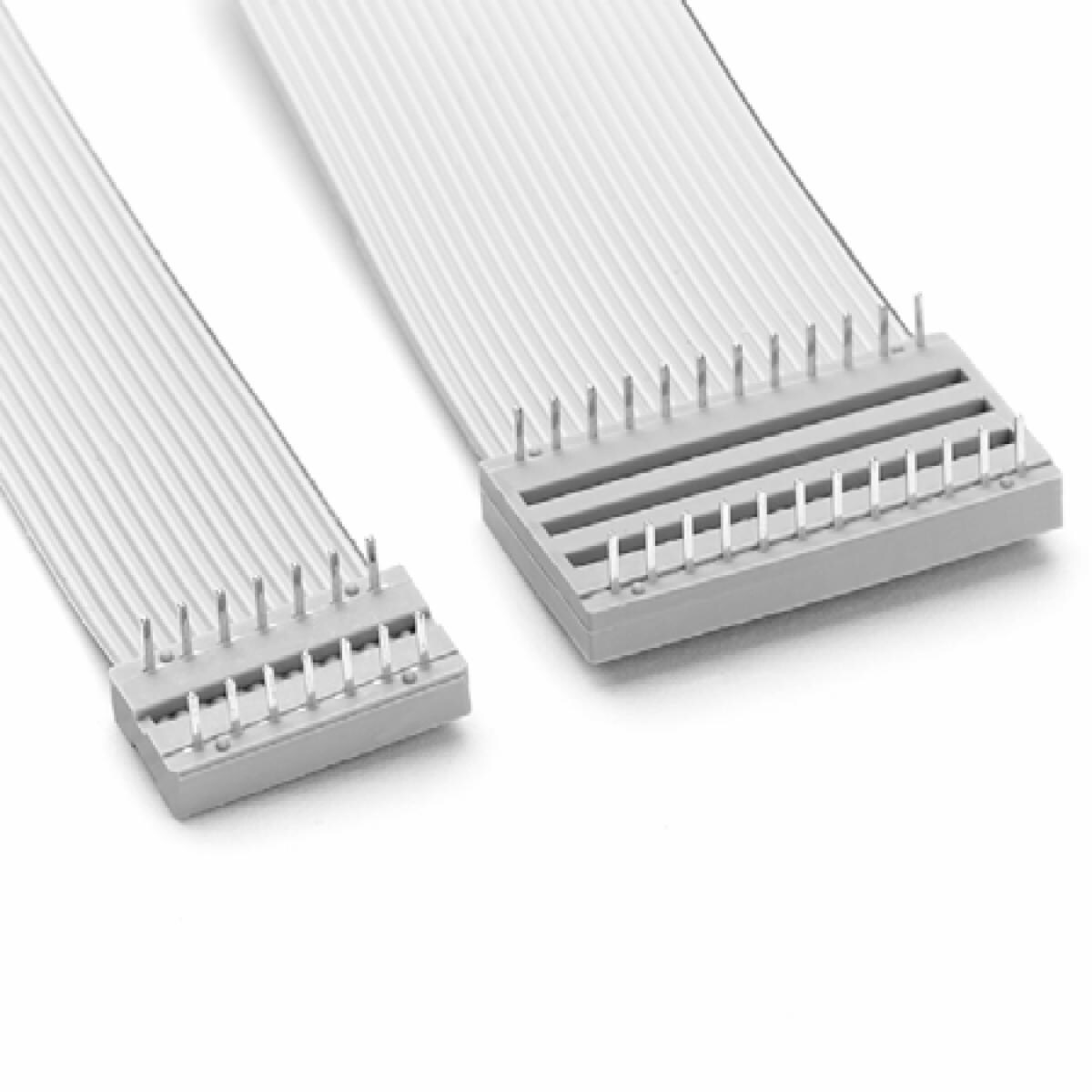

.100" × .300" or .600" Molded DIP Connector

Connector Style (End A)	Plug
Connector Style (End B)	Receptacle
Connector Type (End A)	DIP
Connector Type (End B)	Socket
Factory ISO Certification	No ISO Certification information available
Number of Conductors	26
Pitch (Imperial)	0.1 in
Pitch (Metric)	2.54 mm
Tech Sheet Number	TS-2152

Data Sheets

(PDF, 148KB)
