3M™ Electrically Conductive Double-Sided Tape 9701
- | Select product options for IDs.
Details
Highlights
- XYZ-conductivity through the adhesive
- Excellent conformability and quick bonding
- Good EMI shielding in bond line gap
- Thicker construction to conform to non-flat surfaces
- Improved electrical contact to small size areas
- Good handling and workability
- Other thicknesses may be available upon request
3M™ Electrically Conductive Adhesive Transfer Tape 9701 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape. This double-sided tape has a nickel/copper-coated conductive nonwoven carrier. Designed for EMI shielding and grounding applications, enabling devices to meet electromagnetic compatibility requirements.
3M™ Electrically Conductive Adhesive Transfer Tape 9701 has very high electrical conductivity, which provides low resistance for small contact areas and high frequencies. This tape maintains low resistance over time and has excellent reliability in demanding environmental conditions. This tape provides robust protection against EMI in a range of market segments such as consumer electronics, automotive, medical devices, communication infrastructure, and aerospace & defense electronics.
Recommended Applications:
PCB/flex/chassis grounding
Bond line gap shielding
Electrostatic discharge (ESD)
EMI shield & gasket attachment
Passive intermodulation (PIM) management
From simple to complex designs, our family of shielding and grounding solutions provides protection against EMI. Our solutions provide excellent adhesion to a variety of substrates including metals and plastics. These tapes are easy to apply using low pressure without heat, enhancing productivity. We have multiple thicknesses available to meet even the most space-constrained and complex design requirements.
Typical properties
| Adhesion Strength (Imperial) | 1000 gf/in |
| Adhesive Type | Acrylic |
| Application | Passive Intermodulation (PIM) Management, Grounding |
| Backing (Carrier) Material | Non-woven |
| Electrical Resistance | XY-axis 0.2 Ω, Z-axis 0.05-0.08 Ω |
| Liner Material | PET |
| Maximum Operating Temperature (Celsius) | 121 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 250 ℉ |
| Minimum Operating Temperature (Celsius) | -40 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -40 ℉ |
| Product Color | Gray |
| Product Usage | Sensors, Bond Line Gaps, Flexible Printed Circuits |
| Shelf Life | 9 Month |
| Total Tape Thickness without Liner (Imperial) | 2 mil, 4 mil |
| Total Tape Thickness without Liner (Metric) | 0.05 mm, 0.1 mm |
| Overall Length (Imperial) | 10.936 yd, 109.361 yd |
| Overall Length (Metric) | 10 m, 100 m |
| Overall Width (Imperial) | 0.984 in, 11.811 in, 19.685 in |
| Overall Width (Metric) | 25 mm, 300 mm, 500 mm |
Resources

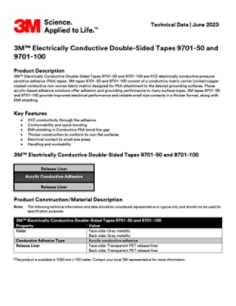

3M™ Electrically Conductive Double-Sided Tapes 9701-50, 9701-100Data Sheets
(PDF, 153KB)
