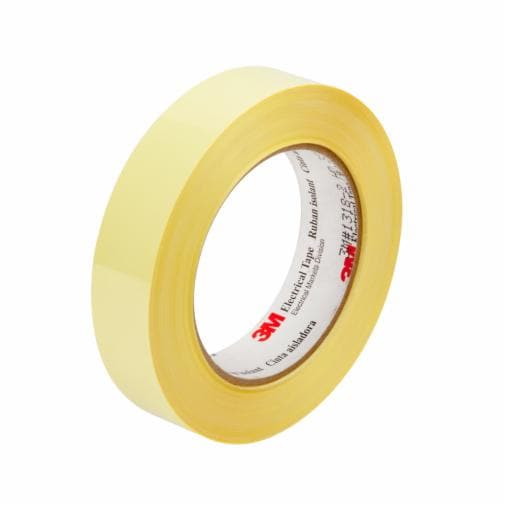

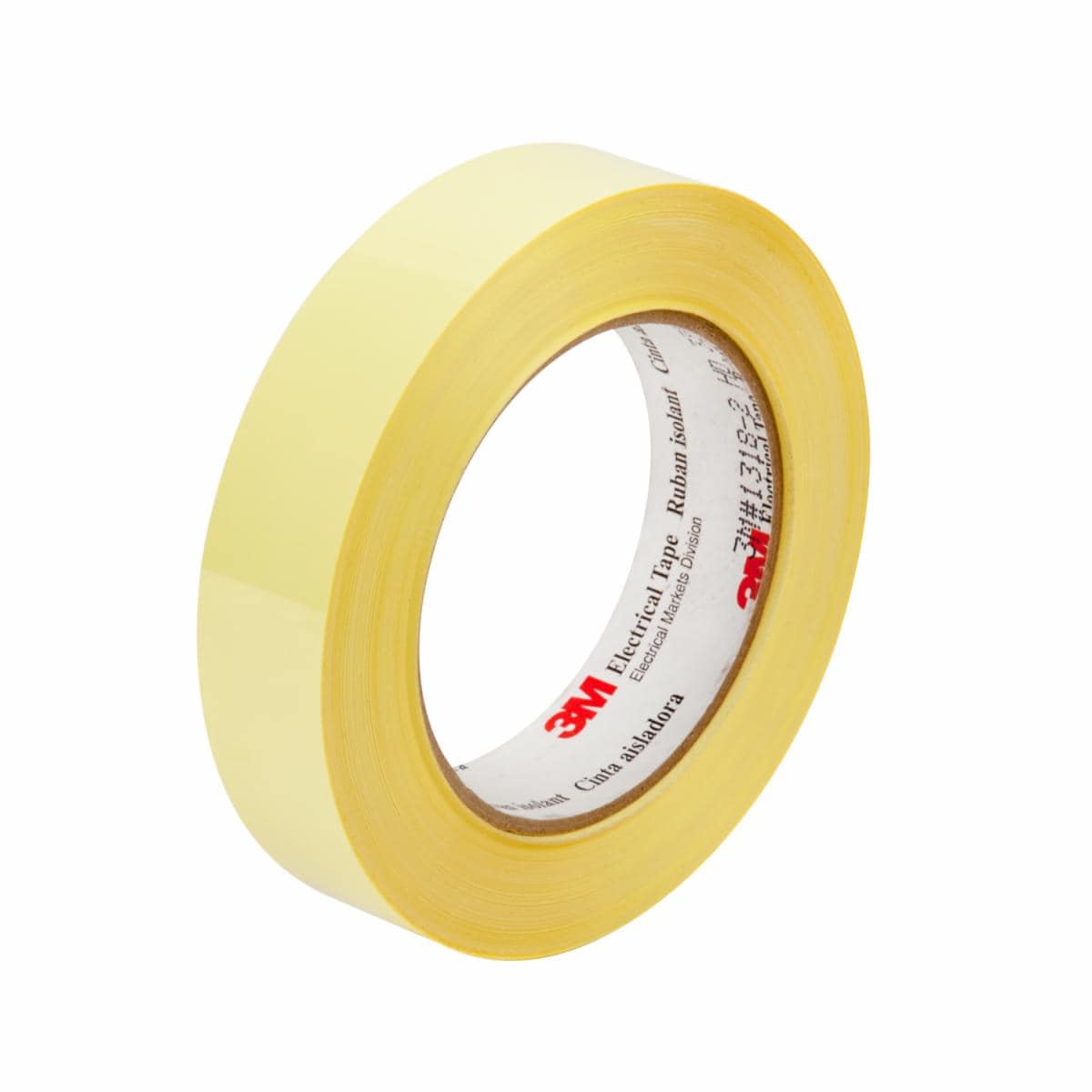

3M™ Polyester Film Electrical Tape 1350F-2, Yellow, 1/2 in x 72 yd, 3-in core, 24 Rolls/Case

  • 3M ID 7100088176
  • UPC 00051128579534

1-Mil Thick

1-Mil Thick

Printable

View more details
Frequently viewed resources
PDF (1) Copy 26Tech Data Sheet (PDF, 366KB)

Details

Highlights
  • 1-Mil Thick
  • 1-Mil Thick
  • Printable
  • Solvent resistant without thermosetting
  • Excellent shelf life
  • UL Recognized flame retardant
  • UL Recognized Class 130°C/CSA

3M™ 1350F-2 Tape is an electrical insulating polyester film tape, which meets the flame-retardancy requirements of UL 510. It consists of materials that are represented in many UL Recognized Insulation Systems and has a UL 130°C temperature rating. It also offers excellent flagging and solvent resistance; good wet grab; smooth, even unwind and is suitable for use on automated equipment.

Typical properties

Resources

Similar products

Adhesive Type Acrylic
Backing (Carrier) Material Polyester
Brands 3M™
Dielectric Strength 7000 V
Electrolytic Corrosion Factor 1.0
Elongation at Break 110.0 %
Insulation Resistance 1 x 10^6 megohms
Maximum Operating Temperature (Celsius) 130 ℃
Overall Length (Imperial) 164 yd
Overall Length (Metric) 50 m
Overall Width (Imperial) 0.5 in
Overall Width (Metric) 12.7 mm
Product Color Yellow
Specifications Met CSA Certified, RoHS 2011/65/EU, UL Recognized
Total Tape Thickness without Liner (Imperial) 3.5 mil
Total Tape Thickness without Liner (Metric) 0.089 mm
For industrial/occupational use only. Not for consumer sale or use.

3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use.  Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice.  Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage.  For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.
