3M™ DBI-SALA® Rollgliss™ 3:1 Rescue Positioning Device
- | Select product options for IDs.
Details
Highlights

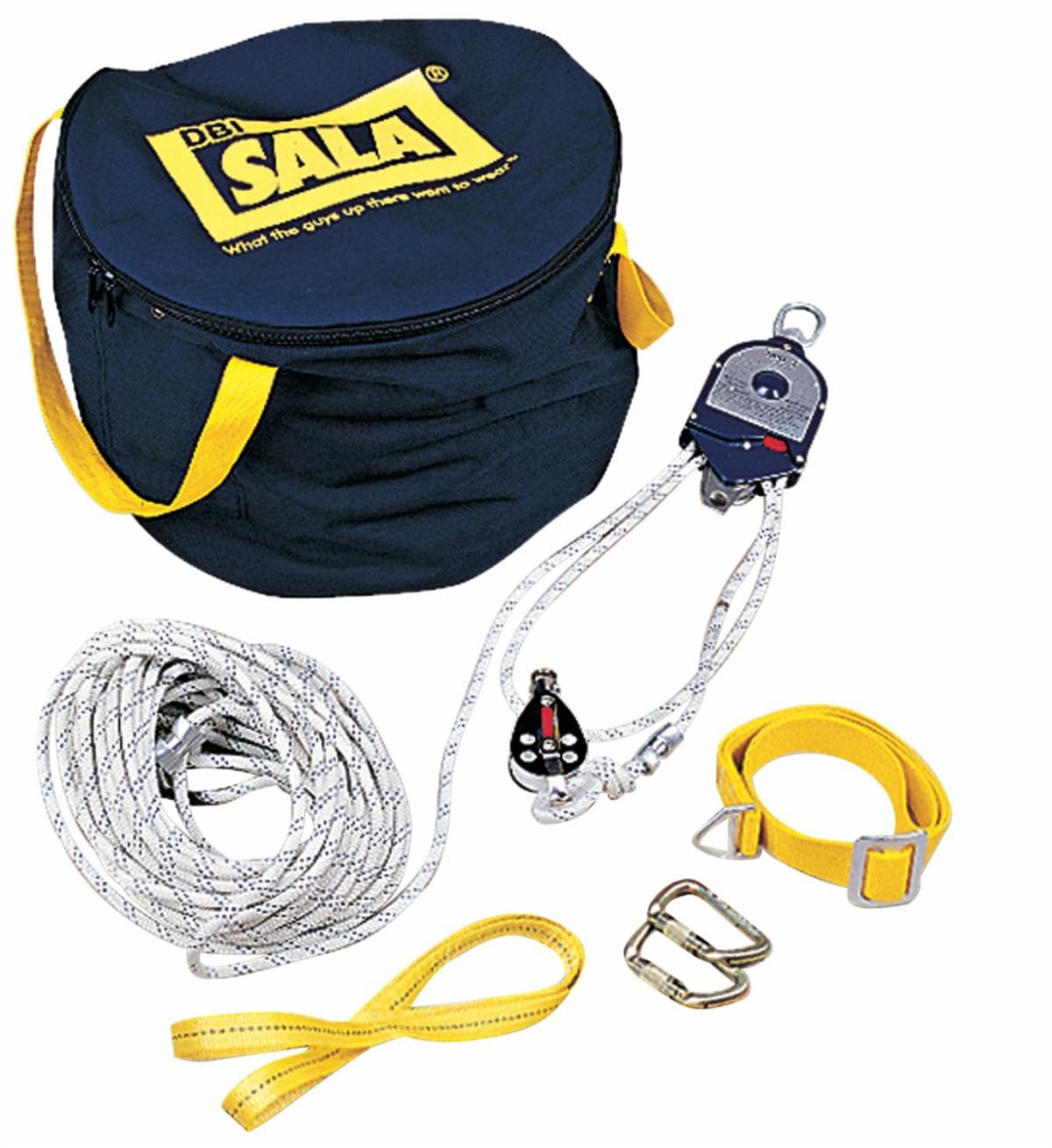

- Rescue and positioning kit with pulley, two anchor slings, two carabiners, and carrying bag
- Designed for raising, lowering, and positioning
- 3/8 in. (9.5 mm) kernmantle rope lifeline comes in varying lengths: 50 ft. (15.2 m), 100 ft. (30.5 m), 150 ft. (45.7 m), 200 ft. (61.0 m), and 400 ft. (121.9 m)
- Manual control makes the ascent and descent smooth and secure
- 3:1 lifting ratio configuration (4:1 also available)
- Pre-rigged system with unique speed-sensing braking mechanism makes the job more efficient
- Integrated lock-out mechanism allows user to start and stop from anywhere
- Corrosion-resistant construction is compact but strong
- Recommended for use in the construction, transportation, mining, and utilities industries
Durable and versatile, the 3M™ DBI-SALA® Rollgliss™ RPD Rescue Positioning Device with a 3:1 lifting ratio is designed for personal rescue operations and positioning for everyday industrial work. Including secure anchor straps, rope pulleys, 3/8 in. kernmantle rope, and durable carabiners that fit in a compact carrying bag, this pre-rigged rescue system offers easy storage and no special tools to operate efficiently. Fall protection equipment can save workers by lowering or raising them out of danger, or it can precisely place workers at any level and lock them in.
Positioning or rescue work To put a worker at just the right level for a task in mid-air, or save a trapped or suspended worker who needs help, this reliable rescue and positioning system brings versatility to any jobsite. Equipped with tough kernmantle rope and pulley, a pair of carabiners, and super-strong anchor slings, it's ready for any situation and challenge. Built to withstand tough jobs A corrosion-resistant, weather-resistant construction and compact, durable design allows skilled pros to work with peace of mind. Distractions are minimized when they know they can trust this dependable rescue tool on the most difficult jobs. A 3:1 lifting ratio produces the power required to position workers in place or take them out of harm's way. Easy to use A speed-sensing brake lets users quickly and easily start and stop during manual raising and lowering, helping to reduce the chance of injury.
Typical properties
| Case Quantity | 1 |
| CoWorker Controlled Ascent | Yes |
| CoWorker Controlled Descent | Yes |
| Connected Safety ID Equipped | Yes |
| Descent Type | Vertical |
| Dimensions | 11.40x3.80x25.40cm, 4.50x1.50x10.00in |
| Lifeline Material | Kernmantle, Braided Polyester Cover with Nylon Filament Core |
| Maximum Number of Users | Two |
| Net Weight (Imperial) | 17.6 lb, 34.2 lb |
| Net Weight (Metric) | 8 kg |
| Product Color | Blue |
| Product Series | Rollgliss™ RPD |
| Product Type | Rescue Positioning Device - 3:1 Ratio |
| Recommended Industry | Transportation, Construction, Oil & Gas, Utilities, Mining, Wind Energy, General Industrial |
| Specifications Met | ANSI Z117.1, ANSI Z117.1-1995, OSHA 1910.146 |
| User Controlled Ascent | Yes |
| User Controlled Descent | Yes |
| Weight (Imperial) | 17.6 lb, 26.5 lb, 34.2 lb, 42.7 lb, 78.7 lb |
| Weight (Metric) | 8 kg, 12 kg |
| Weight Capacity | 1 Person = 350 lbs. (158.8 kg), 2 Person = 500 lbs. (226.8 kg) |
| Weight Capacity (Imperial) | 500 lb |
| Weight Capacity (Metric) | 226.8 kg |
| Overall Length (Imperial) | 50 ft, 100 ft, 150 ft, 200 ft, 400 ft |
| Overall Length (Metric) | 15 m |
