3M™ Bumpon™ Protective Products SJ5532

  • Options available
  • | Select product options for IDs.

All 3M™ Bumpon™ Protective Products feature a urethane composition

Easy application with 3M pressure-sensitive adhesives

High skid-resistance

View more details
Frequently viewed resources
PDF (1) Copy 26Tech Data Sheet (PDF, 319KB)
icn_down_arrow

Select product options

Details

Highlights
  • All 3M™ Bumpon™ Protective Products feature a urethane composition
  • Easy application with 3M pressure-sensitive adhesives
  • High skid-resistance
  • Won't scratch or stain surfaces
  • Reduces vibration and noise
  • Will not crack or harden

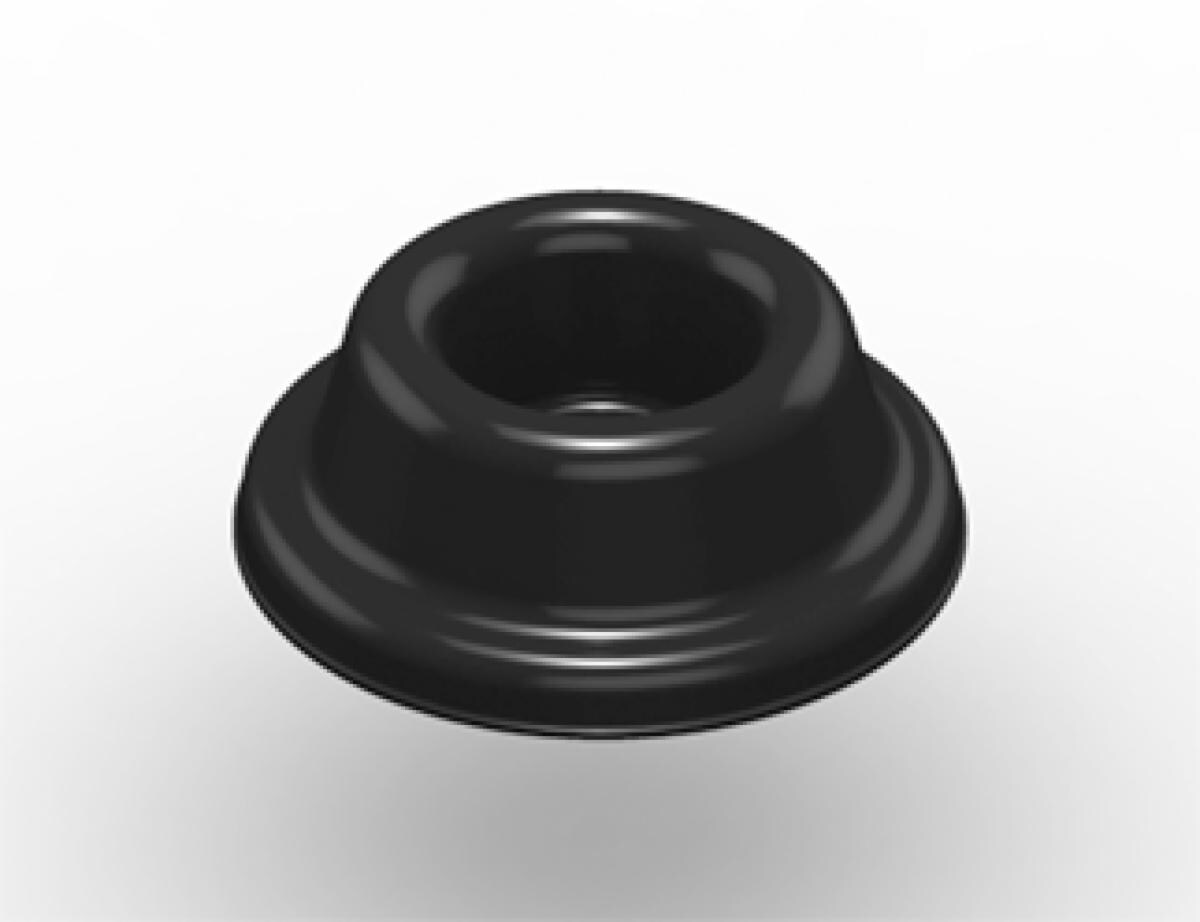

3M™ Bumpon™ Protective Product SJ5532 is a self-adhesive rubber bumper designed to be used as feet, stops and spacers. The cylindrical - concave top used in custom applications.

Typical properties

Adhesive Type

Natural Rubber (R30)

Application

Door Knob Stops

Availability

Stocked

Backing Material

Polyurethane

Factory ISO Certification

No ISO Certification information available

Hardness

72 Shore M

Height-Thickness Range

0.600 - 0.699 in

Height-Thickness Range (Metric)

10.0 - 19.9 mm

Primary Liner

Translucent Polyester Film

Product Color

Black, Gray

Product Form

Molded

Product Series

SJ5532

Product Type

Bumper

Shape

Cylindrical with Concave Top

Width-Diameter Range

1.00 - 1.99 in

Width-Diameter Range (Metric)

40.0 - 49.9 mm

Overall Diameter (Imperial)

1.88 in

Overall Diameter (Metric)

47.8 mm

Overall Height (Imperial)

0.66 in

Overall Height (Metric)

16.8 mm

Overall Length (Imperial)

1.875 in

Overall Length (Metric)

47.63 mm

Overall Width (Imperial)

0.66 in

Overall Width (Metric)

16.76 mm
