3M™ Bumpon™ Protective Products SJ5518
- | Select product options for IDs.
Details
Highlights
- All 3M™ Bumpon™ Protective Products feature a urethane composition
- Easy application with 3M pressure-sensitive adhesives
- High skid-resistance
- Won't scratch or stain surfaces
- Reduces vibration and noise
- Will not crack or harden

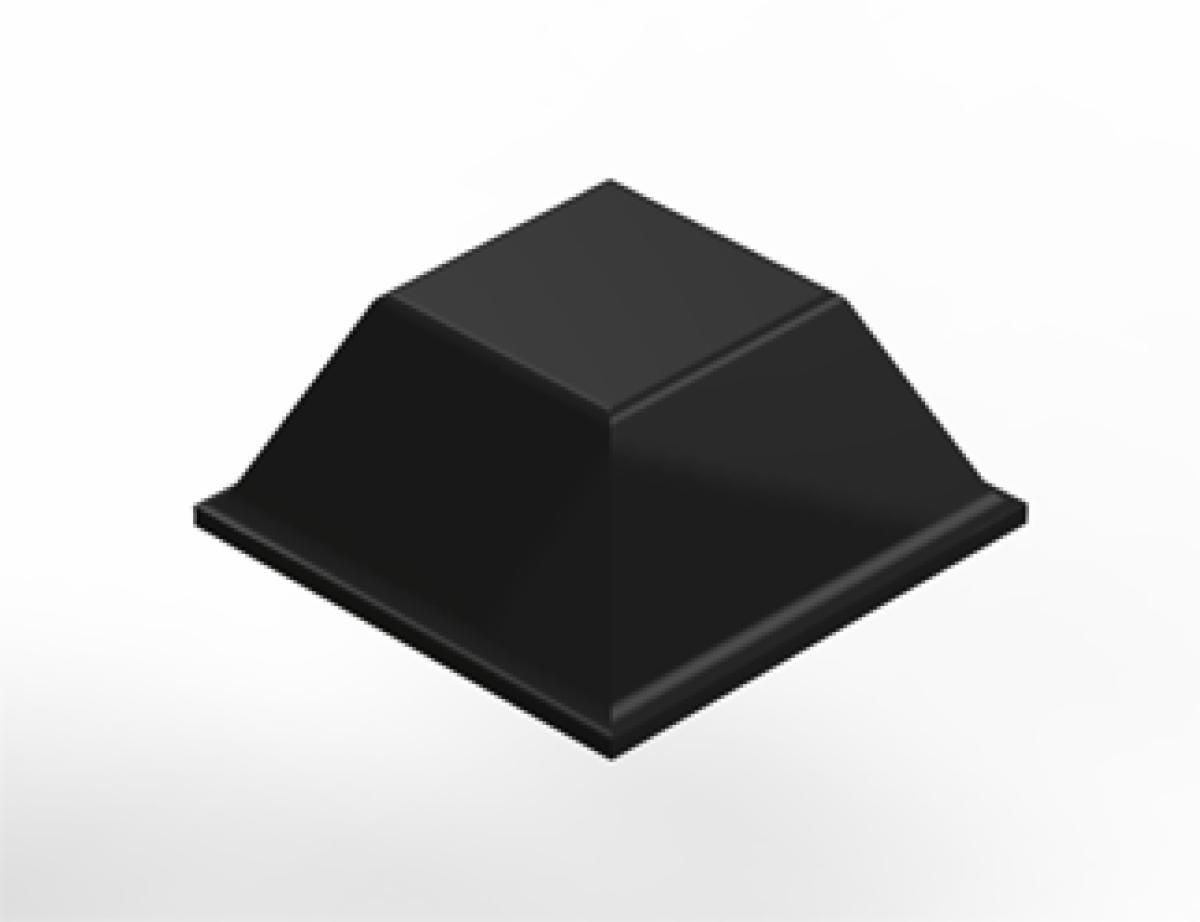

3M™ Bumpon™ Protective Product SJ5518 is a self-adhesive rubber bumper designed to be used as feet, stops and spacers. The flat top shape provides increased load bearing capacity and better wear resistance.
Typical properties
| Adhesive Type | Natural Rubber (R30) |
| Application | Heavier Appliances/Electronic Device Feet - Anti-Skid |
| Availability | Stocked |
| Backing Material | Polyurethane |
| Base Width | 0.500 in |
| Base Width (Metric) | 12.7 mm |
| Hardness | 72 Shore M |
| Height-Thickness Range | 0.200 - 0.299 in |
| Height-Thickness Range (Metric) | 5.0 - 5.9 mm |
| Primary Liner | Translucent Polyester Film |
| Product Color | Gray, Black |
| Product Form | Molded |
| Product Series | SJ5518 |
| Product Type | Bumper |
| Shape | Square-Tapered w/ Flat Top |
| Width-Diameter Range | 0.500 - 0.599 in |
| Width-Diameter Range (Metric) | 10.0 - 19.9 mm |
| Overall Height (Imperial) | 0.23 in |
| Overall Height (Metric) | 5.8 mm |
| Overall Length (Imperial) | 0.5 in |
| Overall Length (Metric) | 12.7 mm |
| Overall Width (Imperial) | 0.23 in |
| Overall Width (Metric) | 5.84 mm |
Resources
Data Sheets
(PDF, 319KB)
Legal disclaimer
Product Disclaimer
The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes.
3M products shown on this website may not be available in all geographic regions or may not be available at this time. Please contact your local sales representative to determine product availability.
