3M™ Bumpon™ Protective Products SJ5402
- | Select product options for IDs.
Details
Highlights
- All 3M™ Bumpon™ Protective Products feature a urethane composition
- Easy application with 3M pressure-sensitive adhesives
- High skid-resistance
- Won't scratch or stain surfaces
- Reduces vibration and noise
- Will not crack or harden

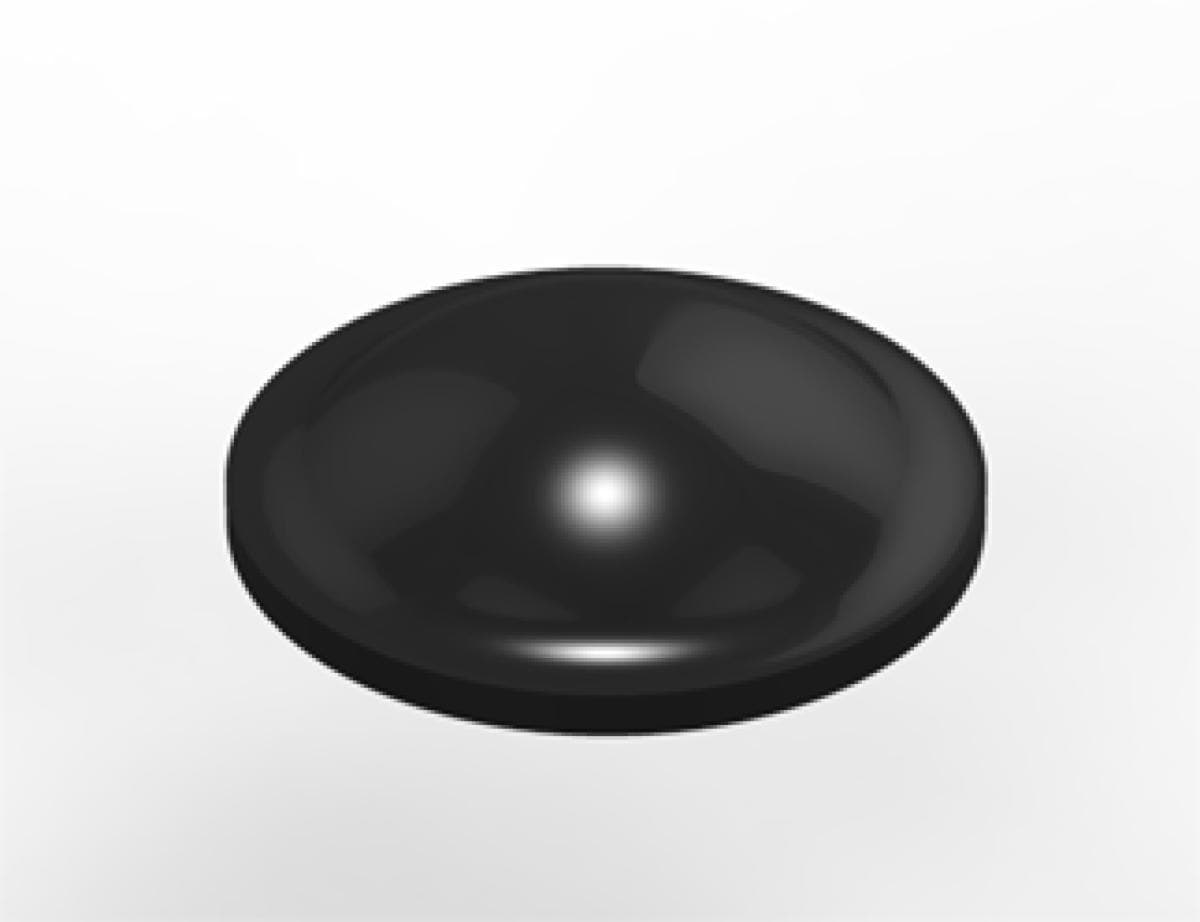

3M™ Bumpon™ Protective Product SJ5402 is a self-adhesive rubber bumper designed to be used as feet, stops and spacers. The hemispherical shape provides excellent sound damping and energy absorption.
Typical properties
| Adhesive Type | Acrylic (A20) |
| Application | Small Electronic Device Cushioning Stops, Small Electronic Device Feet |
| Availability | Make to Order |
| Backing Material | Polyurethane |
| Hardness | 75 Shore M |
| Height-Thickness Range | 0.001 - 0.099 in |
| Height-Thickness Range (Metric) | 2.0 - 2.9 mm |
| Primary Liner | Translucent Polyester Film |
| Product Color | Black, White |
| Product Form | Molded |
| Product Series | SJ5402 |
| Product Type | Bumper |
| Shape | Circular-Hemisphere |
| Width-Diameter Range | 0.300 - 0.399 in |
| Width-Diameter Range (Metric) | 1.0 - 9.9 mm |
| Overall Diameter (Imperial) | 0.312 in |
| Overall Diameter (Metric) | 7.9 mm |
| Overall Height (Imperial) | 0.085 in |
| Overall Height (Metric) | 2.2 mm |
| Overall Length (Imperial) | 0.312 in |
| Overall Length (Metric) | 7.9 mm |
| Overall Width (Imperial) | 0.085 in |
| Overall Width (Metric) | 2.2 mm |
Resources
3M™ Bumpon™ Protective Products Molded Shapes, Colored and ClearData Sheets
(PDF , 319KB)
