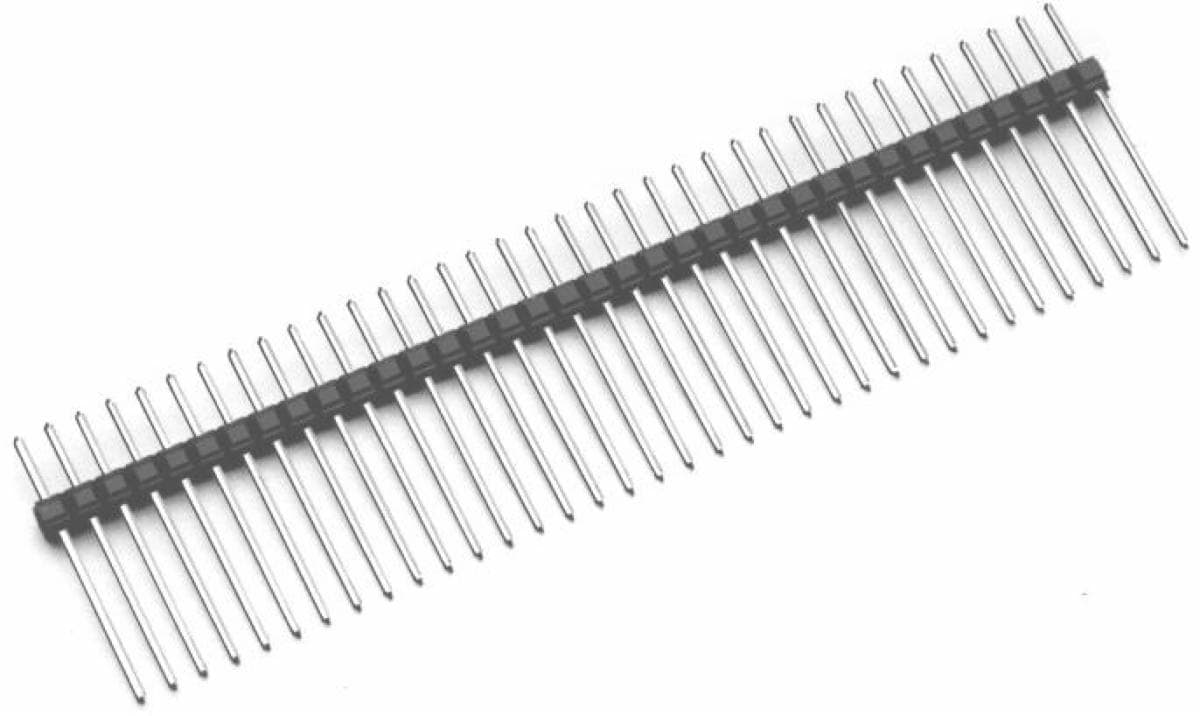

3M™ Pin Strip Header, 929 Series
- 3M Product Number 929 Series
- 3M ID B5005028016
- UPC 00051111664636
Details
Highlights
- Versatile header available in single- and dual-row versions
- Solder stand-off excellent for wave soldering in stacked applications
- Available with board pin retention
- High Temperature (PCT) plastic insulator for wave or IR soldering
- Vertical or right angled options
The 3M™ Pin Strip Header, 929 Series is very versatile, with single- and dual-row options for board-to-board and wire-to-board connections. A solder stand-off is excellent for stacked configurations and optional board pin retention helps maintain secure connections.
Available in vertical and right angle options, 3M™ Pin Strip Header, 929 Series withstands high temperatures for wave or IR soldering.
Typical properties
| Application | Board-to-board Connecting, Wire-to-board Connecting |
| Connector Shape | Rectangular |
| Connector Style | Pin Header, Header, Plug |
| Contact Base Material | Copper Alloy |
| Contact Termination Area Plating Material | None |
| Contact Underplating Material | Nickel |
| Contact Underplating Thickness (Imperial) | 30 µin, 50 µin |
| Contact Underplating Thickness (Metric) | 0.76 µm, 1.27 µm |
| Current Rating | 2.5 A |
| Features | Breakaway |
| Insulation Color | Black |
| Insulation Height (Imperial) | 0.1 in, 0.11 in, 0.115 in, 0.215 in |
| Insulation Height (Metric) | 2.54 mm, 2.79 mm, 2.92 mm, 5.45 mm |
| Insulation Material | PCT, Glass Filled Polyester (PBT), Glass Filled Nylon, Glass Filled Polyester (PBT) or High Temperature (PCT) |
| Insulation Resistance | >1x10⁹ Ω @ 500 VDC, >5x10⁹ Ω @ 500 VDC |
| Latch/Ejector Type | Push-in/Pull-out |
| Mating Contact Finish Material | Gold, Tin |
| Mating Contact Finish Thickness (Imperial) | 10 µin |
| Mating Contact Finish Thickness (Metric) | 0.25 µm |
| Mating Option | Board to Board |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 221 ℉ |
| Minimum Operating Temperature (Celsius) | -55 ℃, -40 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -67 ℉, -40 ℉ |
| Moisture Sensitivity Level | 1 (Per J-STD-020C) (PCT Insulator Version Only) |
| Mounting Option | Mounting Flanges - 4-40 Threaded |
| Number of Contact Rows | 1 , 2 |
| Number of Contacts | 2 , 3 , 6 , 7 , 8 , 12 , 36 , 72 |
| Orientation | Horizontal, Vertical |
| PCB Mounting Angle | Right Angle |
| PCB Mounting Style | Through Hole |
| Pitch (Imperial) | 0.079 in |
| Pitch (Metric) | 0.1 mm |
| Post Contact Finish Material | Tin, Gold |
| Product Series | 929 |
| Shroud Style | Unshrouded |
| Specifications Met | UL 94V-0 |
| Tech Sheet Number | TS-0769 |
| Voltage Rating | 1500 Vrms at Sea Level |
