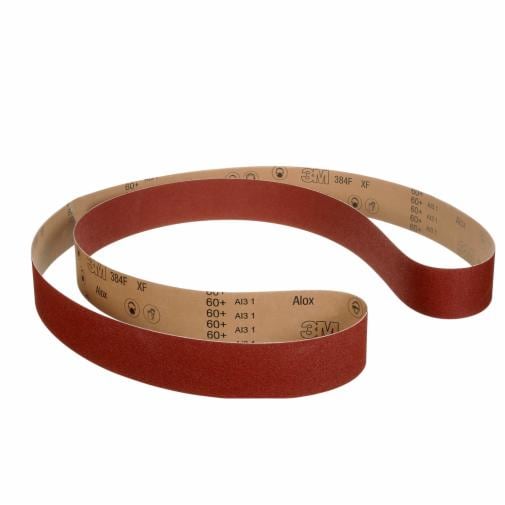

3M™ Cloth Belt 384F

Options available
| Select product options for IDs.

General purpose belt delivers consistent, reliable performance on a wide range of substrates

Polyester waterproof backing holds up for wet and dry applications

XF-weight cloth backing withstands grinding and heavy sanding

Frequently viewed resources

Safety Data Sheet (PDF)

Overall Width (Imperial)

Overall Width (Metric)

Overall Length (Imperial)

Overall Length (Metric)

Grit

Select product options

Details

Highlights

General purpose belt delivers consistent, reliable performance on a wide range of substrates
Polyester waterproof backing holds up for wet and dry applications
XF-weight cloth backing withstands grinding and heavy sanding
Resin bond withstands high heat and pressure
Aluminum oxide abrasive mineral offers reliable performance and performs well on many substrates
Suitable for use on a backstand or benchtop belt sander and for stroke sanding, portable belt grinding, and wide belt grinding and finishing
Choose from grades 36+ to 220+ and P320 to P400

3M™ Cloth Belt 384F is a general-purpose aluminum oxide cloth-backed belt recommended for metal deburring, general metalworking, and some woodworking applications. It is optimized for use on mild steel and carbon steel, and is also effective on softer metals like aluminum, bronze and brass.

Operator using an abrasive belt on a file belt sander

Multiuse belt delivers consistent performance on all metals

Consistent, Reliable Performance
Our 3M™ Cloth Belt 384F contains fast-cutting aluminum oxide abrasive grains resin-bonded to a durable XF-weight polyester cloth backing to provide you with the continuous cut and long-life performance necessary for more aggressive metalworking applications. For finishing on metal, the closed coat construction offers a consistent, fine finish, and is suitable for producing a grain pattern. The backing is waterproof to support both wet and dry applications.

Fast-Cutting Grain with Durable Construction
Aluminum oxide mineral is a popular choice among industrial professionals because of its cut-rate, durability, and long life. It can be used on a wide variety of materials in both woodworking and metalworking, including ferrous alloys, and is the most commonly used industrial abrasive. The abrasive particles are adhered to the cloth backing with resin, creating a strong bond that withstands high heat and pressure. These attributes make it suitable for gate grinding and weld removal, as well as deburring and finishing applications.

Operator using an abrasive belt on a metal workpiece

Suitable for use on a backstand or benchtop belt sander

3M Engineered for Optimal Performance
3M Abrasives engineers know abrasive belt construction. For more than 100 years 3M has been a leading abrasive supplier of the metalworking and woodworking industries. We offer a complete line of high-quality metalworking abrasive solutions to meet your tough jobs. 3M engineers developed 3M™ Cloth Belt 384F with increased cut and durability for top performance on general purpose sanding and grinding applications. It is yet another example of how 3M science provides improved solutions for industrial applications.

Typical properties

Details

Abrasive Material	Aluminum Oxide
Application	Grinding, Deburring, Finishing, Polishing
Backing Material	Polyester Cloth, Cloth, Polyester
Backing Weight	XF Weight
Bond Type	Resin
Brands	3M™
Equipment - Machines	Manual Backstand
Flex Type	Single-flex
For Use On	Aluminum, Cast Iron, Carbon Steel, All Metals
Grit	36+, 50+, 60+, 80+, 120+, 150+, 180+, 220+, 240+, P320, P400
Product Color	Maroon
Product Form	Belt
Splice Type	Fabri-lok, Film-lok, Sine-lok, Lap Skived
Sub Applications	Weld Grinding
Wet or Dry	Wet or Dry

Dimensions and Classifications

Overall Length (Imperial)	12 in, 13 in, 18 in, 20.5 in, 21 in, 24 in, 30 in, 42 in, 48 in, 60 in, 75 in, 103 in, 118 in, 132 in, 138 in, 160 in, 264 in, 354 in
Overall Length (Metric)	304.8 mm, 330.2 mm, 457.2 mm, 520.7 mm, 533.4 mm, 609.6 mm, 762 mm, 1066.8 mm, 1219.2 mm, 1524 mm, 1828.8 mm, 1905 mm, 2616.2 mm, 2997.2 mm, 3352.8 mm, 3505.2 mm, 4064 mm, 6705.6 mm, 8991.6 mm
Overall Width (Imperial)	0.125 in, 0.25 in, 0.375 in, 0.5 in, 0.75 in, 1 in, 1.125 in, 2 in, 2.5 in, 2.75 in, 3 in, 4 in, 5 in, 6 in, 18 in, 37 in, 43 in, 52 in
Overall Width (Metric)	3.175 mm, 6.35 mm, 9.525 mm, 12.7 mm, 19.05 mm, 25.4 mm, 28.575 mm, 50.8 mm, 63.5 mm, 69.85 mm, 76.2 mm, 101.6 mm, 127 mm, 152.4 mm, 939.8 mm, 1092.2 mm, 1320.8 mm

Resources

3M™ Abrasive Products, 384F 36+ - 240+

Safety Data Sheets

Document Number: MSDS_3524022_US_EN

(PDF)
