3M™ Double Coated Tissue Tape 9456

Options available
| Select product options for IDs.

5 mil double coated tape with tissue carrier adds dimensional stability for handling

Good adhesion to high surface energy (HSE) materials

Good temperature, chemical and humidity resistance

Overall Width (Imperial)

Overall Width (Metric)

Overall Length (Imperial)

Overall Length (Metric)

Details

Highlights

5 mil double coated tape with tissue carrier adds dimensional stability for handling
Good adhesion to high surface energy (HSE) materials
Good temperature, chemical and humidity resistance
Range of uses – joining and bonding in general industrial applications
55# densified kraft (DK) paper liner is compatible with rotary die cutting

3M Double Coated Tissue Tape 9456 is a high tack acrylic adhesive with good adhesion to many plastics and other high surface energy (HSE) materials. It can be used for end-tabbing, bonding fabric to rigid cardboard, attaching foam to plastics and closing chipboard mailers.

Light Carrier, High Tack
The 3M™ Double Coated Tissue Tape 9456 is a 5.0 mil tape with a 340 high tack acrylic adhesive that delivers a good bond for attaching foam to plastics and other substrates. This tape also has a tissue carrier for dimensional stability and improved handling, while still maintaining the flexibility of a free film adhesive. The tissue carrier is on a 3.2 mil 55-lb. densified Kraft DK paper liner. Use this tape in a variety of applications, especially those requiring adhesion to high surface energy (HSE) materials.

Recommended Applications

End-tabbing
Bonding fabric to rigid cardboard
Attaching foam to plastics
Closing chipboard mailers
Joining and bonding in general industrial applications

About 3M™ Adhesive 340
Like other 3M™ Double Coated Tapes offered by 3M, this product uses our Adhesive 340, which delivers a combination of high initial adhesion, good shear strength and holding power when applied to a wide variety of materials, including plastics and foams. Additionally, the 340 adhesive in our 3M™ Double Coated Tissue Tape 9456 provides excellent chemical and thermal resistance and can be used in a wide range of temperatures and demanding work conditions. Use this tape in temperatures ranging from -40°F (-40°C) to 150°F (66°C). Collectively, these features make our tape an excellent option for a number of applications across many industries, including: paper, converter solutions, automotive, medical, general industrial, retail, print, point of purchase and packaging.

Hands putting “Employees Only” sign on a door using double coated tape

3M™ Double Coated Tapes with 3M™ Adhesive 340 provide a combination of high initial adhesion and good shear holding power

What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that is removed at the time of application. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in electronics, automotive, aerospace, general industrial, and fabrication markets.

Compare More 3M Double Coated Tapes for Labeling and Graphics Solutions (PDF, 26.89 Mb)

Bringing Better Ideas to the Surface through Science
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.

Find More 3M Industrial Adhesives and Tapes (PDF, 12.29 Mb)

Typical properties

Details

Adhesive Type	Adhesive 340
Back Side Adhesive Thickness (Imperial)	2 mil
Back Side Adhesive Thickness (Metric)	0.05 mm, 0.051 mm
Back Side Adhesive Type	High Tack Acrylic Adhesive 340
Backing (Carrier) Material	Tissue
Brands	3M™
Face Side Adhesive Thickness (Imperial)	2 mil
Face Side Adhesive Thickness (Metric)	0.05 mm, 0.051 mm
Face Side Adhesive Type	High Tack Acrylic Adhesive 340
Indoor/Outdoor	Indoor/Outdoor
Industries	Retail, Packaging, Medical, Converter Solutions, General Industrial, Automotive, Point of Purchase, Print, Paper
Maximum Operating Temperature (Celsius)	82 ℃
Maximum Operating Temperature (Fahrenheit)	180 ℉
Minimum Operating Temperature (Celsius)	-40 ℃
Minimum Operating Temperature (Fahrenheit)	-40 ℉
Primary Liner	55# Densified Kraft Paper (DK)
Primary Liner Color	White
Primary Liner Thickness (Imperial)	3.5 mil
Primary Liner Thickness (Metric)	0.09 mm
Product Color	Transparent
Product Form	Roll
Smallest Saleable Unit	Roll
Total Tape Thickness without Liner (Imperial)	4 mil
Total Tape Thickness without Liner (Metric)	0.1 mm
Units per Case	24.0, 36.0, 48.0, 72.0

Dimensions and Classifications

Overall Length (Imperial)	72 yd, 180 yd
Overall Length (Metric)	65.83 m, 65.84 m, 164.59 m
Overall Width (Imperial)	0.5 in, 0.75 in, 1 in, 2 in, 54 in
Overall Width (Metric)	12.7 cm, 19.05 mm, 25.4 mm, 50.8 mm, 137 mm

Resources

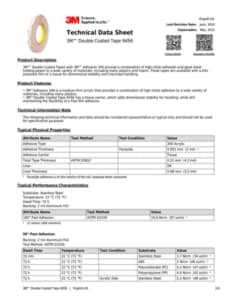

3M™ Double Coated Tape 9456

Other

(PDF, 100KB)
