3M™ Double Coated Film Tape 9589 features a high-density polyethylene carrier with synthetic rubber adhesive on a densified kraft paper liner. It combines high initial adhesion and good holding power to ensure it bonds to a variety of materials. The paper liner has been specially treated to improve its strength and removability characteristics.
Long-Lasting Performance
Our 3M™ Double Coated Film Tape 9589 is a 9.0 mil double coated tape with a high tack synthetic rubber adhesive on a high density polyethylene (HDPE) carrier. 3M™ Adhesive 760 provides excellent quick stick and bonds together a wide variety of materials, with a build-up over 24 hours that allows for proper placement of bonded materials. It features excellent adhesion to both high surface energy and low surface energy substrates and is an excellent choice for many indoor and room temperature applications such as carpet installation. The HDPE carrier adds dimensional stability to aid in removal while also providing easier handling during slitting, lamination and die cutting, and it tears by hand for quick and easy application. The tape is mounted on a 3.7 mil 62 lb. densified kraft paper liner which has been specially treated to improve strength and removability from high internal strength surfaces. This tape can withstand short-term temperatures of up to 200°F.
Recommended Applications
Bringing Better Ideas to the Surface Through Science and Innovation
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.
| Adhesive Type | Synthetic Rubber |
| Back Side Adhesive Thickness (Imperial) | 3 mil |
| Back Side Adhesive Thickness (Metric) | 0.076 mm, 0.08 mm |
| Back Side Adhesive Type | Synthetic Rubber Adhesive 760 |
| Backing (Carrier) Material | HDPE |
| Backing (Carrier) Thickness (Imperial) | 0.178 mil |
| Backing (Carrier) Thickness (Metric) | 0.076 mm |
| Brands | 3M™ |
| Carrier Material | High Density Polyethylene HDPE |
| Carrier Thickness | 0.17847 mil |
| Carrier Thickness (Metric) | 0.08 mm |
| Core Size (Imperial) | 3 in |
| Core Size (Metric) | 76.2 mm |
| Face Side Adhesive Thickness (Imperial) | 3 mil |
| Face Side Adhesive Thickness (Metric) | 0.076 mm, 0.08 mm |
| Face Side Adhesive Type | Synthetic Rubber Adhesive 760 |
| Indoor/Outdoor | Both |
| Industries | Converter Solutions, General Industrial, Construction, Craft, Signage, Metalworking, Food and Beverage, Packaging, Print, Point of Purchase |
| Master Size Length (Imperial) | 144 Linear Yard |
| Master Size Length (Metric) | 131.7 m |
| Master Size Width (Imperial) | 26 in |
| Master Size Width (Metric) | 66 cm |
| Maximum Operating Temperature (Celsius) | 49 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 120 ℉ |
| Minimum Operating Temperature (Celsius) | -40 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -40 ℉ |
| Number of Adhesive Sides | Double-sided |
| Primary Liner | 62# Densified Kraft Paper (DK) |
| Primary Liner Color | White/Green |
| Primary Liner Thickness (Imperial) | 3.7 mil |
| Primary Liner Thickness (Metric) | 0.09 mm |
| Product Color | White |
| Product Form | Roll |
| Smallest Saleable Unit | Roll |
| Total Tape Thickness without Liner (Imperial) | 9 mil |
| Total Tape Thickness without Liner (Metric) | 0.228 mm |
| Units per Case | 24.0, 36.0, 48.0, 72.0 |
| Overall Length (Imperial) | 36 yd, 72 yd |
| Overall Length (Metric) | 32.91 m, 65.84 m |
| Overall Thickness (Imperial) | 3 mil |
| Overall Width (Imperial) | 0.5 in, 0.7 in, 1 in, 2 in, 26 in |
| Overall Width (Metric) | 12.7 mm, 19.05 mm, 25.4 mm, 50.7 mm, 50.8 mm, 660.4 mm |
Other

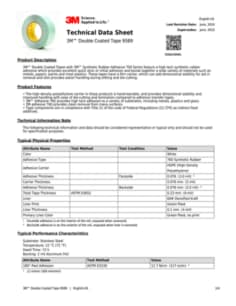

(PDF, 105KB)
Ask a 3M Expert
Thank you for your interest in 3M Industrial Adhesive & Tape solutions. A 3M Converter Markets Representative or a 3M Preferred Converter will contact you by phone or email.
Your form was submitted successfully.
An error has occurred while submitting. Please try again later...
3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.
3M™ Double Coated Tape 9589
